INSTALLATION & MAINTENANCE MANUAL
COLD CARB VENTURE
This is the Installation and Maintenance Manual for the Venture Post-Mix Dispenser with cold carbonator and
1/4 H.P. refrigeration compressor. The Venture Dispenser may be installed on a front or rear counter. A full
Installatio/Service Manual (P/N 318832000) is available upon request.
DISPENSING VALVES
KEY-LOCK SWITCH
FRONT
ACCESS PANEL
CUP
REST
DRIP
TRAY
Dimensions:
Width
Height
Depth
Weights:
Shipping Weight (approx)
Dry Weight (approx)
Ice Bank Weight (approx)
Drop-In Refrigeration Assembly
Water Tank Capacity (no ice bank) approx
E IMI Cornelius Inc; 1995- -98

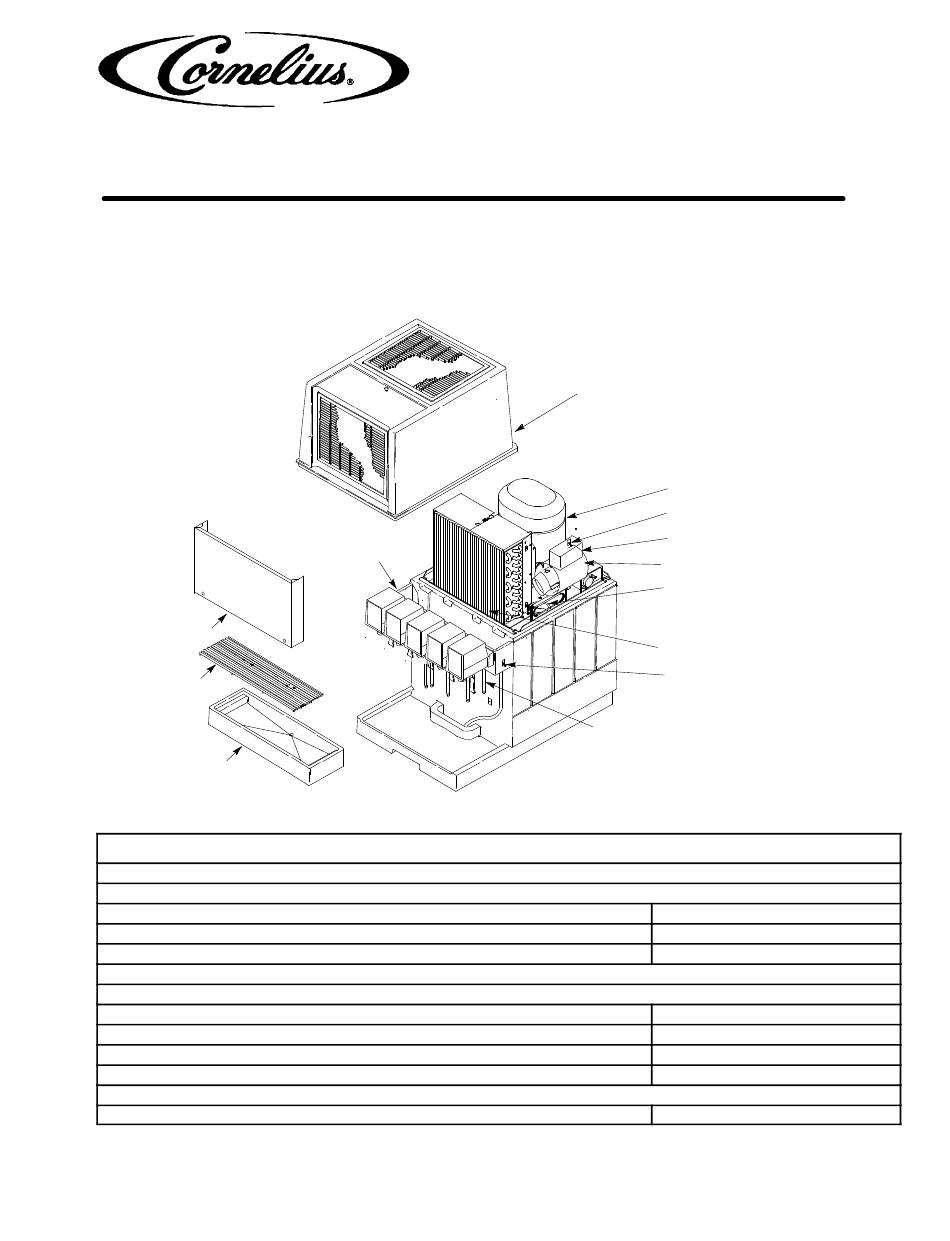

FIGURE 1. PARTS IDENTIFICATION
Design Data
Control Code B
IMI CORNELIUS INC.
One Cornelius Place
Anoka, MN. 55303-6234
Telephone (612) 421-6120
Facsimile (612) 422-3232
HOOD
COMPRESSOR
CARBONATOR SWITCH
CONTROL BOX
WATER PUMP AND MOTOR
WATER FILL HOLE PLUG
CONDENSER COIL
ON/OFF SWITCH
(ON 115 VOLT UNITS ONLY)
SYRUP STAINLESS-
STEEL INLET TUBES
Revised: January 16, 1998
16-1/4 inches
27-5/8 inches
24-1/2 inches
128 pounds
107 pounds
30 pounds
66 pounds
9-3/4 gallons
June 6, 1995
318832013
Advertisement
Table of Contents
Related Manuals for Cornelius COLD CARB VENTURE
Summary of Contents for Cornelius COLD CARB VENTURE
- Page 1 Dry Weight (approx) 107 pounds Ice Bank Weight (approx) 30 pounds Drop-In Refrigeration Assembly 66 pounds Water Tank Capacity (no ice bank) approx 9-3/4 gallons Revised: January 16, 1998 E IMI Cornelius Inc; 1995- -98 Control Code B June 6, 1995 318832013...
-
Page 3: Unpacking And Inspection
Request a written inspec- tion report from Claims Inspector to substantiate any necessary claim. File claim with the delivering carrier, not with IMI Cornelius Inc. INSTALLATION NOTE: Optional 4-inch Legs (P/N 31474400) that will elevate the Unit 4-inches above the countertop are available. - Page 4 1. Install drain hose on Unit and secure with provided clamp. 2. Route drip tray drain tube down to and connect to permanent drain. Note: The Unit syrup, water and CO source tubes may either be routed in through opening in lower back side of the Unit to location behind the front panel or tubes may be routed up through hole cut in the countertop to inside of the Unit.
- Page 5 14. Place the switch on the control box, in “ ON”position to start the carbonator motor. 15. Make sure Dispensing Valves key-lock power switch on left side of the Unit, is in the “ ON”position, then dispense from all Dispensing Valves to bleed all air from the water systems. 16.
-
Page 6: Daily Cleaning Of Unit
MAINTENANCE CLEANING AND SANITIZING DAILY CLEANING OF UNIT 1. Remove cup rest from the drip tray. 2. Wash drip tray in place on the Unit, then rinse drip tray with hot water allowing water to drain out through the drain hose. 3. - Page 7 Place waste container under applicable dispensing valve. Activate the dispensing valve for one minute to purge all syrup and flush out the syrup system. Continue to activate the dispensing valve in cycles (“ ON”for 15-seconds, “ OFF” , then “ ON”for 15-seconds).
- Page 8 16. Remove sanitizing solution source from the syrup system. 17. Allow sanitizing solution to remain in the syrup systems for not less than 10 or no more than 15-minutes (max.) contact time. STEP 4. WATER FLUSH SYRUP SYSTEMS WARNING: Flush sanitizing solution from the syrup systems as instructed. Residual sanitizing solution left in the syrup systems could create a health hazard.
-
Page 9: Checking Ice Water Bath
CLEANING REFRIGERATION SYSTEM CONDENSER COIL The refrigeration system condenser coil must be cleaned every 30 days. CHECKING ICE WATER BATH A gurgle heard from the Unit indicates water level in the water tank is low and more water should be added to the tank. - Page 10 REGULATED CO2 SUPPLY DOUBLE LIQUID CHECK VALVE CO2 CHECK BUILT- - IN VALVE CARBONATOR COOLING COILS (9) WATER PUMP PLAIN WATER NON- - CARBONATED DRINK CAPPED CROSS FITTING DISPENSER DISPENSING VALVE (6) CARBONATEDWATER MANIFOLD SYRUP SUPPLY (SYRUP TANKS OR- BAG-IN-BOX SYSTEM) LINE LEGEND PLAIN WATER CARB WATER...
