Setup and Adjustments

Powering On

Press and hold the Power Button until a status bar on
the LCD is completed. The status bar will appear on
the LCD, followed by a display of the model, firmware
version, frequency band and compatibility mode.
Hold
for
Rf On
When you release the button, the unit will be opera-
tional with the RF output turned ON and the Main
Window displayed.

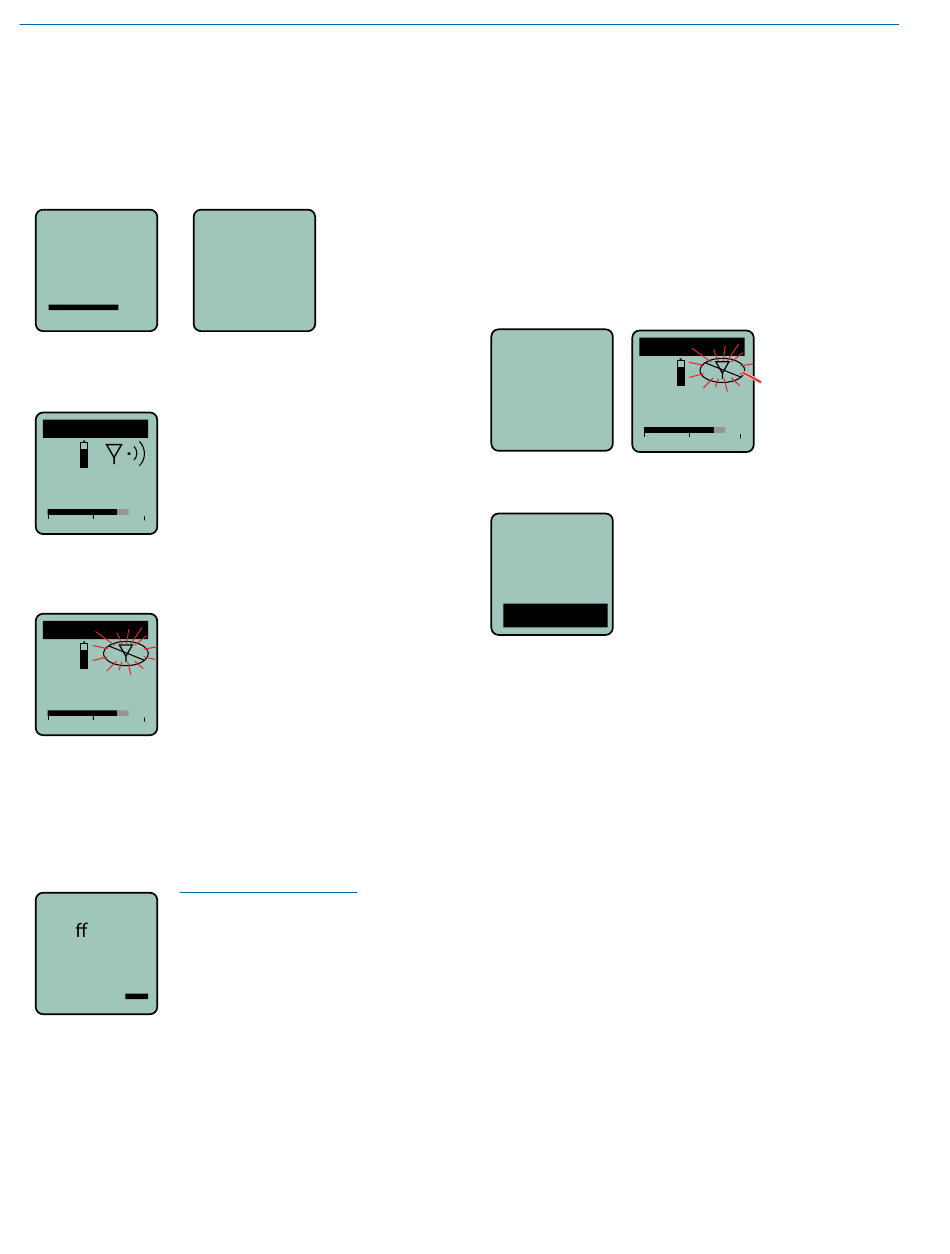

DHu
The Main Window
RF output ON
545.400
-40 -20
0
If you release the button before the countdown is com-
plete, the unit will turn on in the Standby mode with the
RF output turned OFF and the antenna icon will blink.
DHu
The Main Window
RF output OFF
545.400
-40 -20 0

Powering Off

Press and hold the Power Button (or the side button if
it is configured for turning the power on and off) while
the status bar on the LCD is completed. The power will
then be turned off. This can be done from any menu or
screen.
Powering
NOTE: If the Power Button
is released before the
O . . .
countdown is completed, the
unit will remain turned on
and the LCD will return to the
same screen or menu that
was displayed previously.
6
DHu
V1.01

Standby Mode

A brief push of the keypad Power Button turns the unit
on and places it into a "standby" mode (not transmit-
ting). Press the button and release before the status
bar completes. This allows the transmitter to be set up
without the risk of creating interference for other wire-
less systems that are operating in the vicinity.
A notice will appear briefly confirming that the RF out-
put of the transmitter is turned off, followed by the Main
Window. The antenna symbol will blink as a reminder
that the RF output is turned off.
DHu
Rf
545.400
Off
-40

Power Menu

When the transmitter is turned on, a
Resume
brief push of the Power Button on
the keypad will reveal a menu
Pwr Off
allowing you to choose between
Rf On?
Resume, Pwr Off, Rf On?, Backlit
and About.
Backlit
Use the UP/DOWN buttons to select
one of the menu items, then press the MENU/SEL but-
ton to confirm this action.
Resume: Continue operating in the same condi-
•
tion as before.
• Pwr Off: Turns off the transmitter.
• Rf On?: Begin transmitting the RF signal, enters
another screen prompting a Yes or No answer.
• Backlit: The LCD includes a backlight that illu-
minates the display for easier viewing. It is set to
come on when any button on the control panel is
pressed, then stay on for 5 seconds, 30 seconds
or stay on all the time.
• About: Displays the model, firmware version,
frequency block and compatibility mode.
The unit can also be turned off from any menu or
screen on the LCD by holding the power button in
while the status bar on the LCD is completed.
Symbol blinks
when RF output
is turned OFF
-20 0
