Catalog No. 228-9605 and 228-9605B

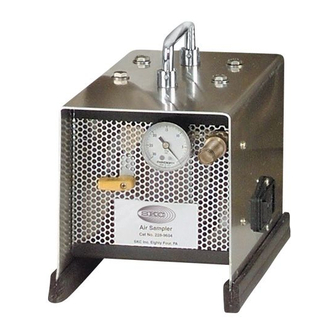

The Vac-U-Go non-compensating vacuum pump is a rotary vane-type pump
that provides flows up to 30 L/min and maintains sonic flow when used with the
BioSampler. AC-powered, the Vac-U-Go Sampling Pump can be used for a variety
of ambient and indoor air sampling applications including asbestos, bioaerosol,
stack, VOC, and fenceline monitoring. It is ideal for sampling bioaerosols using
the SKC BioSampler or the AGI-30 Impinger.
The line-operated Vac-U-Go Sampling pump has a permanently lubricated motor
that is mounted in a housing with a vacuum pressure gauge to indicate sonic flow
and a throttling valve to adjust flow. Both models are supplied with an extension
rod for mounting media and a power cord.
Performance Profile
Flow range:
Motor:
Vane life:
Power:
Operating
temperature range: 32 to 104 F (0 to 40 C)
Size:
Weight:
Standards:
Not intended for use outdoors
863 Valley View Road, Eighty Four PA 15330 USA
Non-compensated airflow up to 30 L/min
Sonic flow with BioSampler (acts as a critical orifice) is
approximately 12.5 L/min
Oil-less rotary vane
Approximately 6000 to 27,000 hrs depending on application
Line power only
115 V, AC, 60 Hz (Cat. No. 228-9605)
230 V, AC, 50 Hz (Cat. No. 228-9605B)
5.5 x 10.5 x 6.5 ins (13.9 x 26.7 x 16.5 cm)
12 lbs (5.4 kg)
None. Pump is not intrinsically safe
Operating Instructions
Sampling Pump
skctech@skcinc.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SKC Vac-U-Go 228-9605
Summary of Contents for SKC Vac-U-Go 228-9605
- Page 1 VOC, and fenceline monitoring. It is ideal for sampling bioaerosols using the SKC BioSampler or the AGI-30 Impinger. The line-operated Vac-U-Go Sampling pump has a permanently lubricated motor that is mounted in a housing with a vacuum pressure gauge to indicate sonic flow and a throttling valve to adjust flow.
- Page 2 Cautions • Pump only clean, dry air. • Protect pump from dirt and moisture. • Pump is not intended for use outdoors. • Protect surrounding items from pump exhaust air. • Use only a three-wire grounded cable. • Pump produces a high-pitched whine when operated. • Do not pump flammable or explosive gases.
- Page 3 4. Sample for the desired sampling period. 5. Turn off pump and unplug from wall outlet. 6. Package sample appropriately for shipment to a laboratory (see BioSampler Operat- ing Instructions). Note: Sonic flow is attained when a vacuum pump pulls air through an orifice to create a condi- tion where the downstream pressure is 52% of the upstream pressure.
- Page 4 Policy section in operating manual (if applicable). This warranty shall be construed under the laws of the Commonwealth of Penn- sylvania which shall be deemed to be the situs of the contract for purchase of SKC Inc. instruments. No other warranty is given by SKC Inc. in conjunction with this sale.
