Rechargeable battery
Tamper-resistant cover
prevents changes to
settings.
Recessed flow adjustment screw
adjusts flow rate between
1000 and 3000 ml/min.
Introduction
Description
The 44XRM Universal Sample Pump (Figure 1) is a constant fl ow (from 5 to 3000 ml/min) air sampler suitable for a broad range of
applications. It is ideal for industrial hygiene studies as well as environmental testing.
Required Equipment/Media
1/4-inch ID (3/8-inch OD) Tygon
®
PowerFlex
Charger and cable
Low fl ow accessories if sampling at 5 to 500 ml/min. See Accessories.
Durable RFI-shielded case
Air discharge port
provides protection from
(beneath cap screw)
radio frequency interference
between 27 and 1000 MHz.
On/Off switch
Accessory mounting screws
allow sampling accessories
such as impinger holders to be
secured to pump.

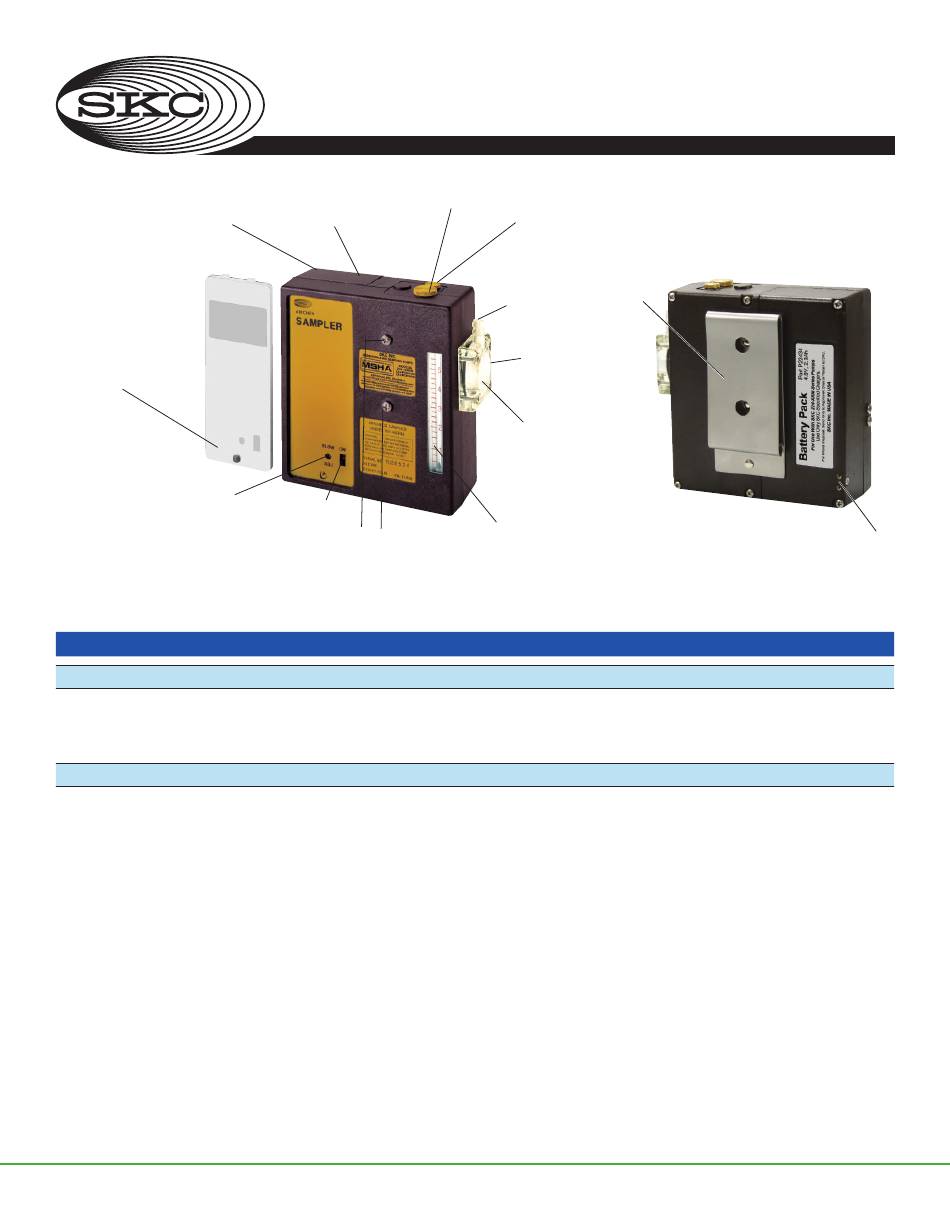

Figure 1. Front and back views of 44XRM Universal Sample Pump
®
tubing
44XRM Universal Sample Pump
863 Valley View Road, Eighty Four, PA 15330 • 724-941-9701 • skcinc.com
Low flow regulator
(beneath cap screw) allows
pump to be switched from
high to low flow.
Belt clip
Inlet
Inlet fi lter
housing
Built-in particulate trap
in see-through housing
protects pump.
Built-in rotameter
provides a visible check of
relative flow rate during
sampling from 0.5 to 5 L/min.
skcinc.com
Cat. No. 224-44XRM
Operating Instructions
Back view
Charging jack
Form 37725 Rev 250327
Page 1 of 11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SKC 44XRM
Summary of Contents for SKC 44XRM
- Page 1 Introduction Description The 44XRM Universal Sample Pump (Figure 1) is a constant fl ow (from 5 to 3000 ml/min) air sampler suitable for a broad range of applications. It is ideal for industrial hygiene studies as well as environmental testing.
- Page 2 Getting Started Install the Battery Pack To enhance battery life, SKC ships battery packs separately from the pump. Once installed, completely charge the battery pack before operating the pump. Battery pack Remove the two screws that secure the batt ery pack and loosen...
- Page 3 Operation High Flow Applications (1000 to 3000 ml/min) Deactivate the Regulator for High Flow To ensure the pump is set for high fl ow, remove the cap screw (Figure 1) covering the regulator valve and turn the exposed screw clockwise until it stops. Do not overtighten. See right. Replace the cap screw.
- Page 4 For personal sampling, clip the sampling medium to the worker in the breathing zone. b. When using impingers, an in-line trap (SKC Cat. No. 225-22 or 225-22-01) is required to prevent fumes from accidentally being drawn into the sampler. Place the in-line trap between the pump and the impinger.
- Page 5 Low Flow Applications (5 to 500 ml/min) Using Single Adjustable Tube Holder (Figure 3) Activate the Regulator for Low Flow Start the pump using the on/off switch (Figure 2), and adjust the fl ow rate by turning the fl ow adjustment screw (Figure 2) until the built-in rotameter reads approximately 1.5 L/min.
- Page 6 Low Flow Applications, Single Tube (Cont) Set Up/Sample • Allow pump to equilibrate after moving it from one temperature extreme to another. • Protect sample pump from weather when in use outdoors. • Powering the pump with any device other than the approved battery pack voids MSHA approval. •...
- Page 7 Low Flow Applications (5 to 500 ml/min) Using Multiple-tube Adjustable Tube Holder (Figure 4) Anti-tamper cover Top view of fl ow adjust screws Flow adjust screws Rubber sleeve Tube holder outlet Sorbent sample tube Protective cover Figure 4. Quad Adjustable Tube Holder Activate the Regulator for Low Flow Start the pump using the on/off...
- Page 8 Low Flow Applications, Multiple Tubes (Cont) c. Using fl exible tubing, connect the exposed end of the fi rst sorbent tube to the fl owmeter outlet (suction port). Loosen and turn the brass fl ow adjust screw (Figure 4) on the port of the appropriate tube holder (counterclockwise to increase, clockwise to decrease) until the desired fl...
- Page 9 Clean the Pump Inlet Filter The 44XRM Universal Sample Pump is fi tt ed with a fi lter/trap inside a clear plastic intake port housing. This prevents particles from being drawn into the pump mechanism. Visually check the fi lter to ensure that it does not become clogged. If maintenance is necessary, follow this procedure: Clean dust and debris from around the fi...
- Page 10 SKC Limited Warranty and Return Policy SKC products are subject to the SKC Limited Warranty and Return Policy, which provides SKC’s sole liability and the buyer’s exclusive remedy. To view the complete SKC Limited Warranty and Return Policy, go to www.skcinc.com/warranty.
- Page 11 Appendix Performance Profi le Flow Range 1000 to 3000 ml/min (5 to 500 ml/min requires adjustable low flow holder) Weight 34 oz (964 gm) Dimensions 5.1 x 4.7 x 1.9 in (13 x 11.9 x 4.8 cm) Compensation Range 1000 ml/min at 40 inches water back pressure 2000 ml/min at 40 inches water back pressure 3000 ml/min at 22 inches water back pressure Flow Control...
