was perfectly pre-set already.
Before setting the Vertical Tracking Force, confirm the exact weight of your cartridge.

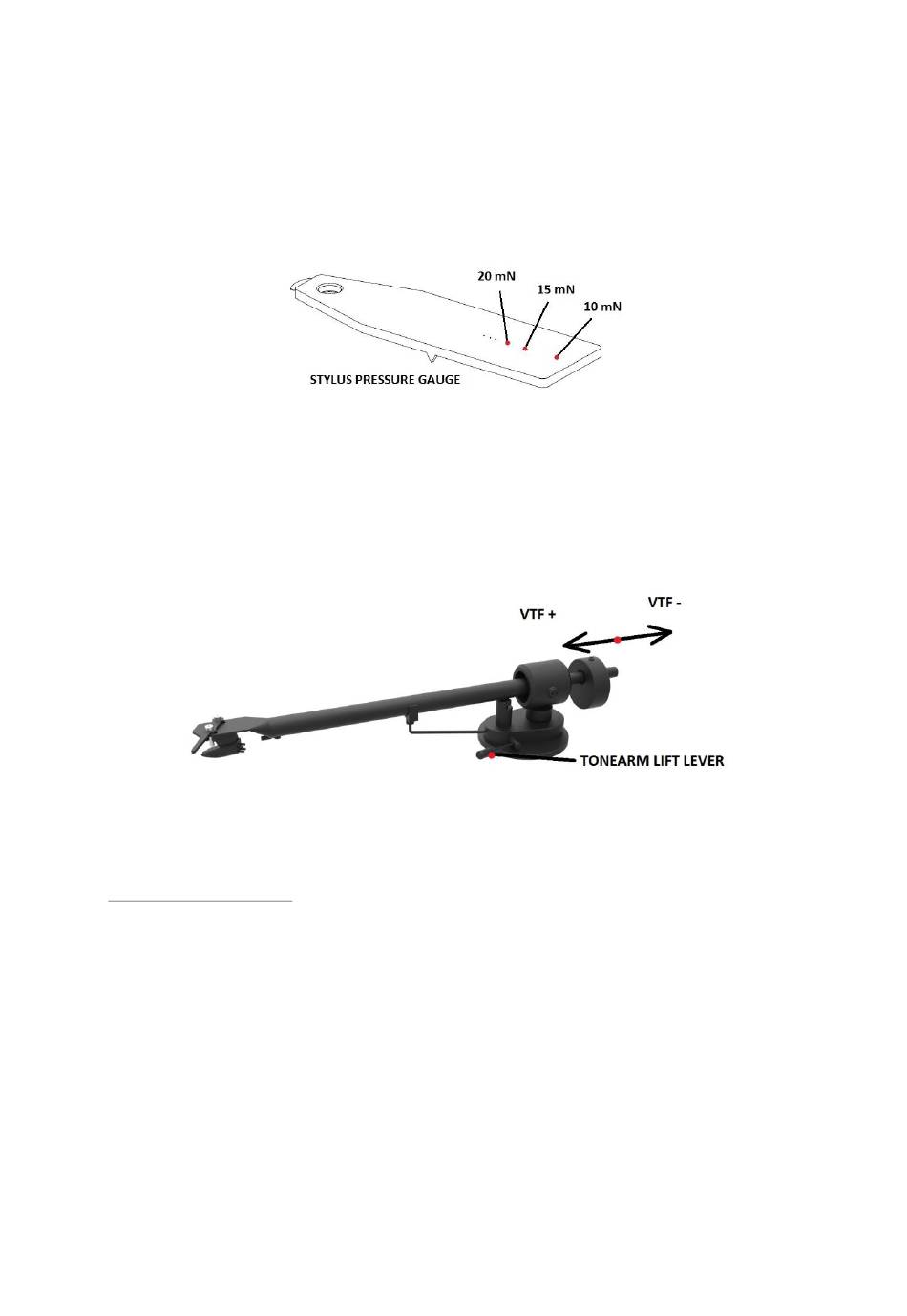

Pushing carefully, move the counterweight onto the rear end of the counterweight support rod as shown in
the illustration below. Place the stylus pressure gauge onto the platter. To set the required VTF, lower the
tonearm lift lever as indicated in the illustration and place the tip of the stylus exactly in between the two
points marked 15mN and 20mN.
If the stylus gauge becomes level, then the correct pressure has been achieved. However if the there is
insufficient or excessive pressure the gauge will either not move or tilt down.
To adjust the amount of pressure, carefully move the counterweight (11) along the support rod, until the
stylus pressure is sufficient to raise the pressure gauge to the level position. Moving the counterweight (6)
away from the cartridge will reduce pressure and towards will increase pressure. Finally secure the
counterweight (6) using hexagonal key provided.
4. Maintenance and cleaning
Your record player requires little or no regular maintenance. Remove dust with a slightly moistened antistatic
cloth. Never use a dry cloth because this will create static electricity which attract more dust! Antistatic
cleaning fluids are available at specialist stores but must be applied sparingly to avoid damage to rubber
parts. It is recommended to fit the needle cover before cleaning or maintenance is carried out to avoid damage.
If the player is not used over a long period of time the drive belt can be removed to prevent unequal stretching.
