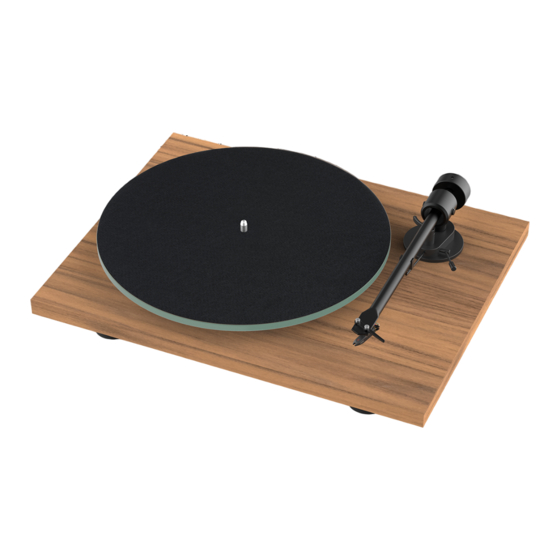

Pro-Ject Audio Systems T1 Series Setup Manual

T1 Setup Guide
Please read before unpacking.
1
Unpack all items from accessory bag.
a)
c)
b)
d)
4
Remove the protection covering.
Beware of breaking the needle!
8
Put the platter on the turntable.
T1
Connect to any amp with integrated phono amplifier or use an
external phono preamp.
Pre-mounted Connect it E (RCA cable) included.
Possible set: Pro-Ject Speaker Box 5 (bookshelf speaker) and
Pro-Ject MaiA S2 (stereo integrated amplifier).
T1 Phono SB
Select Line Out to connect to an amplifier without a phono
stage. Select Phono Out if you have an amplifier with a phono
stage.
Possible set: Pro-Ject Speaker Box 5 (bookshelf speaker) and
Pro-Ject Stereo Box S2 (smallest audiophile integrated amp).
T1 BT
Select Line Out to connect to an amplifier without a phono
stage. Select Phono Out if you have an amplifier with a phono
stage. Enjoy the warmth of vinyl with the comfort of wireless
technology.
Possible set: Pro-Ject Speaker Box 5 (bookshelf speaker) and
Pro-Ject Stereo Box S2 (smallest audiophile integrated amp).
a) Connect it E (RCA cable)
Detachable cable only included with T1 Phono SB & T1 BT
b) Drive belt
c) Stylus pressure gauge
d) Adapter for 7" singles
5
Unpack the power supply.
9
Put the felt mat on the platter.
Getting started:
• Make sure to have enough space to unpack your turntable.
• Always unpack and setup in a clean enviroment.
• Important for warranty: Do not throw packaging away.
• Setup is demonstrated with T1 Phono SB.
2
Remove dust cover carton from the box.
6
Unpack the platter.
10
Remove tonearm twist tie.
Lift the wrapped turntable
3
out of the box.
Put the drive belt on the pulley
7
& sub-platter.
Speed Change:
Small pulley 33 RPM
Large pulley 45 RPM
T1 Phono SB: Speed Selector 33/45
Connect to your hifi-system
11
and enjoy your music!
Connect it E (RCA Cable)
Speaker cable Speaker cable
Connect it E (RCA Cable)
Speaker cable Speaker cable
Connect it E (RCA Cable)
Speaker cable Speaker cable
