Handle Unit - Canon XA50 Instruction Manual

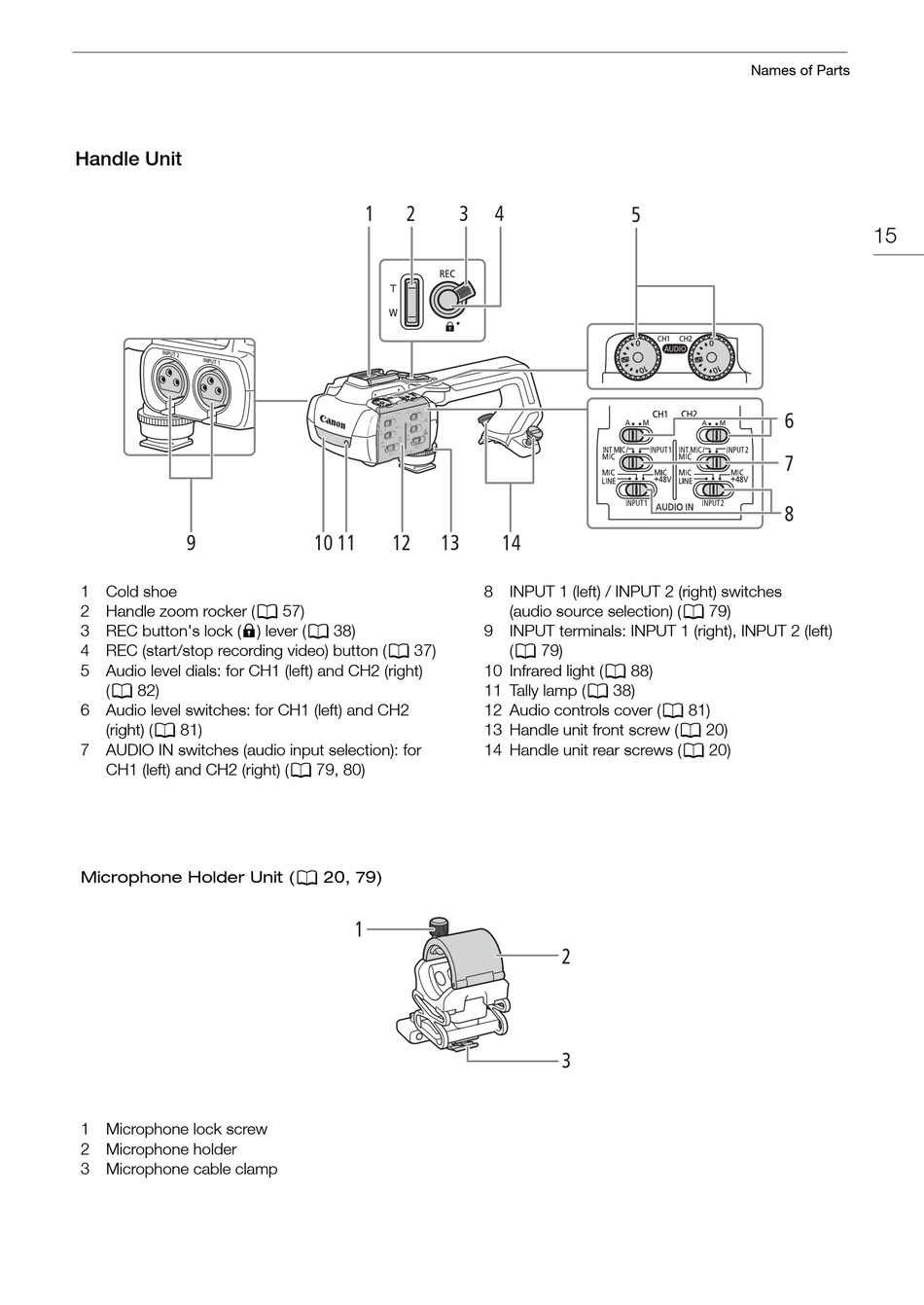

Handle Unit

9
1 Cold shoe
2 Handle zoom rocker (A 57)
3 REC button's lock (C) lever (A 38)
4 REC (start/stop recording video) button (A 37)
5 Audio level dials: for CH1 (left) and CH2 (right)
(A 82)
6 Audio level switches: for CH1 (left) and CH2
(right) (A 81)
7 AUDIO IN switches (audio input selection): for
CH1 (left) and CH2 (right) (A 79, 80)
Microphone Holder Unit (A 20, 79)
1 Microphone lock screw
2 Microphone holder
3 Microphone cable clamp
1 2 3
10 11 12 13
8 INPUT 1 (left) / INPUT 2 (right) switches
9 INPUT terminals: INPUT 1 (right), INPUT 2 (left)
10 Infrared light (A 88)
11 Tally lamp (A 38)
12 Audio controls cover (A 81)
13 Handle unit front screw (A 20)
14 Handle unit rear screws (A 20)
1
4
5
14
(audio source selection) (A 79)
(A 79)
2
3
Names of Parts
15
6
7
8
