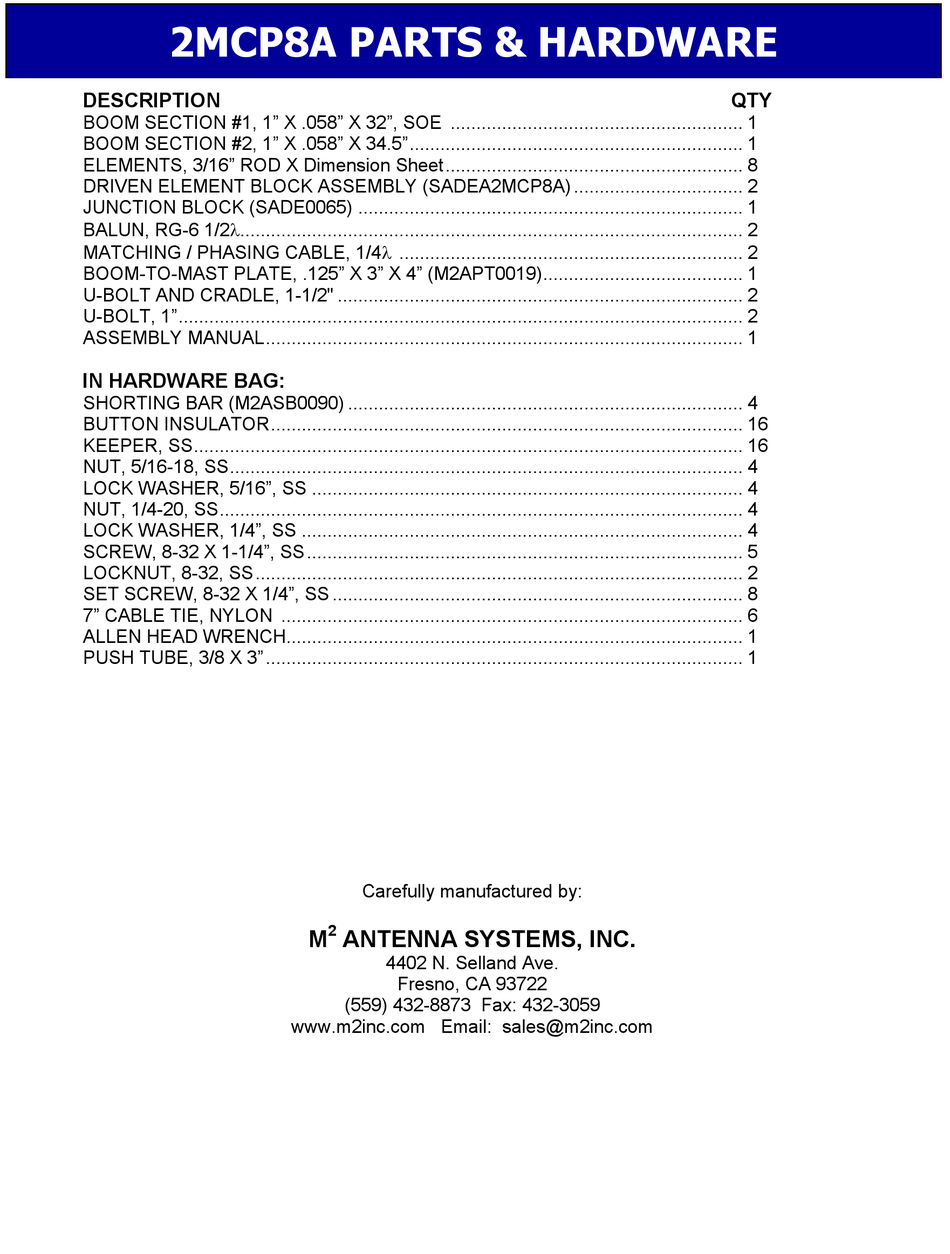

2MCP8A PARTS & HARDWARE
DESCRIPTION QTY
BOOM SECTION #1, 1" X .058" X 32", SOE ......................................................... 1
BOOM SECTION #2, 1" X .058" X 34.5" ................................................................. 1
ELEMENTS, 3/16" ROD X Dimension Sheet .......................................................... 8
DRIVEN ELEMENT BLOCK ASSEMBLY (SADEA2MCP8A) ................................. 2
JUNCTION BLOCK (SADE0065) ........................................................................... 1
BALUN, RG-6 1/2 .................................................................................................. 2
MATCHING / PHASING CABLE, 1/4 ................................................................... 2
BOOM-TO-MAST PLATE, .125" X 3" X 4" (M2APT0019) ....................................... 1
U-BOLT AND CRADLE, 1-1/2" ............................................................................... 2
U-BOLT, 1" .............................................................................................................. 2
ASSEMBLY MANUAL ............................................................................................. 1
IN HARDWARE BAG:
SHORTING BAR (M2ASB0090) ............................................................................. 4
BUTTON INSULATOR ............................................................................................ 16
KEEPER, SS ........................................................................................................... 16
NUT, 5/16-18, SS .................................................................................................... 4
LOCK WASHER, 5/16", SS .................................................................................... 4
NUT, 1/4-20, SS ...................................................................................................... 4
LOCK WASHER, 1/4", SS ...................................................................................... 4
SCREW, 8-32 X 1-1/4", SS ..................................................................................... 5
LOCKNUT, 8-32, SS ............................................................................................... 2
SET SCREW, 8-32 X 1/4", SS ................................................................................ 8
7" CABLE TIE, NYLON .......................................................................................... 6
ALLEN HEAD WRENCH......................................................................................... 1
PUSH TUBE, 3/8 X 3" ............................................................................................. 1
Carefully manufactured by:
2
M ANTENNA SYSTEMS, INC.
4402 N. Selland Ave.
Fresno, CA 93722
(559) 432-8873 Fax: 432-3059
www.m2inc.com Email: sales@m2inc.com
