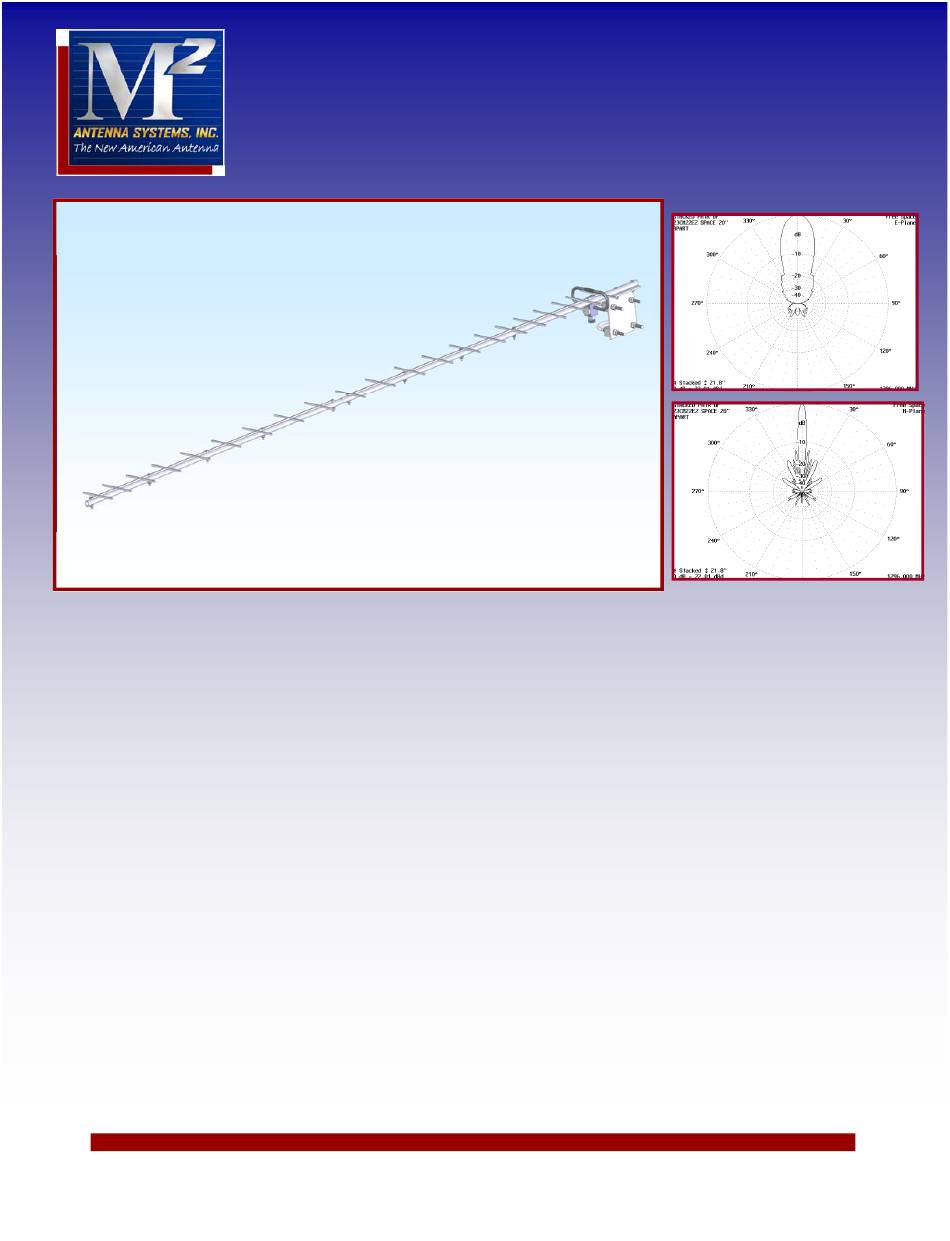

M2 Antenna Systems 23CM22EZB Quick Start Manual

Advertisement

SPECIFICATIONS:

Model ......................................... 23CM22EZB
Frequency Range ....................... 1250 To 1300 MHz
*Gain .......................................... 18.2dbi 1290-1300 MHz
Front to back .............................. 28 dB Typical
Beamwidth ............................... E=24° H=24°
Feed type ................................... Folded Dipole
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1:1 Typical
Input Connector .......................... "N" Female

FEATURES:

The 23CM22EZB is a revised version of our popular and proven 23CM22EZ. The 23CM22EZB now supports rear and
center* mounting (*with some restrictions). While rear mounting is the preferred mounting method, center mounting pro-
vides mounting flexibility for more compact installations or rovers. The element sets are laser cut, holding spacing and
element lengths to .003" tolerance. Each antenna performs as perfectly as the next and the gain tops any other antenna
of comparable boom length. With excellent directivity and a very clean pattern, it is perfect for high gain stacked arrays.
Vertical stacks provide the gain of a much larger antenna with a smaller turning radius and without reducing the azimuth
beam width. Applications are long haul tropo, EME, ATV, Repeater, Rover and satellite operations. The 'EZ' is handy for
'hill-topping' and portable uses because of its modest size, weight, simple construction and rear mounting.
Structurally, the 23CM22EZB elements are fabricated in just TWO sets, eliminating ALL measurement and assembly
errors. The Broad band folded dipole driven element design is unique, with a balun and matching inside the folded dipole
itself. External connections are limited to a single O-ring sealed "N" feed.
and aluminum brazed housing. When other designs are deteriorating from environmental factors, the '23CM22EZB will
still be as good as new and performing to 'spec'!
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 23CM22EZB
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incoporated
Power Handling .......................... 600 Watts
Boom Length / Dia ...................... 70" / 0.50"
Maximum Element Length .......... 4.5"
Turning Radius: .......................... 68"
Stacking Distance ....................... 23" High & 23" Wide
Mast Size .................................... 1-1/4" to 2" Nom.
Wind area / Survival ................... 0.3 Sq. Ft. / 100 MPH
Weight / Ship Wt. ........................ 2 Lbs. / 3.5 Lbs.
Internal connections are sealed
in a machined
04/29/20
Rev.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 23CM22EZB and is the answer not in the manual?

Questions and answers

Summary of Contents for M2 Antenna Systems 23CM22EZB

  • Page 1 *Subtract 2.14 from dBi for dBd FEATURES: The 23CM22EZB is a revised version of our popular and proven 23CM22EZ. The 23CM22EZB now supports rear and center* mounting (*with some restrictions). While rear mounting is the preferred mounting method, center mounting pro- vides mounting flexibility for more compact installations or rovers.
  • Page 2 23CM22EZB ASSEMBLY DETAIL...
  • Page 3 23CM22EZB CENTER MOUNT OPTION NOTE THE DISTANCE FROM THE TOP OF THE MAST TO THE ELEMENTS When using the center mount option keep the top of the mast as far from the antenna boom as the U-bolts allow. Do not allow the mast to pass up through the element plane as it WILL...
  • Page 4 23CM22EZB TUNNING DETAIL COMMENT: The dipole is fabricated with the dipole straight up so the mounting screw can be inserted and tightened and for best match. If you have good VSWR measurement equipment, using this tipping method to optimize the match at the frequency of choice. A good match (well under 1.5:1) will occur from 1250 to 1300 mHz.
  • Page 5 23CM22EZB ASSEMBLY MANUAL Access cap COMPLEX PHASING TECHNIQUES EXPLAINED When phasing antenna arrays, there are some standard rules, such as: “all antennas need to mount identically not mirror image” and “phasing lines need to be ALL EVEN or ALL ODD halfwave multiples”. These are good basic rules.
  • Page 6 23CM22EZB PARTS & HARDWARE DESCRIPTION BOOM SECTION #1, 1/2 X 37.125” ........... 1 BOOM SECTION #2, 1/2 X 31.875” ........... 1 ELEMENT SET #1, REAR ............1 ELEMENT SET #2, FRONT ............1 DRIVEN ELEMENT ASSY (SADEA23CM) ......... 1 REAR MOUN BRACKET (M2APT0058) ........1 ASSEMBLY MANUAL ..............
