- Page 1 PRODUCT CODE :MFX1201 VERSION :1.0 DATE :18.10.2017...
-
Page 2: Congratulations
MAGICFX®, which has acquired an excellent reputation for quality and reliability. All products are manufactured in accordance with the European Machinery Directive. MAGIC FX handles the entire production in-house from concept to finished product. We take care of the design, prototyping and manufacturing process. -
Page 3: Ce Marking
MAGIC FX B.V. MAGIC FX reserves the right to make modifications at any time without having to notify the customer beforehand. The content of this manual may also be modified. -
Page 4: Declaration Of Conformity
The Netherlands Hereby declares under our sole responsibility: We are the manufacturer of the product: ® MFX1201 - MAGICFX Stage Flame to which this declaration pertains and it is in conformity with the provisions of the following guidelines: Machinery Directive 2006/42/EG... -
Page 5: Foreword
MAGIC FX recommends you keep the original of this manual and its attachments in a secure central location, and, keep another copy of this manual close to the workplace where the Stage Flame will be used. -
Page 6: Table Of Contents
User Manual MAGICFX® Stage Flame TABLE OF CONTENTS CONGRATULATIONS! ..................1 CE MARKING ....................2 DECLARATION OF CONFORMITY ..............3 FOREWORD ....................4 INTRODUCTION ....................6 DESCRIPTION OF THE STAGE FLAME AND ITS USAGE ..........6 NECESSARY ACCESSORIES ....................6 TYPES OF GAS ........................ -
Page 7: Introduction

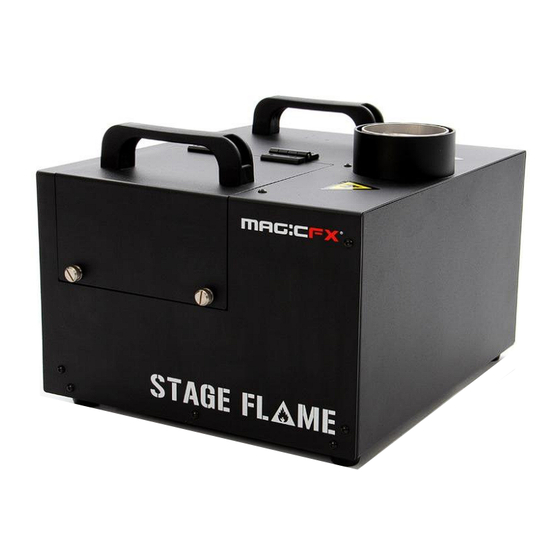

Version 1.0 5. INTRODUCTION DESCRIPTION OF THE STAGE FLAME AND ITS USAGE The Stage Flame is a device specifically designed for producing flames on stage. The Stage Flame is intended solely to be placed on a flat surface or stage and produce brief upward flame effects (fire balls). -
Page 8: Choice Of Flame
User Manual MAGICFX® Stage Flame CHOICE OF FLAME The following types of flames are possible (at a normal ambient temperature of 20°): AEROSOL CAN: Flame height approximately three meters high GAS BOTTLE: Flame height approximately three to four meters high BIG-FLAME (AEROSOL CAN + GAS BOTTLE): Flame height approximately six meters high MODE FLAME HEIGHT... -
Page 9: Safety
Always ask the fire brigade for permission to use the Stage Flame at the desired location. EMERGENCY STOP BUTTON The Stage Flame is equipped with an emergency stop button (MFX1201) in case of emergencies. The Emergency Stop Button has the following characteristics: The emergency button is easy to recognize because of its red/yellow colors and should be positioned so that it can be reached easily and quickly. -
Page 10: Warnings
User Manual MAGICFX® Stage Flame WARNINGS There are several warnings displayed on the Stage Flame to which the following restrictions apply: The text must not be removed or otherwise spoilt. The operator should regularly check that the warnings are in good condition. The operator must ensure that the text is always visible and legible and that it remains so. -
Page 11: Features
Version 1.0 Icons Explanation A warning for danger from a hot surface must be indicated using the PIC 315 icon. This is located on the top of the Stage Flame. PIC 315 Hot surface Icons Explanation A warning for danger for fire must be indicated using the PIC 300 icon. -
Page 12: Parts
User Manual MAGICFX® Stage Flame 7. PARTS 9. MENU button 1. Power button 10. UP button 2. Power input 11. DOWN button 3. Power output 12. RESET button 4. DMX input 13. Warning LEDs 5. DMX output 14. Cover fasteners 6. -
Page 13: Accessories
MFX1202 MFX1204 – EMERGENCY STOP PROPANE GAS HOSE PROPANE GAS REDUCER Table 8.1 You can order the above parts from: MAGIC FX B.V. Schouwrooij 27 NL-5281 RE BOXTEL The Netherlands Tel: +31(0)411 63 50 13 Fax: +31(0)411 63 50 12 Web: http://www.magicfx.eu... -
Page 14: Readying For Use
User Manual MAGICFX® Stage Flame 10. READYING FOR USE CAUTION: This indicates that the equipment may be damaged if procedures are not carried out in the proper manner. DANGER WARNING: The MAGICFX® Stage Flame may only be worked on by authorised adults. - Page 15 Version 1.0 Connect the other end of the DMX cable (male plug) to a professional DMX controller. Ensure that the DMX controller is placed so that the operator always has a complete view of all the connected Stage Flames. Consult the DMX controller manual for usage and safety instructions.
- Page 16 User Manual MAGICFX® Stage Flame Screw the aerosol can into the holder until it is securely locked in place. Ensure that it is securely in place. Only replace an aerosol can during a show when the Stage Flame is set to “safety mode”.
- Page 17 Version 1.0 Connect a propane gas hose to the reducer. All propane hoses in our selection come standardly equipped with quick release connectors. Flame height can also be controlled by adjusting the reducer. The bolt on the reducer should be turned in completely to maximize the flow of gas and create the biggest possible flame.
- Page 18 User Manual MAGICFX® Stage Flame The Stage Flame settings should be selected only after all the connections are completed and the gas bottle and/or aerosol can is installed. When readying the device, ensure that free channels are used on the DMX controller and that these channels are in safety mode.
- Page 19 Version 1.0 After you have set the “safety” channel, you can set the “fire” channel. You select the desired channel by using the UP and DOWN buttons. If you have selected the “Big Flame” option then you must set two channels in this step. You can set “small”...
-
Page 20: Usage
User Manual MAGICFX® Stage Flame 11. USAGE TIP: This provides you with suggestions and advice on how to perform tasks in an easier or more convenient way. CAUTION: This indicates that the equipment may be damaged if procedures are not carried out in the proper manner. - Page 21 Version 1.0 After you have used the Stage Flame, you must set it to safety mode again. You put the Stage Flame in safety mode by shutting the safety channel or setting it to a value outside the 40% to 60% range. The Stage Flame cannot be used when it is in safety mode.
-
Page 22: Turning Off
User Manual MAGICFX® Stage Flame 12. TURNING OFF Turn off the Stage Flame as follows: Ensure that the DMX addresses are set to safety mode. Turn off the Stage Flame power button and disconnect the powerCON cable and DMX plugs. If a gas bottle was used then this must be closed first before you disconnect the gas hose. -
Page 23: Troubleshooting
Version 1.0 13. TROUBLESHOOTING Always contact your dealer or the MAGIC FX technical department if you have any doubts or questions about the operation of or other issues related to the Stage Flame. 14. TECHNICAL SPECIFICATIONS 360mm (14.2”) Length: 310mm (12.2”) - Page 24 WWW.MAGICFX.EU...
