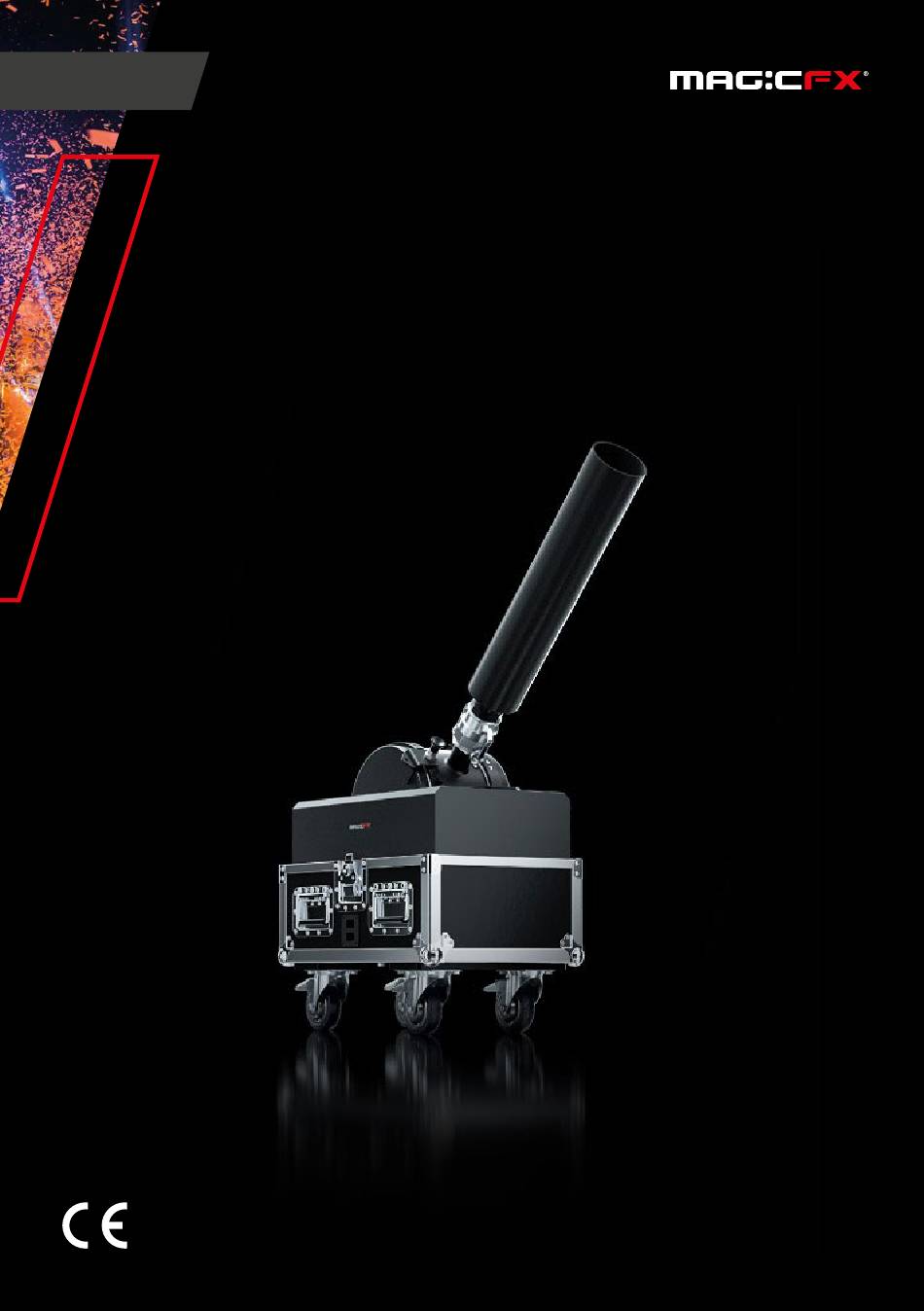

- Page 1 ENGLISH USER AND INSTALLATION MANUAL STADIUMSHOT III CONFETTI & STREAMER FX PART02577 rev 02-00...
- Page 2 LIABILITY MAGIC FX accepts no liability for claims from third parties arising from unauthorised use, use other than that stated in this manual, and use other than in accordance with the General Conditions registered at the Chamber of Commerce.
-
Page 3: Table Of Contents
3.7. Shoot with DMX or Pyro 3.8. Use the emergency stop 3.9. Clean up Troubleshooting Maintenance 5.1. Cleaning 5.2. Replace the air-in filter 5.3. Storage Correct disposal EC Declaration of Conformity MAGICFX STADIUMSHOT III - User and Installation Manual ®... -
Page 4: Introduction
INTRODUCTION Congratulations! You have bought a great new product from MAGIC FX. This manual contains all information required for the intended use of the equipment. Deviation from the described intended use can result in a hazardous situation and/or property damage. -
Page 5: Language
19-12-2023 Preparing for CMS Added safety zones PART01839 01-05 13-03-2024 ARM/Enable update PART01839 01-06 25-09-2024 Updated safety zones SvdS Updated front page PART02577 02-00 23-04-2025 Initial release v02 Updated risk zones MAGICFX STADIUMSHOT III - User and Installation Manual ®... -
Page 6: Description
The STADIUMSHOT III is a special effects machine that shoots confetti or streamers into the air. The STADIUMSHOT III is intended for outdoor use. At the desired moment the air flows from the tank via the barrel out of the machine. This results in the confetti or streamers leaving the output pipe at high velocity into the air up to 40 metres far*. -
Page 7: Main Parts
FX WARNING LED PYRO INPUT (24 VDC) SCREEN & BUTTONS ARM KEY OVERRIDE POWER INPUT & OUTPUT SWITCH (100-250 VAC) ARM CONTROLLER DMX INPUT & OUTPUT INPUT & OUTPUT (5-POLE) Main parts MAGICFX STADIUMSHOT III - User and Installation Manual ®... -
Page 8: Technical Data
® RJ45 (in&out) Configuring Configure Options On Device Pressure tank Maximum pressure 8 bar 116 psi Volume 10.9 L 2.9 gal Usage Consumable(s) MAGICFX CONFETTI ® MAGICFX STREAMERS ® Technical data MAGICFX STADIUMSHOT III - User and Installation Manual ®... -
Page 9: Product Identification
ARM CONTROLLER and connected machines. The ARM system ensures that in the event of a signal failure, the shot valve of the STADIUMSHOT III can not be opened. The machine can be pressurised and kept at pressure. -
Page 10: Arm Override Key
If no ARM CONTROLLER is connected, the safety system can be manually overridden using the key switch located on the STADIUMSHOT III. Turning the key to the OFF position disables the ARM input and arms the machine for operation via DMX or pyro only. -
Page 11: Dmx Control
ERROR HISTORY Display panel The display panel is located on the backside of the STADIUMSHOT III. Check the following menu structure for all options in the menu. Use the buttons for navigation and selection. The left-hand LED blinks red when DMX is active. The right-hand LED continuously lights red when an error is present. - Page 12 Unique ID (HHHHHHHHHHHH) Main Menu Bootloader CRC Information Build Date Bootloader CRC Build Date Uptime (DDDD:HH:MM:SS) Uptime (DDDD:HH:MM:SS) Effect Time (DDDD:HH:MM:SS) Shots Fired (XXXX) Shots Fired (XXXX) Pump time (DDDD:HH:MM:SS) Menu structure MAGICFX STADIUMSHOT III - User and Installation Manual ®...
- Page 13 Software Version Installed software version. Software CRC CRC of the functional software. Bootloader CRC CRC of the bootloader software. Build Date Release date of functional software. Menu functions MAGICFX STADIUMSHOT III - User and Installation Manual ®...
-
Page 14: Rdm Capability
DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL SLOT_DESCRIPTION SENSOR_DEFINITION SENSOR_VALUE DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_LABEL FACTORY_DEFAULTS RESET_DEVICE RDM parameters RDM parameters are subject of change due to software updates. Contact MAGIC FX for the latest information and updates. MAGICFX STADIUMSHOT III - User and Installation Manual ®... -
Page 15: Accessories
115 ft 8 bar 116 psi ® Projectile types and related loads and output Wind and other weather circumstances will influence NOTICE the output distance. The given values are estimated values. MAGICFX STADIUMSHOT III - User and Installation Manual ®... -
Page 16: Safety
• Only authorised persons may work with the STADIUMSHOT III. • Do not use the STADIUMSHOT III if there are people or animals in the direct output. • Do not use the STADIUMSHOT III if alterations have been made other than by or on behalf of MAGIC FX. -
Page 17: Compressed Air
2.4. OUTDOOR USE The STADIUMSHOT III is designed for outdoor use. The STADIUMSHOT III can be used indoors in large event WARNING halls and arenas. Please refer to section 2.10. 2.5. RIGGING Please follow the European and national guidelines for safe rigging and trussing. -
Page 18: Safety Symbols
Never leave the machine unattended when the machine is ready for use. Do not use the STADIUMSHOT III if alterations have been WARNING made other than by or on behalf of MAGIC FX. Missing or obscured safety symbols on the machine WARNING can lead to death or serious injury. -
Page 19: Risk Zones
DANGER DANGER KEEP CLEAR When pressurized, create a danger zone around the output pipe of the STADIUMSHOT III as indicated in the illustration. Make sure that confetti or streamers cannot come into DANGER contact with high-voltage lines/power pylons, as this can result in electrocution. - Page 20 Make sure unauthorized personnel and animals are clear of this area. Failure to do so could result in death or serious injury. WARNING Always create a hazardous zone around the output pipe of the STADIUMSHOT III as indicated in the illustration. MAGICFX STADIUMSHOT III - User and Installation Manual...
- Page 21 Pressurized air is ejected over the total size of the NOTICE output. Make sure there are no loose objects in the output range. Make sure the STADIUMSHOT III is installed properly and NOTICE set up in a stable position. Refer to chapter 3.1. MAGICFX STADIUMSHOT III - User and Installation Manual ®...
-
Page 22: Installation And Use
INSTALLATION AND USE 3.1. INSTALL THE MACHINE Bring the cased machine to the desired location. Place the machine in its final position and set the brakes. MAGICFX STADIUMSHOT III - User and Installation Manual ®... - Page 23 Not doing so can result in death or serious injury. Do not apply more than 100 kg on the strap plate. The NOTICE flightcase may break down. Unlock and remove the flightcase cover. MAGICFX STADIUMSHOT III - User and Installation Manual ®...
- Page 24 Remove the output pipe. Pull the locking clamps downwards to unlock and rotate them upwards. MAGICFX STADIUMSHOT III - User and Installation Manual ®...
- Page 25 Place the output pipe in the coupling while holding the locking clamps upwards. Lock the output pipe in place with the locking clamps. MAGICFX STADIUMSHOT III - User and Installation Manual ®...
- Page 26 Never use the machine when the index plunger is not WARNING properly in place or working properly. Not doing so can result in serious injury or death. MAGICFX STADIUMSHOT III - User and Installation Manual ®...
-
Page 27: Connect The Machine
Connect the correct cables between the ARM CONTROLLER, the STADIUMSHOT III, the control equipment, and other ARM SYSTEM components and machines (if applicable). Check the following variants for connection details. The STADIUMSHOT III is controlled with DMX. The DMX signal and the ARM signal have separate cables. E-STOP... - Page 28 CONTROLLER STADIUMSHOT III POWER PYRO connect another machine PYRO CONTROLLER or insert terminator The STADIUMSHOT III is controlled with DMX. The DMX signal and the ARM signal are combined. BEACON DMX + ARM STADIUMSHOT III ARM CONTROLLER DMX INJECTOR connect another machine...
-
Page 29: Using The Arm Override Key Switch
(if applicable). Set the key switch to OFF. If the machine is connected to power, the FX LED lights in red, indicating the system is now armed and the STADIUMSHOT III is ready to be operated. 3.4. TESTING THE VALVE (OPTIONAL) Make sure the pressure sits below 1 bar. -
Page 30: Fill With Confetti And/Or Streamers
Make sure the lifting core lies flat and closes off the hole in the output pipe! Fill the output pipe with confetti and/or streamers. Check Chapter 1.10. for the maximum amount of each type of input. MAGICFX STADIUMSHOT III - User and Installation Manual ®... - Page 31 Place a pressure cap on top of the output pipe. Secure the pressure cap to the output pipe with special pressure cap tape. MAGICFX STADIUMSHOT III - User and Installation Manual ®...
-
Page 32: Fill With Pressurised Air
Not doing so will result in death or serious injury. If the internal compressor of the STADIUMSHOT III is used, follow the next steps: Power the machine. Close the vent valve. -
Page 33: Shoot With Dmx Or Pyro
STADIUMSHOT III and other connected SFX machines are ready to be operated. If no ARM CONTROLLER is used, set the safety key on the STADIUMSHOT III to OFF. The FX LED lights in red, indicating the system is now armed and the STADIUMSHOT III is ready to be operated. -
Page 34: Use The Emergency Stop
This chapter only applies when an ARM CONTROLLER is NOTICE connected. When an emergency occurs or is about to occur with the STADIUMSHOT III, you press the emergency stop button on the ARM CONTROLLER or on an external E-STOP (if present). -
Page 35: Clean Up
0 bar. Disconnect the cables. Rotate the tank to the vertical (0) position. Pull the locking clamps downwards to unlock and rotate them upwards. Remove the output pipe from the coupling. MAGICFX STADIUMSHOT III - User and Installation Manual ®... - Page 36 Store the output pipe in the flightcase. Remove the lashing ratchet. Place and lock the flightcase cover. MAGICFX STADIUMSHOT III - User and Installation Manual ®...
-
Page 37: Troubleshooting
Press the compressor on/off button to pressurize again. • Wait until the STADIUMSHOT III has built up the set pressure. • Fire again. If the problem is not solved, contact MAGIC FX. Troubleshooting MAGICFX STADIUMSHOT III - User and Installation Manual ®... - Page 38 If the problem is not solved, contact MAGIC FX. Troubleshooting Always contact MAGIC FX if any malfunctions or errors occur that cannot be solved with the instructions as described in this manual. MAGICFX STADIUMSHOT III - User and Installation Manual...
-
Page 39: Maintenance
MAINTENANCE To achieve the maximum service life of the STADIUMSHOT III you must regularly clean the STADIUMSHOT III and test if it is functioning correctly. Regularly replace the air-in filter (PART90101). Regularly clean dust and dirt from the compressor cooling fins and motor housing. -
Page 40: Replace The Air-In Filter
Remove the handle of the machine by removing the ten inbus 3 screws of the handle. Remove the air-in filter housing from the machine by rotating clockwise. MAGICFX STADIUMSHOT III - User and Installation Manual ®... -
Page 41: Storage
Attach the handle of the machine with the inbus 3 screws. 5.3. STORAGE Drain the tank before storing the STADIUMSHOT III. Place the tank in position -4 for optimal access to the valve. Turn the knob counterclockwise to open the valve. -
Page 42: Correct Disposal
Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. MAGICFX STADIUMSHOT III - User and Installation Manual ®... -
Page 43: Ec Declaration Of Conformity
According to Annex II A Machinery Directive 2006/42/EC Name machine : FLAMEBLAZER® STANDALONE Name machine : FLAMEBLAZER® STANDALONE MAGIC FX B.V. declares as manufacturer and composer of the technical construction file that the Type : MFX1401 Type : MFX1401 product with the following specifications:... - Page 44 WWW.MAGICFX.EU...
