Pin assignment of camera ports 1 and 2
Copyright © Müller-Elektronik GmbH & Co.KG
Pin no.:
3
4
5
6
7
8
9
When switched on, the terminal routes current to the farm equipment that is connected via the RS232
connector. The voltage of the RS232 connector is dependent on the operating voltage of the terminal.
When connected to a 12 V battery, the terminal will transfer approx. 11.3 V to the connected
equipment.
When connected to a 24 V battery, the terminal will transfer approx. 23.3 V to the connected
equipment.
The use of a GPS Receiver only requires the signals RxD and TxD as well as GND.
Ports 1 and 2 are used to connect an analogue camera. The pin assignment is identical for both
ports.

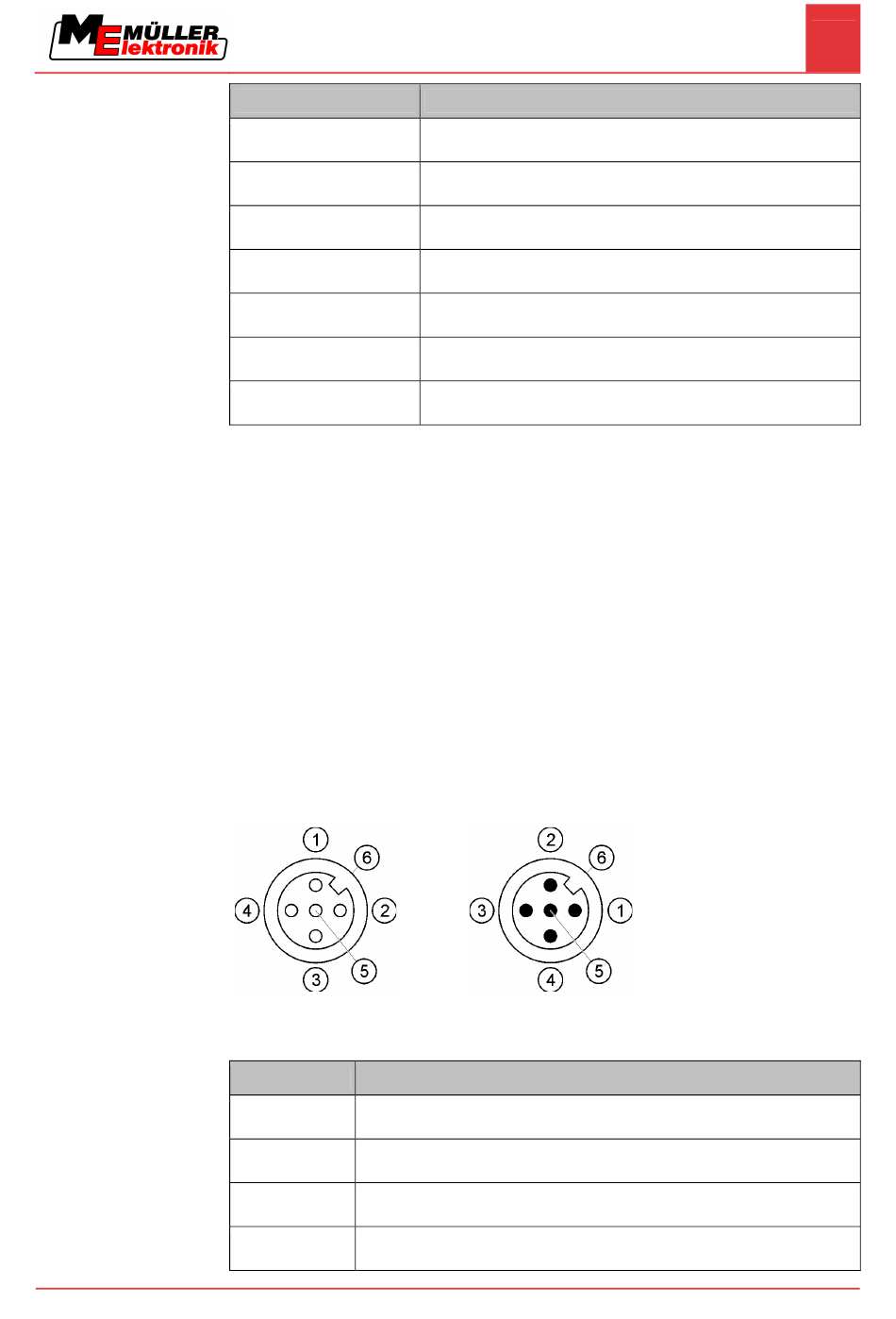

Ports 1 and 2 are 5-pin, A-encoded M12 sockets. Please refer to the following table for the pin
assignment.
Pin assignment of the socket (in
the terminal)
Pin
Signal
1
Pin is exclusively intended for use by ME (do not connect anything)
2
GND
3
Pin is exclusively intended for use by ME (do not connect anything)
4
Video signal
Signal
/TxD
Operating voltage minus 0.7 volt
GND
DSR
RTS
CTS
RI
Pin assignment of the connector
