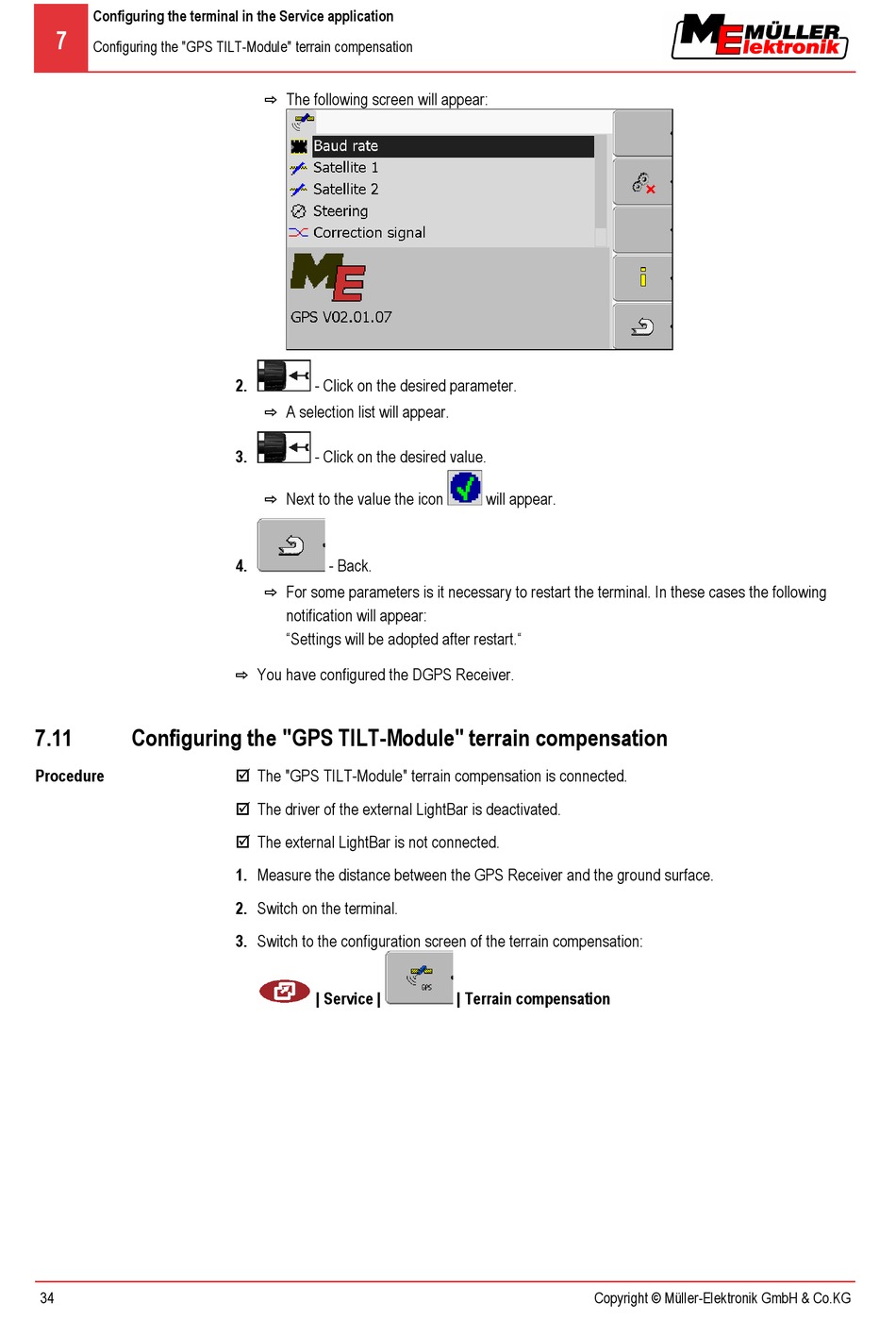

Configuring the "GPS TILT-Module" terrain compensation

7.11 Configuring the "GPS TILT-Module" terrain compensation
Procedure
34
⇨ The following screen will appear:
2. - Click on the desired parameter.
⇨ A selection list will appear.
3. - Click on the desired value.
⇨ Next to the value the icon
4. - Back.
⇨ For some parameters is it necessary to restart the terminal. In these cases the following
notification will appear:
"Settings will be adopted after restart."
⇨ You have configured the DGPS Receiver.
 The "GPS TILT-Module" terrain compensation is connected.
 The driver of the external LightBar is deactivated.
 The external LightBar is not connected.
1. Measure the distance between the GPS Receiver and the ground surface.
2. Switch on the terminal.
3. Switch to the configuration screen of the terrain compensation:
| Service |
will appear.
| Terrain compensation
