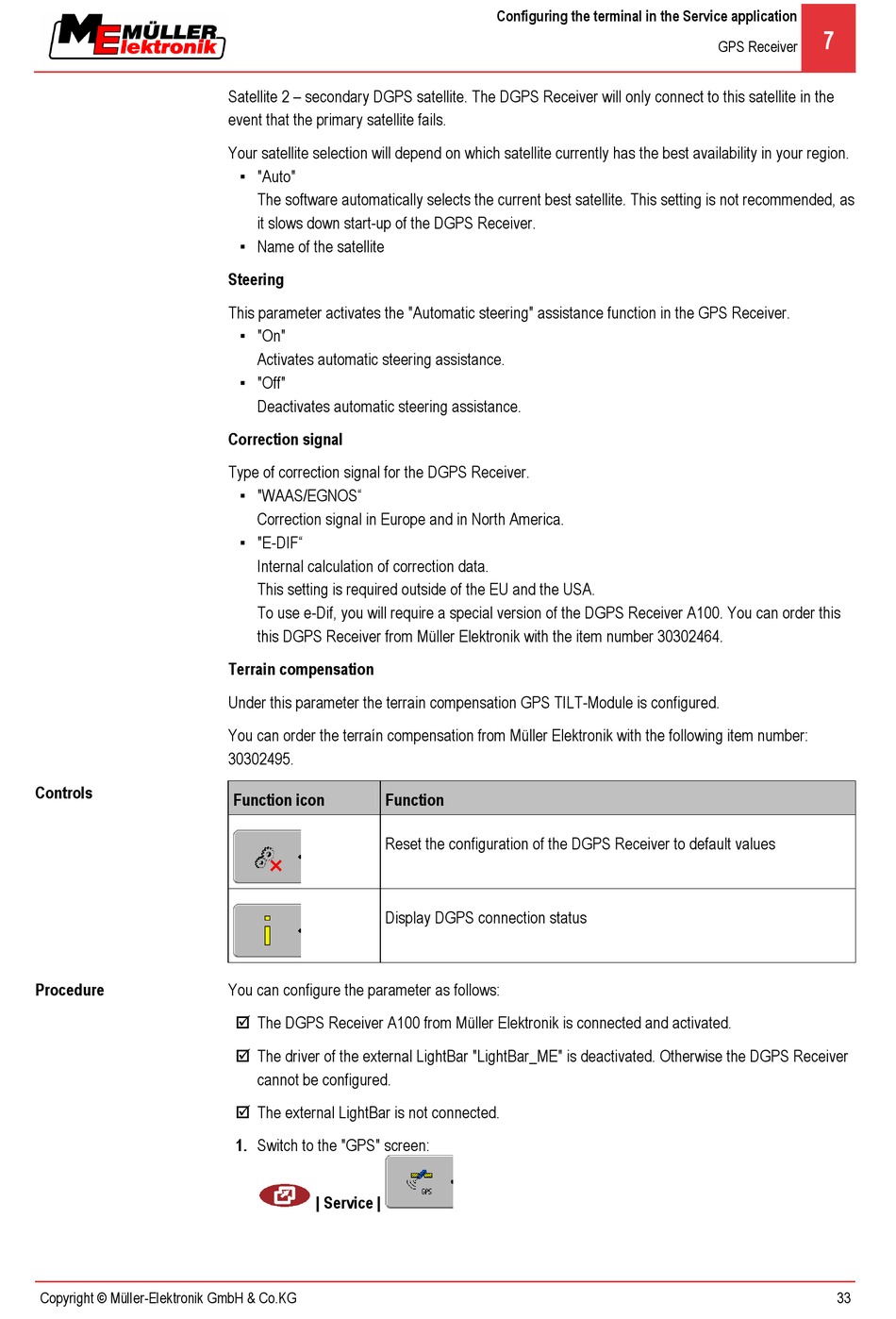

Muller Elektronik BASIC-Terminal Installation And Operating Instructions Manual page 33

Controls
Procedure
Copyright © Müller-Elektronik GmbH & Co.KG
Satellite 2 – secondary DGPS satellite. The DGPS Receiver will only connect to this satellite in the
event that the primary satellite fails.
Your satellite selection will depend on which satellite currently has the best availability in your region.
▪ "Auto"
The software automatically selects the current best satellite. This setting is not recommended, as
it slows down start-up of the DGPS Receiver.
▪ Name of the satellite
Steering
This parameter activates the "Automatic steering" assistance function in the GPS Receiver.
▪ "On"
Activates automatic steering assistance.
▪ "Off"
Deactivates automatic steering assistance.
Correction signal
Type of correction signal for the DGPS Receiver.
▪ "WAAS/EGNOS"
Correction signal in Europe and in North America.
▪ "E-DIF"
Internal calculation of correction data.
This setting is required outside of the EU and the USA.
To use e-Dif, you will require a special version of the DGPS Receiver A100. You can order this
this DGPS Receiver from Müller Elektronik with the item number 30302464.
Terrain compensation
Under this parameter the terrain compensation GPS TILT-Module is configured.
You can order the terraín compensation from Müller Elektronik with the following item number:
30302495.
Function icon Function
Reset the configuration of the DGPS Receiver to default values
Display DGPS connection status
You can configure the parameter as follows:
 The DGPS Receiver A100 from Müller Elektronik is connected and activated.
 The driver of the external LightBar "LightBar_ME" is deactivated. Otherwise the DGPS Receiver
cannot be configured.
 The external LightBar is not connected.
1. Switch to the "GPS" screen:
| Service |
Configuring the terminal in the Service application
7
GPS Receiver
33
