Summary of Contents for ID Tech ViVOpay VP6800

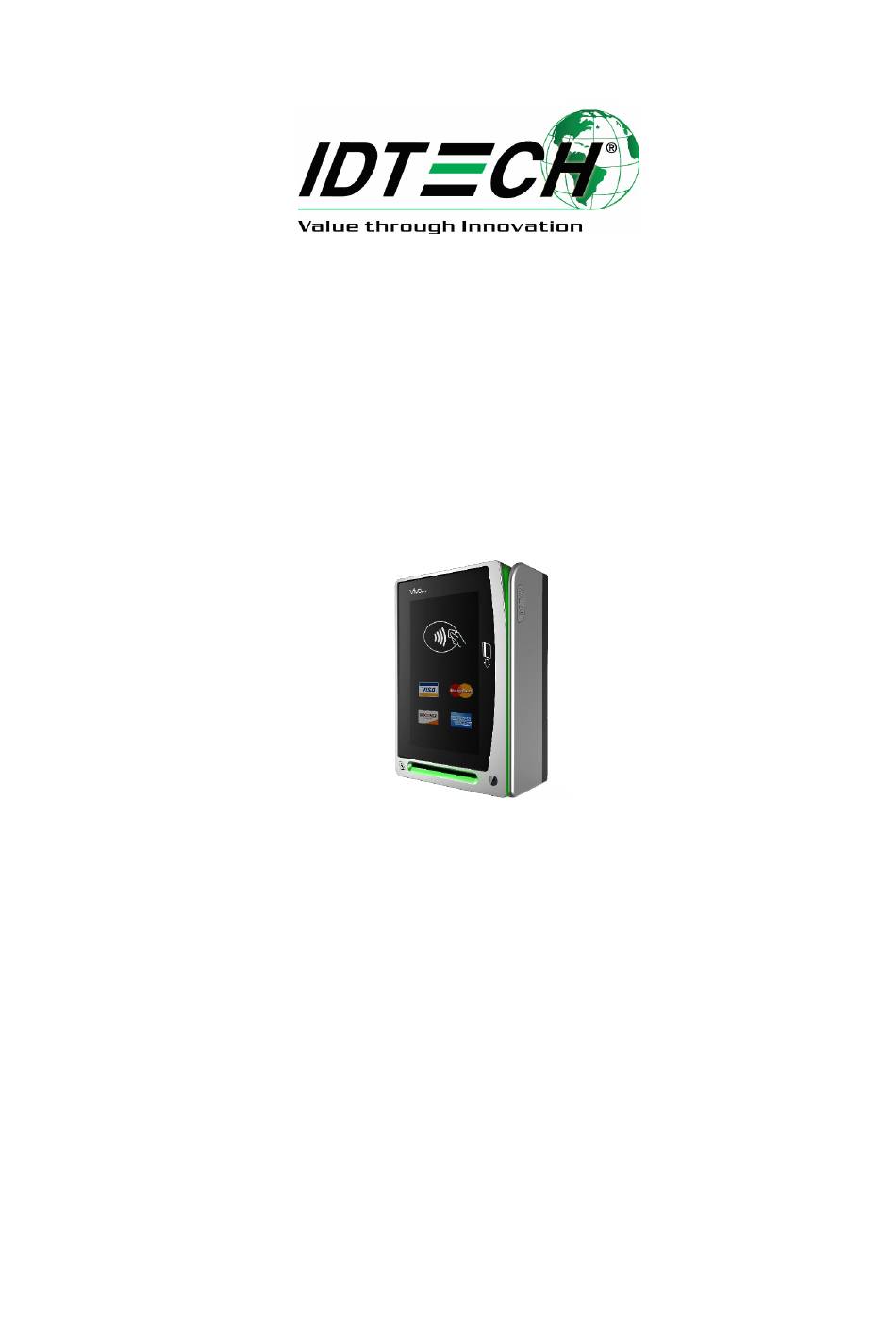

- Page 1 ViVOpay™ VP6800 User Manual Rev D 80159500-001 30 July, 2019 ID TECH 10721 Walker Street Cypress, CA 90630 (714) 761-6368 www.idtechproducts.com support@idtechproducts.com...
- Page 2 ID TECH. While every effort has been made to ensure the accuracy of the information provided, ID TECH assumes no responsibility or liability for any unintentional errors or inaccuracies that may appear in this document.
-
Page 3: Table Of Contents
Table of Contents 1. OVERVIEW ............................... 4 1.1 Integration Location ..........................4 1.2 Integration Options ..........................4 1.3 Encryption ..............................4 2. FEATURES ..............................5 3. SPECIFICATIONS ............................6 4. AGENCY APPROVALS AND COMPLIANCES ....................7 5. COMMUNICATIONS ..........................7 5.1 Audio Support ............................ -
Page 4: Overview
1. Overview The all-new ViVOpay VP6800 by ID TECH is a state-of-the-art, 3-in-1, PCI PTS 5.x certified unattended payment device that can accept magstripe, chip card (EMV), and/or NFC/contactless payments. The unit features a 4.3-inch high-luminosity color touchscreen display capable of supporting PIN-on-glass transactions and can also display video advertisements when it is not being used for menu displays or customer interactions. -
Page 5: Features
Consult your ID TECH representative to learn about all available options involving key injection. As a PCI-validated SRED device, the ViVOpay VP6800 conducts periodic self-checks and incorporates tamper detection features which, if triggered, cause automatic zeroization of sensitive data and keys. Because of its SRED features, the VP6800 is fully capable of being incorporated into a P2PE certified solution. -
Page 6: Specifications
3. Specifications Hardware MTBF 300000POH Transmitter Frequency 13.56 MHz +/- 0.01% Transmitter Modulation ISO 14443-2 Type A, Type B ISO 18092 Peer-to-Peer Typical Read Range 0 to 4 cm Memory Main: 8MB flash iMXRT1052 (video): 32MB SDRM, 128MB NAND flash 2 SAM slots, microSD Physical Length... -
Page 7: Agency Approvals And Compliances
MasterCard o Visa 5. Communications The ViVOpay VP6800 can communicate with a host via serial (RS-232), Wi-Fi, Bluetooth, USB, or Ethernet connections. The diagram below illustrates the layout of various ports. 5.1 Audio Support While the VP6800 does not have an internal speaker, it can host 16mb .WAV files and connect to an external speaker via the 3.5mm audio jack. -
Page 8: Cable
Note: for development purposes, ID TECH can supply a serial port interface cable that supports RS- 232 or USB. If you wish to develop your own cable, ID TECH uses a JST PADP-12v-1-S housing with JST-SPH-002T-P0.5L crimp terminals. See the schematic above for pin outs. -
Page 9: Basic Operation
8. Installation The sections below describe ViVOpay VP6800 installation. 8.1 Parts List for Development Verify that you have the following hardware for the installation of the ViVOpay VP6800: • Cable 80159217-001 Page | 9... -
Page 10: Reader Installation
8.2 Reader Installation Mount the unit according to the drawings shown, with M3 studs spaced 65mm apart horizontally and 67mm vertically. For safety reasons, make sure to mount the VP6800 at a height no greater than two meters from the floor. Note: When installing the VP6800, make sure to tighten the mounting studs enough to depress the removal sensor. -
Page 11: Connecting Cable And Power
8.3 Connecting Cable and Power 1. When developing for the VP6800, connect the power supply to the RS-232 interface. 2. Connect the RS-233 interface to PC serial port. Or connect Ethernet interface. 3. Connect the +5VDC power supply to the barrel receptacle on the RS-232 cable. Plug the unit into an AC outlet and verify that the VP6800 lights up. -
Page 12: Bluetooth Connection
2. Operator 1 enters their password. 3. Operator 2 enters their password. If both passwords are correct, removal detection is activated. When performing this process for the first time, the VP6800 asks to users to change their default passwords. To change default passwords: 1. -
Page 13: Setting Up Ip Via Firmware Commands
8.6.2 Setting Up IP via Firmware Commands To use firmware commands to set up IP configuration, refer to the NEO II Serial Interface Developer's Guide. 8.7 Wi-Fi Connection Make sure to configure Wi-Fi before using wirelessly connecting with the host. To set up Wi-Fi parameters, refer to the NEO II Serial Interface Developer's Guide. - Page 14 Common No Beeper “Need More Device activated but not ready for Key” sensitive functions. “Self –test Fail” The reason should be due to missing working keys, device is suspended due to self-test fail or sensitive limitation, etc. Ready No Beeper “Welcome”...
-
Page 15: Security Guide
8.8.2 Security Guide The VP6800 is an unattended device. Contact your ID TECH representative or send an e-mail to support@idtechproducts.com if you have any questions involving the product's daily use. We recommend you conduct daily checks of the device as follows: •... -
Page 16: Troubleshooting
To facilitate integration of the VP6800 into vending, POS, and other environments, ID TECH makes available a Universal SDK that enables the rapid development of software apps for the VP6800 using C# on Windows or C++ on Linux. To obtain the Universal SDK, go to the ID TECH Knowledge Base at https://atlassian.idtechproducts.com/confluence/display/KB/Knowledge+Base+-+Home...
