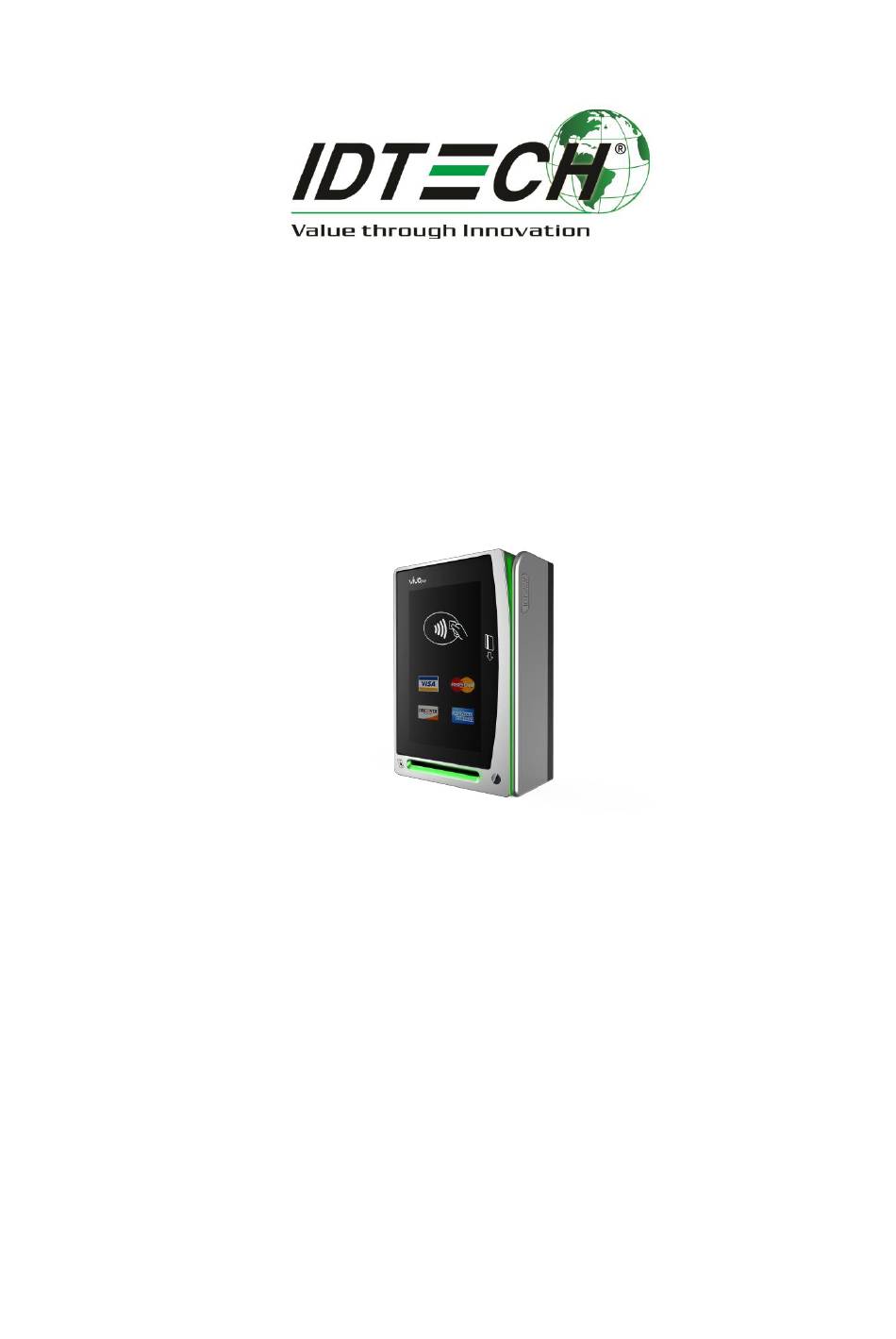

- Page 1 ViVOpay™ VP6800 User Manual Rev. A Part Number 80159500-001 ID TECH 10721 Walker Street Cypress, CA 90630 (714) 761-6368 www.idtechproducts.com support@idtechproducts.com...
- Page 2 The services and hardware are provided "as is" and "as-available" and the use of the services and hardware are at its own risk. ID TECH does not make, and hereby disclaims, any and all other express or implied warranties, including, but not limited to, warranties of merchantability, fitness for a particular purpose, title, and any warranties arising from a course of dealing, usage, or trade practice.
-
Page 3: Table Of Contents
Table of Contents OVERVIEW ............................4 FEATURES ............................4 SPECIFICATIONS ..........................5 AGENCY APPROVALS AND COMPLIANCES ................... 6 COMMUNICATIONS ..........................6 BASIC OPERATION ..........................7 INSTALLATION ............................ 7 TROUBLESHOOTING ..........................8 FIRMWARE REFERENCE ........................8 SOFTWARE DEVELOPMENT SUPPORT ....................8... -
Page 4: Overview
1. Overview The all-new ViVOpay VP6800 by ID TECH is a state-of-the-art, 3-in-1 PCI PTS 5.x certified unattended payment device that can accept magstripe, chip card (EMV), and/or NFC/contactless payments. The unit features a 4.3-inch high-luminosity color touchscreen display, capable of supporting PIN-on-glass transactions, and can also display video advertisements when it is not being used for menu displays or customer interactions. -
Page 5: Specifications
PCI PTS 5.x certified with SRED validation Connectivity interface – RS-232, USB 2.0 via micro-USB, Ethernet 10/100M, and optional WiFi/BLE RS-232 port for external peripherals 3.5mm audio jack Optional camera or 2D scanner Supports EVA standard external mounting ... -
Page 6: Agency Approvals And Compliances
EMV Contactless L2: o Amex o Discover o MasterCard o Visa 5. Communications The ViVOpay VP6800 can communicate with a host via serial (RS-232), USB, or Ethernet connections. Refer to the diagram below to see the layout of various ports. -
Page 7: Basic Operation
6. Basic Operation When power is supplied, the VP6800 will boot automatically and illuminate within about 5 seconds. Use cable P/N 80159217-001. Plug the 12-pin Molex connector into the back of the VP6800, and supply 5VDC 1.44A power (via cannon connector at the powered DB9 connection) using an AC0005R-3 (R00111700108) or equivalent power supply. -
Page 8: Troubleshooting
To facilitate integration of the VP6800 into vending, POS, and other environments, ID TECH makes available a Universal SDK that enables the rapid development of software apps for VP6800 using C# on Windows or C++ on Linux. To obtain the Universal SDK, go to the ID TECH Knowledge Base at https://atlassian.idtechproducts.com/confluence/display/KB/Knowledge+Base+-+Home choose the VP6800 from the Product page listings. - Page 9 FCC Regulations This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
