ID Tech VP8300 User Manual

Hide thumbs

Advertisement

Table of Contents

i
VP8300 User Manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP8300 and is the answer not in the manual?

Questions and answers

Related Manuals for ID Tech VP8300

Summary of Contents for ID Tech VP8300

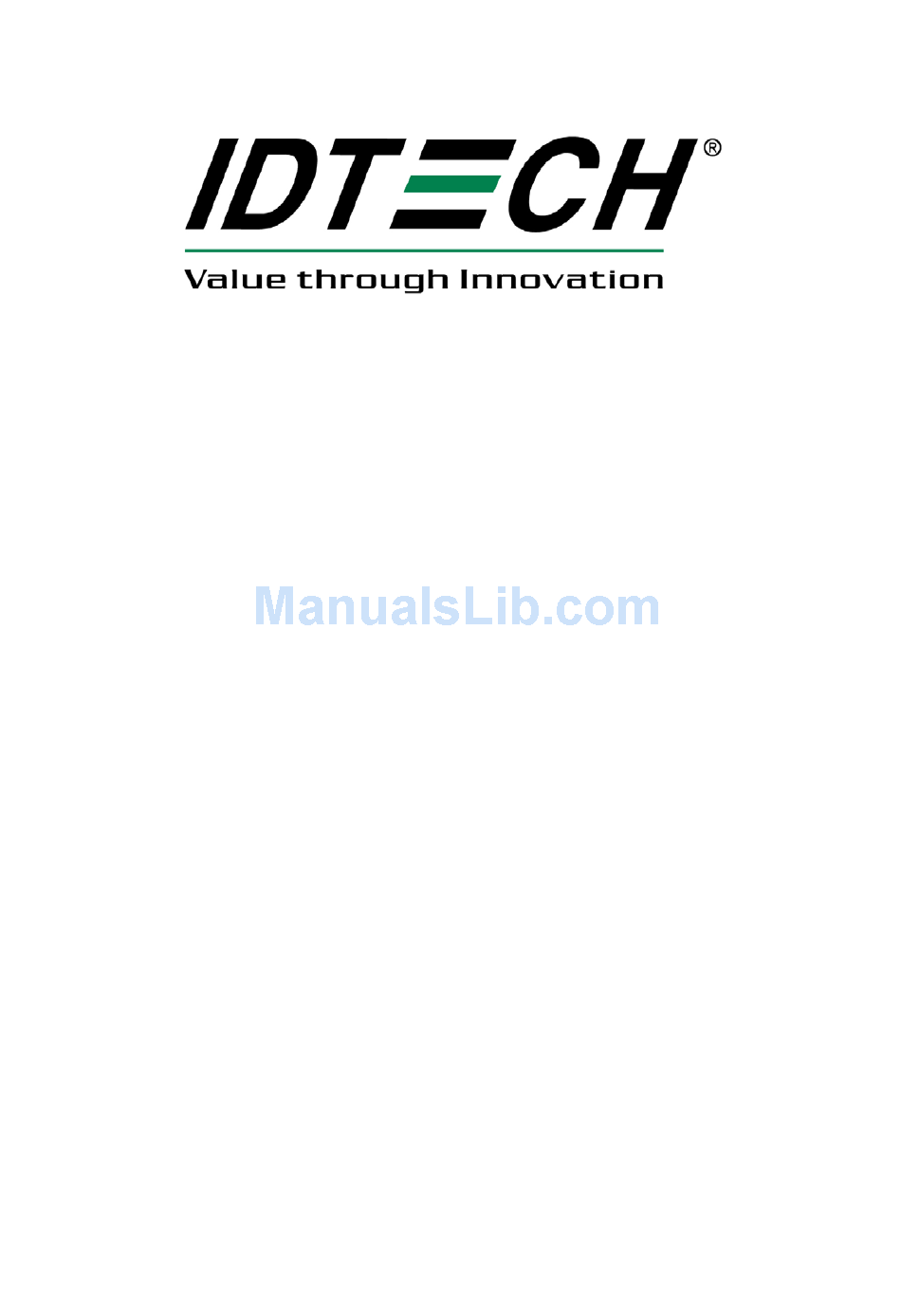

  • Page 1 VP8300 User Manual...
  • Page 2 Warranty Disclaimer: The services and hardware are provided "as is" and "as-available" and the use of these services and hardware are at the user’s own risk. ID TECH does not make, and hereby disclaims, any and all other express or implied warranties, including, but not limited to warranties of merchantability, title, fitness for a particular purpose, and any warranties arising from any course of dealing, usage, or trade practice.
  • Page 3 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the ViVOpay VP8300 not expressly approved by ViVOtech could void the user's authority to operate the ViVOpay VP8300. RF exposure: •...

  • Page 4: Table Of Contents

    ViVOpay VP8300 UserManual Table of Contents Overview ...................... 1 Additional Features ..................1 ViVOpay VP8300 Specifications ..............2 Installing ViVOpay VP8300................3 Firmware Upgrade ..................5 Preparation ...................... 5 Procedure ......................5 ViVOpay VP8300 Troubleshooting ............. 7 Glossary ....................... 8...

  • Page 5: Overview

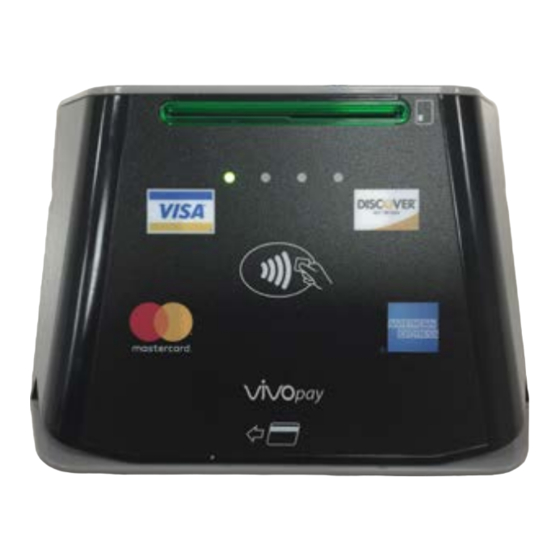

    1 Overview The ViVOpay® VP8300 supports card swipe, contact and contactless payment information processing and authorization at mobile devices. The unit can accept a variety of contactless credit cards, contactless key Fobs. ViVOpay VP8300 supports the following contactless payment applications in the latest release of firmware: •...

  • Page 6: Vivopay Vp8300 Specifications

    ViVOpay VP8300 UserManual 1.2 ViVOpay VP8300 Specifications Hardware MTBF 200,000 hrs. Transmitter 13.56 MHz +/- 0.01% Frequency Transmitter ISO 14443-2 Type A Modulation Rise/Fall Time: 2-3 µsec. Rise, < 1 µsec fall ISO 14443-2 Type B Rise/Fall Time: < 2 µsec. each; 8% - 14% ASK...

  • Page 7: Installing Vivopay Vp8300

    ViVOpay VP8300 UserManual 1.3 Installing ViVOpay VP8300 This section describes how to install the ViVOpay VP8300 on a Desktop. Launch the USDK and get into the main screen, USDK will detect the VP8300 automatically(Share same tool with VP3300). When VP8300 is standby, the far left LED will flash.
  • Page 8 ViVOpay VP8300 UserManual The SDK will go online and get approval from acquire, once acquire approves, the transaction will be completed. Contact transaction: Select “EMV”->”Transaction”->”Start EMV Trans” to start a contact transaction. Insert Contact card to complete the transaction. MSR transaction: Select “MSR”->”Start MSR”...

  • Page 9: Firmware Upgrade

    2.2 Procedure 1. Copy the VP8300 update tool and firmware on the PC. 2. Plug in the micro-USB B type cable to VP8300, connect the USB cable to PC USB port. 3. There should be no beep, and all four LEDs blink once.
  • Page 10 ViVOpay VP8300 UserManual 7. Display “100% done” and device will reset.

  • Page 11: Vivopay Vp8300 Troubleshooting

    ViVOpay VP8300 UserManual 3 ViVOpay VP8300 Troubleshooting The ViVOpay VP8300 is reliable and easy to troubleshoot. Symptom Possible Cause Remedy General Issues ViVOpay VP8300 • ViVOpay VP8300 no Check USB cable does not appear to power. • Ensure power level is be powered on (no correct.

  • Page 12: Glossary

    ViVOpay VP8300 UserManual 4 Glossary Electronic Cash Register (ECR) The combination of a traditional cash register and a POS terminal, often PC-based. ExpressPay from American Express American Express contactless payment product that utilizes contactless technology. Firmware Software that is embedded in a hardware device that allows reading and executing the software, but does not allow modification, e.g., writing or...
  • Page 13 ViVOpay VP8300 UserManual Point of Sale (POS) Refers to terminals used in retail stores with a magnetic stripe reader, keyboard, display and auto dialer modem or IP connection, connected to the telephone/internet network and used for on-line credit/debit authorization. Can also be...

  • Page 14: Customer Support

    ViVOpay VP8300 UserManual 5 Customer Support Contact your local support representative for all support questions.
