Connects2 AdaptivMini ADVM-AU6 Quick Start Manual

A P P L I C AT I O N
Audi A5 2009 - 2017
Audi A6 2009 - 2017
Audi A8 2009 - 2017
Audi Q5 2009 - 2017
Audi Q7 2009 - 2017
For MMI Vehicles with 3 Basic 6.5" Screen, 3G/3G+ 7" Screen, & 8" Screen
F E AT U R E S
• Provides HDMI Input
• Provides Inputs for 2x Cameras (Front/Rear)
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
i
ii
iii
DISCLAIMER
v
Note: Application data is subject to change at any time
A D V M - A U 6
iv

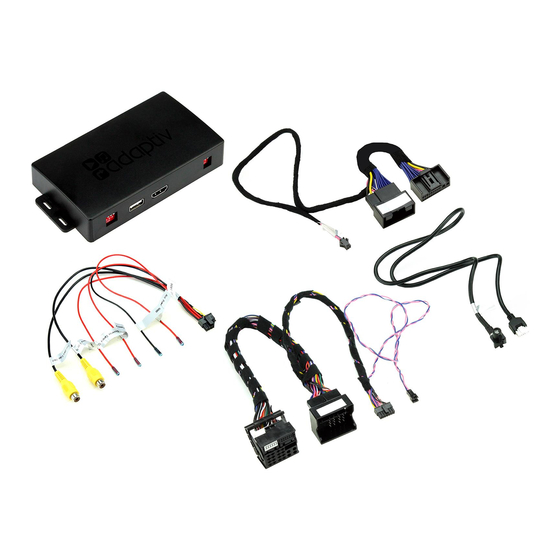

i. Adaptiv Mini Interface
iii. Main Wiring Harness
v. Climate Control Harness
ADVM-AU6_UG_en-GB_v1
Key
ii. A/V Cable
iv. LVDS Cable
