Connects2 CAM-56 User Manual

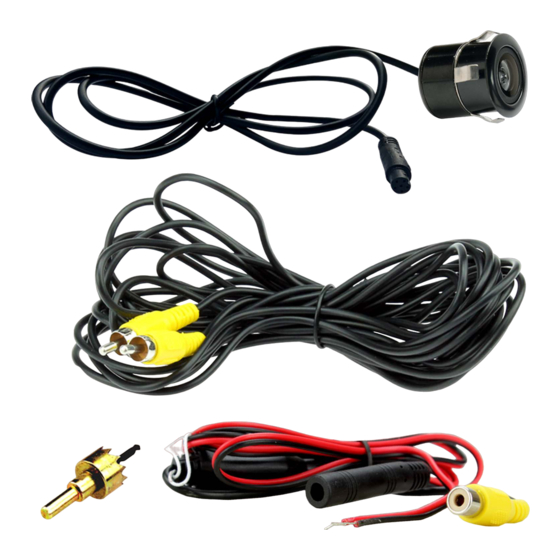

Universal 110 camera in flush mount housing (drill to fit)

U s e r M a n u a l

CAM-56

PRODUCT FEATURES:

Image Sensor: 7090

TV Lines: 480

Resolution: 720 x 480

Minimum Illumination: 0.1 Lux

TV System: NTSC

Waterproof Rating: IP68

Horizontal Angle: 110 Degrees

Vertical Angle: 90 Degrees

Parking Lines: Yes (Removable)

Image Adjustment: Yes (Mirror/Normal)

Enhanced Performance In Low Light: Yes

Video Output: 1.0V p-p 75ohm

Operating Voltage: 12V DC (Negative Ground)

Operating Temperature: -20 Degrees C to +70 Degrees C

DISCLAIMER:

Prior to Installation

Read the manual prior to installation. Technical knowledge is necessary for installation.

Please ensure you use the correct tools to avoid damage to the vehicle or product.

Connects2 can not be held responsible for the installation of this product.

Technical Support

Connects2 want to provide a fast and suitable resolution should you encounter any

technical issues. With this in mind, when contacting Connects2, try to provide as

much Information as possible. This will speed up the process and help us to help you.

Please use our dedicated online technical support centre: support.connects2.com

www.c2vision-eu.com

Universal 110° Camera

in Flush Mount Housing (Drill to Fit)

Table of Contents

Do you have a question about the CAM-56 and is the answer not in the manual?

Page 1 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
Page 2 7. To remove the parking line feature, cut the small Blue looped wire which is located on the camera connection cable. Subscribe to our YouTube Channel for installation guides and tips... www.youtube.com/connects2 www.c2vision-eu.com...
