Connects2 CAM-32 User Manual

U s e r M a n u a l

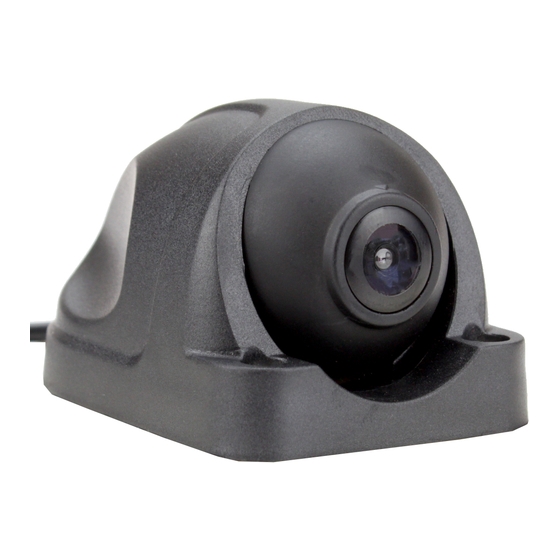

CAM-32
PRODUCT FEATURES:
Image Sensor: 1099 HD CCD
TV Lines: 560
Resolution: 976 x 496
Minimum Illumination: 0.1 Lux
TV System: NTSC
Waterproof Rating: IP68
Viewing Angle: 135 Degrees (Horizontal) 105 Degrees (Vertical)
Electronic Shutter: NTSC 1/60S, PAL 1/50S
Enhanced Performance In Low Light: Yes
Video Output: 1.0V p-p 75ohm
Operating Voltage: 12-24V DC (Negative Ground)
Current Consumption: 138.8 mA @ 13.8V
Operating Temperature: -20 Degrees C to +75 Degrees C
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
The place of installation must be free of moisture and away from heat sources. Please
ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com
Universal Reverse Camera ideal for
Van/Camper Vans
