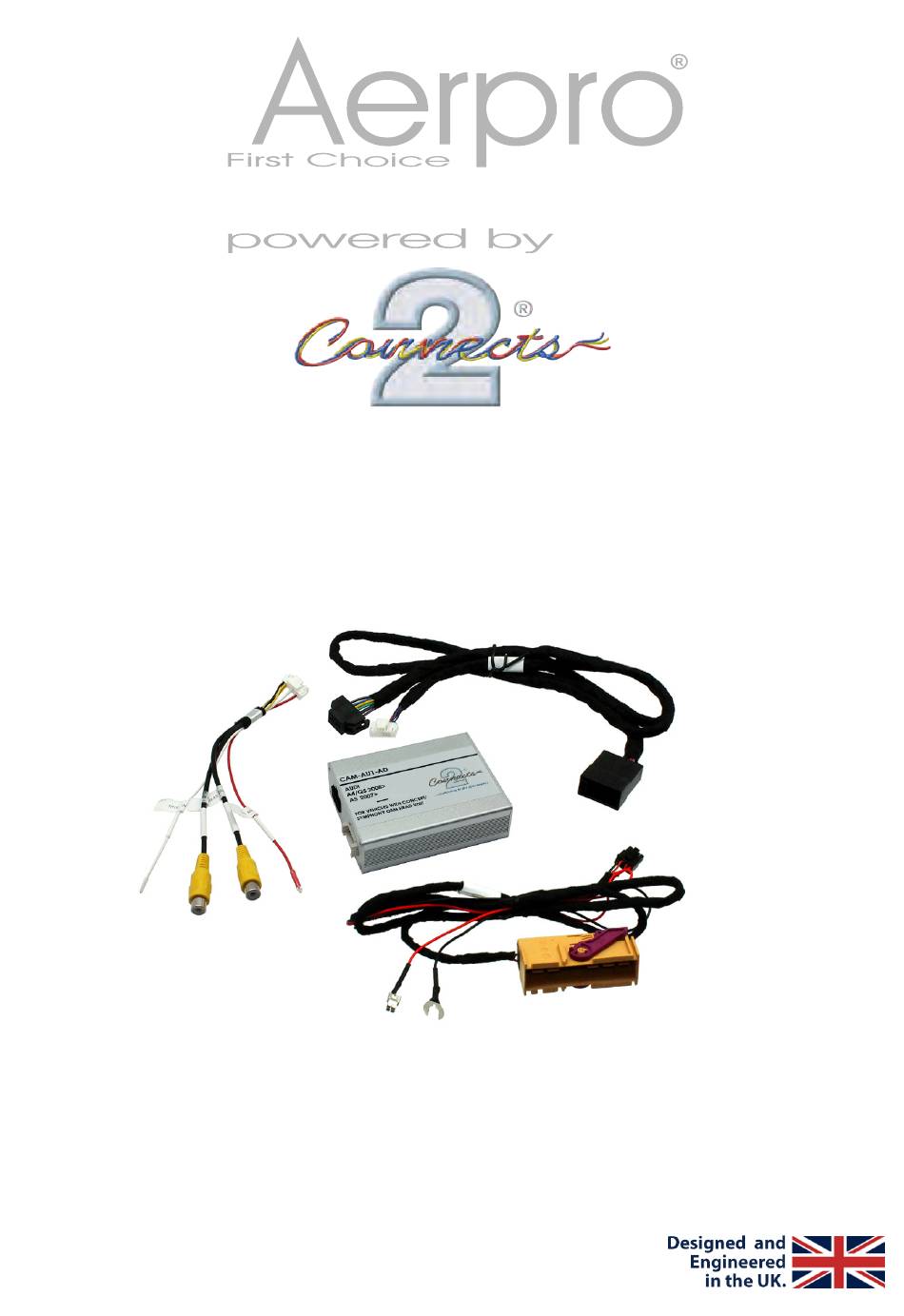

- Page 1 APVAU12 Audi Camera Add On Interface INSTRUCTION MANUAL www.aerpro.com...

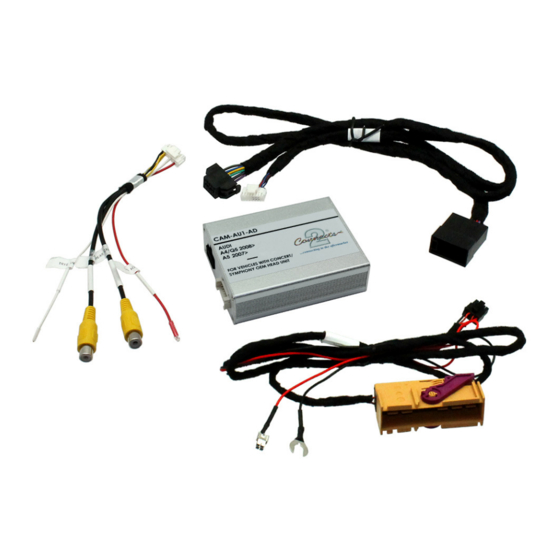

- Page 2 ABOUT THIS PRODUCT... APVAU12 This product allows the addition of an aftermarket reverse camera to the OEM screen in a range of Audi vehicles with Concert/Symphony head units. Product Contents 1. Interface 2. Harness x 3 3. Instruction Fig 1. 1.
- Page 3 3. Locate the fuse box on the side of the dashboard. Take off the cover and locate the 46 way beige connector with the pink latch. Disconnect this and replace with the supplied vehicle power/CAN-Bus harness (Fig 1, 2). Connect the flying red wire to an ACC fuse and the black wire to Ground. www.connects2.com...
- Page 4 FITTING GUIDE 4. Set the dipswitches on the interface according to your required setup. Dipswitch On/Off Function Radar Image Enabled Radar Image Disabled Front Camera Off Front Camera On Guidelines on Guidelines off Not Used Not Used 5. Connect the white 16 way camera harness connector (Fig 1, 3) to the interface.
