Summary of Contents for Connects2 adaptiv mini ADVM-BM1

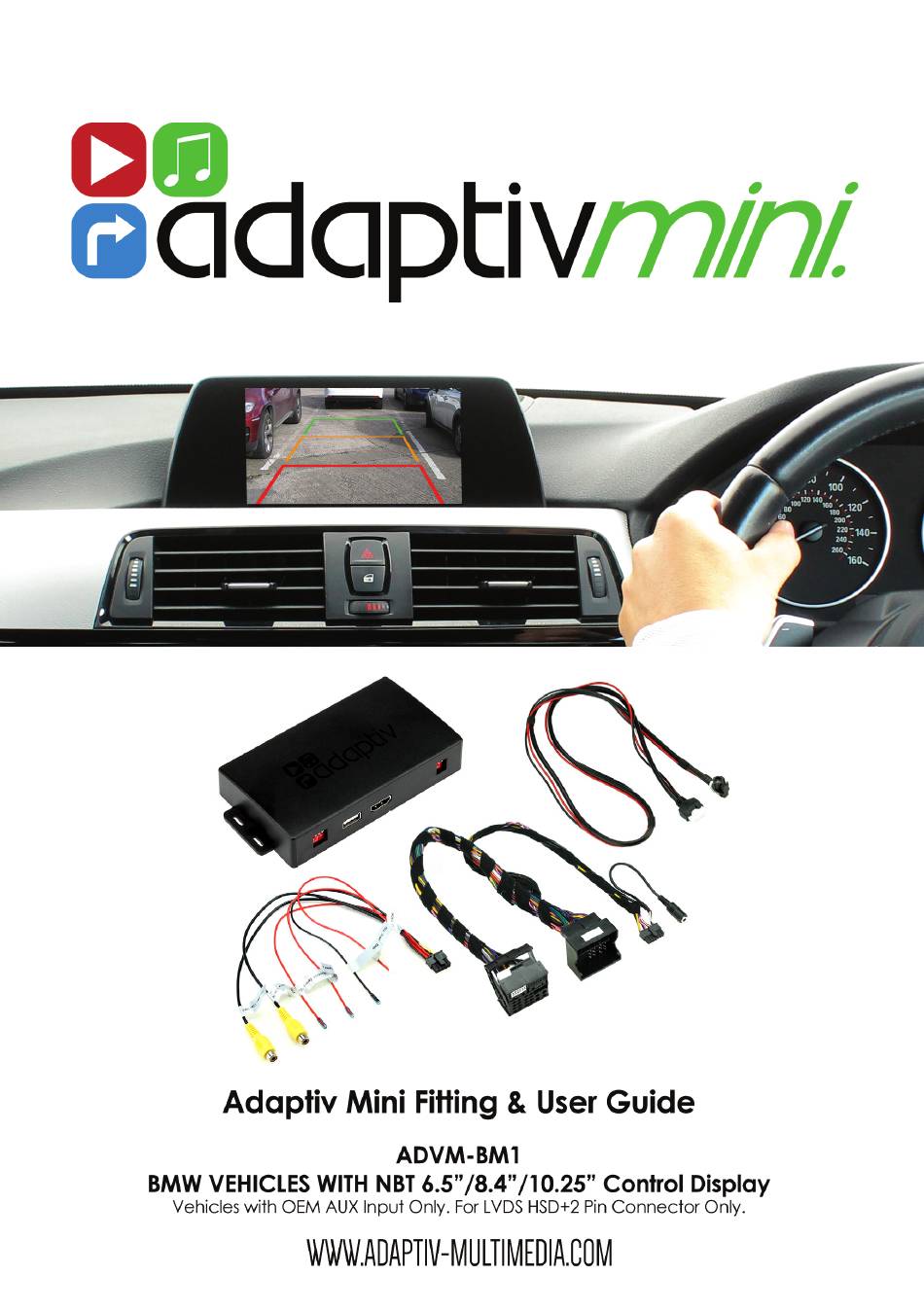

- Page 1 ADVM-BM1_IG_en-GB_V2 WWW.ADAPTIV-MULTIMEDIA.COM...
- Page 2 Connects2 cannot be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible. This will speed up the process and help us to help you.
- Page 3 CONNECTION DIAGRAM DIP SWITCH SETTINGS DIP 1 DIP 3 If the vehicle has OEM If the vehicle has after- reverse camera market reverse camera ( ( ON: YES OFF: NO ) ON: YES OFF: NO ) DIP 4 DIP 5 DIP 2 6.5”...
- Page 4 USER GUIDE Button Config Menu Button Back Button HDMI Access HDMI Access Select AUX In from the OEM Source Menu. Hold MENU for 2 seconds to switch between OEM screen and Adaptiv Mini HDMI screen. Hold MENU for 2 seconds to exit HDMI. Video In Motion Warning - 10 MPH Hold BACK for 2 seconds to disable the video in motion warning message Rear and Front Camera Access...
