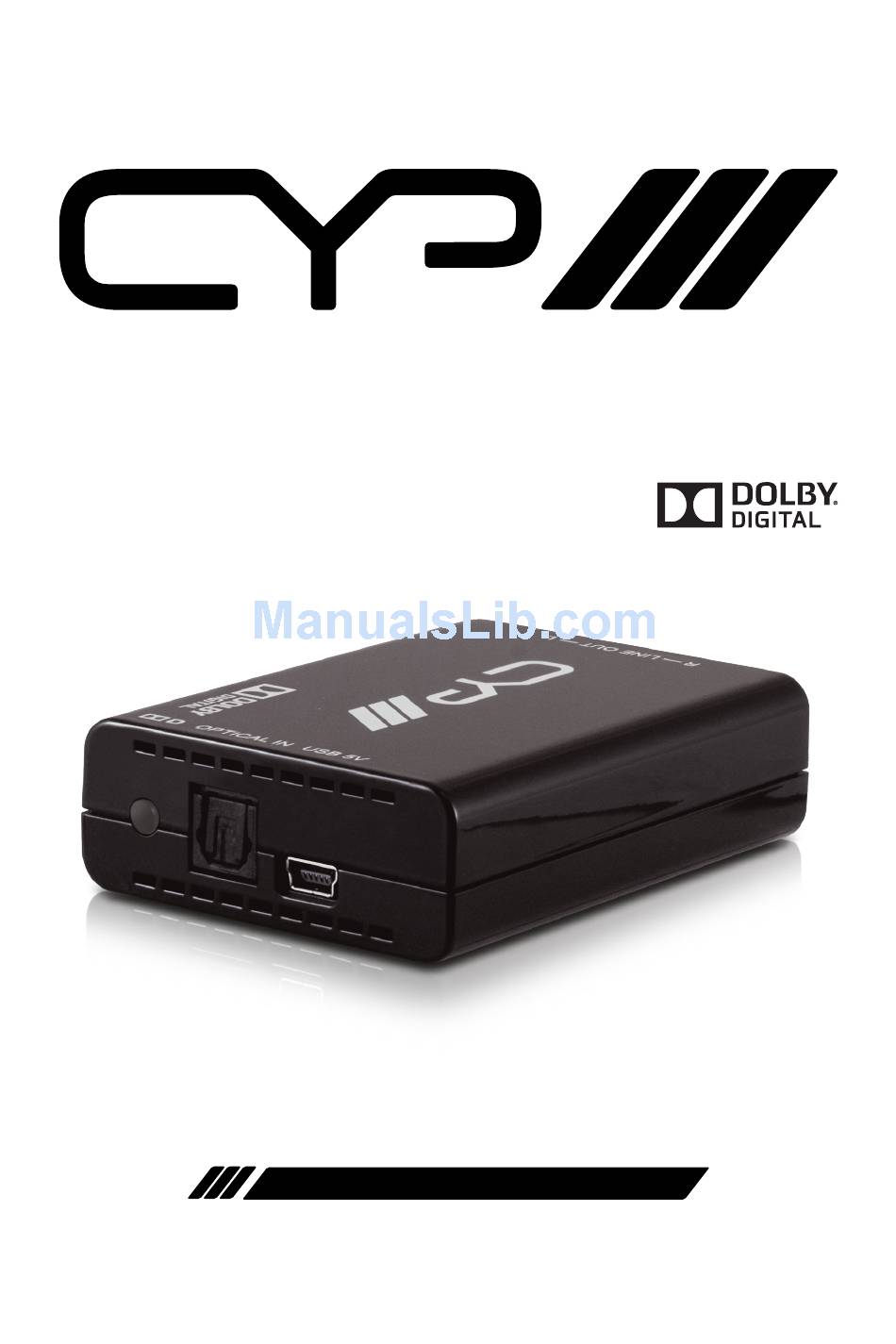

- Page 1 AU-D1D Optical to L/R Stereo Audio Converter with Dolby® Digital Decoder OPERATION MANUAL...
- Page 3 DiSCLAimeRS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAfety pReCAutiONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONteNtS 1. introduction .........1 2. Applications .........1 3. package Contents ........1 4. System Requirements ......1 5. features ..........2 6. Operation Controls and functions ..3 6.1 Front Panel ..........3 6.2 Rear Panel ........... 3 7. Connection Diagram ......4 8. Specifications ........5 9. -
Page 6: Introduction
1. iNtRODuCtiON The Optical to L/R Stereo Audio Converter (DAC) with Dolby® Digital Decoder provides the ideal solution for converting an optical digital audio signal to analogue stereo audio. With audio sampling rate support up to 48 kHz (Dolby Digital)/96 kHz (LPCM) and I/O data rate support up to 24- bit, it provides high quality sound conversion. -
Page 7: Features
5. feAtuReS Supports optical digital audio signal input and conversion into analogue audio signal L/R output Supports uncompressed digital LPCM stereo or Dolby Digital 5.1CH audio inputs Supports LPCM audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz) Supports Dolby Digital audio sampling rates of 32, 44.1 and 48 kHz Supports Dolby Digital audio downmixing to 2-channel audio... -
Page 8: Operation Controls And Functions
6. OpeRAtiON CONtROLS AND fuNCtiONS 6.1 front panel OPTICAL IN USB 5V Dolby/pCm LeD indicator: When the source audio is encoded with Dolby Digital the LED will illuminate. OptiCAL iN: Connect the Optical input to an Optical digital audio source, such as a Games Console, HDTV or Set-top Box. uSB 5v: Connect the USB power port to a any powered USB with a Mini-USB cable. -
Page 9: Connection Diagram
7. CONNeCtiON DiAgRAm hDtv without Analogue Audio Output Digital Optical input power Analogue Stereo Output Av Receiver (with a spare analogue input) -
Page 10: Specifications
8. SpeCifiCAtiONS Input Port 1×Optical Output Port 1×L/R Power Supply Powered by USB bus Output Level 1Vrms ± 0.1 T.H.D+N <0.01% Frequency Response <0.5 dB >80 dB Crosstalk < -110 dB Dimensions 55 mm (W)×82 mm (D)×22.5 mm (H) Weight 65 g Chassis Material Plastic... - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com Manual v1.03...
