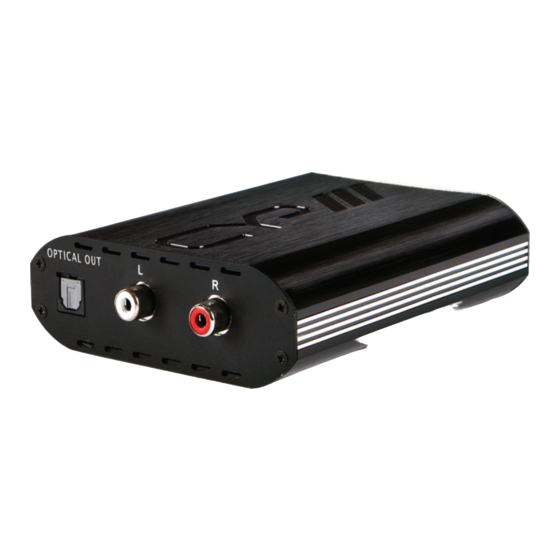

  • Page 1 AU-D150 USB/Optical Digital Audio Converter (DAC) OPERATION MANUAL...
  • Page 2 Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Connection Diagram Specifications...
  • Page 3: Package Contents

    1. Introduction USB/Optical Digital Audio Converter (DAC) will convert a digital audio signal to analogue, whilst simultaneously outputting a digital optical signal. It is designed for easy installation of USB or optical sources and can be powered by USB or via the included PSU.
  • Page 4: Operation Controls And Functions

    4. Operation Controls and Functions 4.1 Front Panel MINI USB IN OPTICAL IN POWER 1. Power LED: The red LED will illuminate when the power is connected with AC wall outlet. 2. LINK: The LED will illuminate in blue when both the source and the display are sync together.
  • Page 5: Connection Diagram

    5. Connection Diagram Specifications Input Ports 1 x Mini USB. 1 x Optical (Toslink) Output Ports 2 x Analogue Audio L/R (RCA), 1 x Optical (Toslink) USB Sampling 48/44.1KHz / 16 bits Frequency Optical Sample Up to 192 kHz / 24 bits Frequency Power Supply 5V DC - PSU Supplied or USB Cable powered...
  • Page 6 Human body model: ± 8kV (air-gap discharge) ESD Protection ± 6kV (contact discharge) Weight (g) Chassis Material Plastic Colour Black Operating Temp. Operating from 0°C ~ 40°C Page 4...
  • Page 7 Notes:...
