Summary of Contents for CYP AU-D1

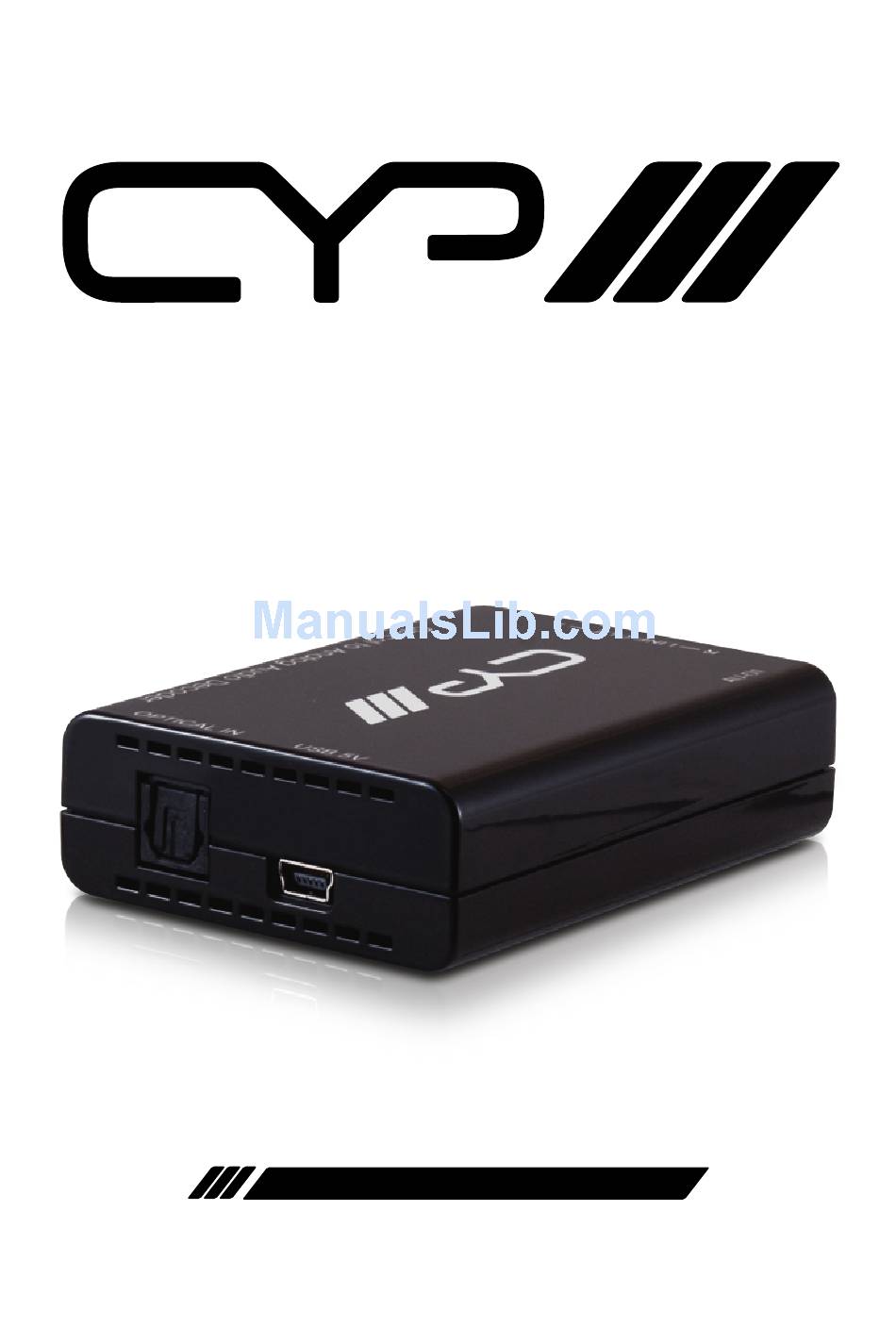

- Page 1 AU-D1 Optical to L/R Stereo Audio Converter OPERATION MANUAL...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 7. Connection Diagram ......10 8. Specifications ........11 9. -
Page 5: Introduction
1. INTRODUCTION The Optical to L/R Stereo Audio Converter (DAC) provides the ideal solution for converting an Optical digital audio signal to analogue stereo audio. With support for audio sampling rates up to 96 kHz/24-bit, it provides high quality sound conversion. This device is perfect for use in digital recording systems, computer audio systems or digital mixing consoles and can be powered from any spare USB port allowing it to be used with USB equipped HDTVs, Blu-ray... -
Page 6: Features
5. FEATURES Supports optical digital audio signal input and conversion into analogue stereo audio output Supports uncompressed digital LPCM stereo audio input Supports LPCM audio sampling rates up to 96 kHz (including 32, 44.1, 48, 88.2 and 96 kHz) Supports S/PDIF bitstream 24-bit of data for the left and right channels Compact, elegant design and easy to install ®... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL IN USB 5V OPTICAL IN Connect the Optical input to an Optical digital audio source, such as a Games Console, HDTV or Set-top Box. USB 5V Connect the USB power port to any powered USB port with a Mini- USB cable. -
Page 8: Rear Panel
6.2 Rear Panel LINE OUT R/L LINE OUT Connect the L/R analogue audio output to the input of your AV Receiver or audio system. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM HDTV without Analogue Audio Output Digital Optical Power Output Analogue Stereo Output AV Receiver (with a spare analogue input) -
Page 10: Specifications
8. SPECIFICATIONS Input Port 1×Optical Output Port 1×L/R (2×RCA) Power Supply Powered by USB bus Output Level 1.800 Vrms THD+N < 0.01 % Frequency Response < 0.5 dB > 104 dB Crosstalk < -120 dB Dimensions 55 mm (W)×80.5 mm (D)×22.5 mm (H) Weight 65 g Chassis Material...
