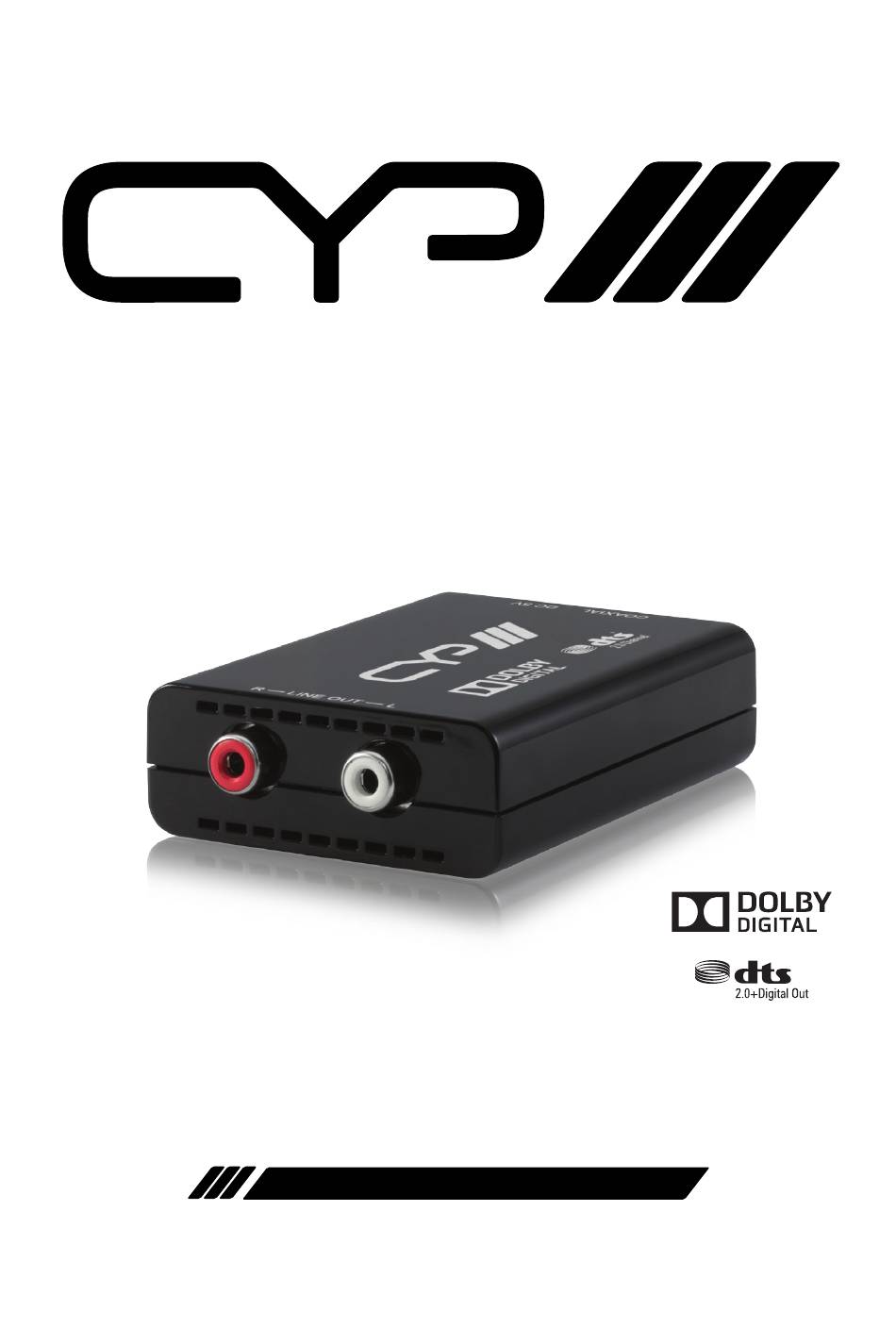

- Page 1 AU-D5D Coaxial to Analogue Stereo Audio Convertor with Dolby® Digital & DTS® 2.0 Decoder OPERATION MANUAL...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 8 7. Connection Diagram ......9 8. Specifications ........10 8.1 Technical Specification ......10 8.2 Audio Specifications: ......10 8.3 Input Audio to Output Audio Chart: .11... -
Page 6: Introduction
1. INTRODUCTION ® The Coaxial to Analogue Audio Converter (DAC) with Dolby Digital & 2.0 Decoder provides the ideal solution for converting an coaxial digital audio signal to analogue stereo audio. It provides high quality sound conversion. The Dolby Digital & DTS 2.0 function guarantees that Dolby digital audio signals are downmixed to analogue stereo without loss of quality. -
Page 7: Features
5. FEATURES Supports coaxial digital audio signal input and conversion into analogue audio signal L/R output Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz) Supports DTS 2.0 5.1CH audio sampling rates up to 96 kHz Supports Dolby Digital 5.1CH audio sampling rates of up to 48 kHz Supports Dolby Digital &... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel COAXIAL DC 5V Dolby/DTS LED Indicator: When the source audio is encoded in Dolby Digital the LED will illuminate in green. When the source audio is encoded in DTS 2.0 the LED will illuminate in red other types of audio the LED will not illuminate. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM HDTV without Analogue Audio Output Digital Coaxial Power Supply Input Analogue Stereo Output Amplifier (with a spare analogue input) -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specification Input Port 1×Coaxial Output Port 1×L/R (2×RCA) Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Output Level 2Vrms ± 10% THD+N <0.007% Frequency Response ±1 dB >100 dB Crosstalk <-119 dB Dimensions 55 mm (W)×75.5 mm (D)×22.5 mm (H)/ Jacks Excluded 55 mm (W)×86 mm (D)×22.5 mm (H)/ Jacks Included... -
Page 11: Input Audio To Output Audio Chart
8.3 Input Audio to Output Audio Chart: AUDIO INPUT INPUT FORMAT AUDIO L/R OUTPUT LPCM 2CH Analogue 2CH COAXIAL Dolby Digital Decoding Lt/Rt Decoding Lo/Ro 9. ACRONYMS ACRONYM COMPLETE TERM Digital to Analogue Converter Audio Connector (Radio Corporation of America) Signal-to-noise Ratio Total Harmonic Distortion Universal Serial Bus... - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
