Configuring the BSAP's IP Address or
Static Discovery Using the CLI
By default, DHCP is enabled on the BSAP. However, if static
configuration is required for the IP address or BSAP discovery for
the BSAP, users can access the BSAP's CLI using either a VT100
terminal emulation program or an SSH client.
To access the BSAP CLI using a VT100 terminal emulation
program:
1. Connect a DB-9 to RJ-45 serial cable (rollover cable) to the
AP's CONSOLE port, and connect the other end of the serial
cable to the PC.
2. Open a VT100 terminal emulation program with the following
settings: 115,200 data rate, eight data bits, no parity bits,
and 1 stop bit (no flow control).
3. Select <Enter> to access the CLI. At the prompt, enter the
user name adm1n and the password blue1socket.
To access the BSAP CLI using an SSH client, complete these
steps:
1. Ensure that the BSAP is connected to a controlling computer
(using the provided RJ-45 Ethernet cable).
2. Specify that the computer's TCP/IP setting is On or Enabled
by navigating to Control Panel and select Network
Connections.
3. Double-click the connection of your network interface card
and select Internet Protocol (TCP/IP).
4. Select Properties then specify that the TCP/IP setting is
enabled.
5. Set your PC to a static IP address of 192.168.190.2 with a
subnet mask of 255.255.255.0.
6. Access the BSAP's command line interface (CLI) using an
SSH client.
7. Open an SSH connection using the unit's default IP address
(192.168.190.1) and port 2335 connected to the LAN1 port
on the AP.
8. At the prompt, enter the user name adm1n and the
password blue1socket.
4

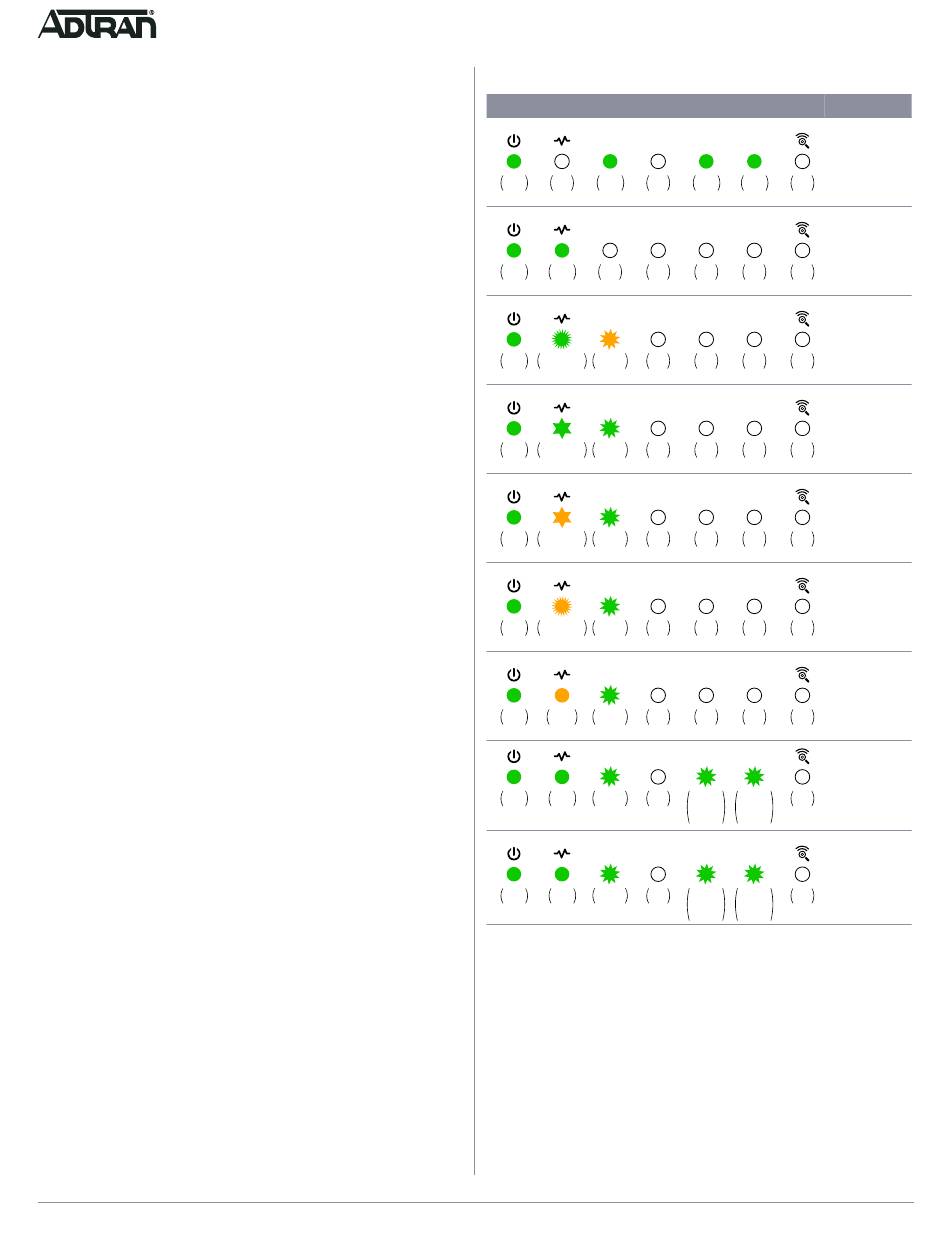

BSAP 3040/3045 LED Descriptions
LED Array
2.5 GE 1 GE
Green Green
Off Off
Solid Solid
2.5 GE 1 GE
Green Green
Off Off
Solid Solid
2.5 GE 1 GE
Green Green Orange
Off
Solid Flashing Fast Flashing
2.5 GE 1 GE
Green Green Green
Off
Solid Flashing Slow Flashing
2.5 GE 1 GE
Green Orange Green
Off
Solid Flashing Slow Flashing
2.5 GE 1 GE
Green Orange Green
Off
Solid Flashing Fast Flashing
2.5 GE 1 GE
Green Orange Green
Off
Solid Solid Flashing
2.5 GE 1 GE
Green
Green Green
Off
Solid Solid Flashing
2.5 GE 1 GE
Green Green Green
Off
Solid Solid Flashing
Flash speed varies with data rate. If the data rate is slow, LED flashes slowly. If the
data rate is extremely slow, the LED may appear solid green.
BSAP State
2.4 GHz 5 GHz
Boot Loader
Initialization
Green Green
Off
Solid Solid
2.4 GHz 5 GHz Operating
System
Initialization
Off Off Off
2.4 GHz 5 GHz
LAN
Initialization
Off Off Off
2.4 GHz 5 GHz
Discovering
vWLAN
Off Off Off
2.4 GHz 5 GHz Firmware
Upgrade
(Download)
Off Off Off
Firmware
2.4 GHz 5 GHz
Upgrade
(writing or
verifying)
Off Off Off
2.4 GHz 5 GHz Firmware
Upgrade
Complete
Off Off Off
2.4 GHz 5 GHz
Operational
with No
Activity on
Green Green
Off
Flashing Flashing
Radios
2.4G 5G
LED only LED only
2.4 GHz 5 GHz
Operational
with Activity
on Radios
Green Green
Off
Flashing Flashing
2.4G 5G
LED only LED only
