4) Alarm
: If Return Electrode is dismounted from the device or its cable is broken, Return Fault
Indicator flickers and alarm tone sounds, cutting off the output.
- For dual pad
1) Function
: It monitors the contact area of pad as well as mounting and cable breaking status of
Return Electrode.
2) Component
: DRM Setting Lamp, DRM Setting Switch, Single pad or Dual pad Selection Switch,
Dual pad Mode Lamp, Assist Resistance Indicator, Return Fault Indicator
3) How to use
① 'Single pad Mode Lamp' lights when applying power to the device as the default is
single pad mode. Press
to switch on 'Dual pad Mode Lamp'.
② Mount Return Electrode to Return Electrode jack.
③ Patch the pad on the patient's body as closely as possible so that more Assist
Resistance Indicators could light for the safety, if possible. (Refer to the '5) Relation
between the light counts of Assist Resistance Indicator and pad resistance' in the next
page.)
④ See 'Assist Resistance Indicator' change. If more than three lights are turned on, it is
possible to use them.
4) Alarm

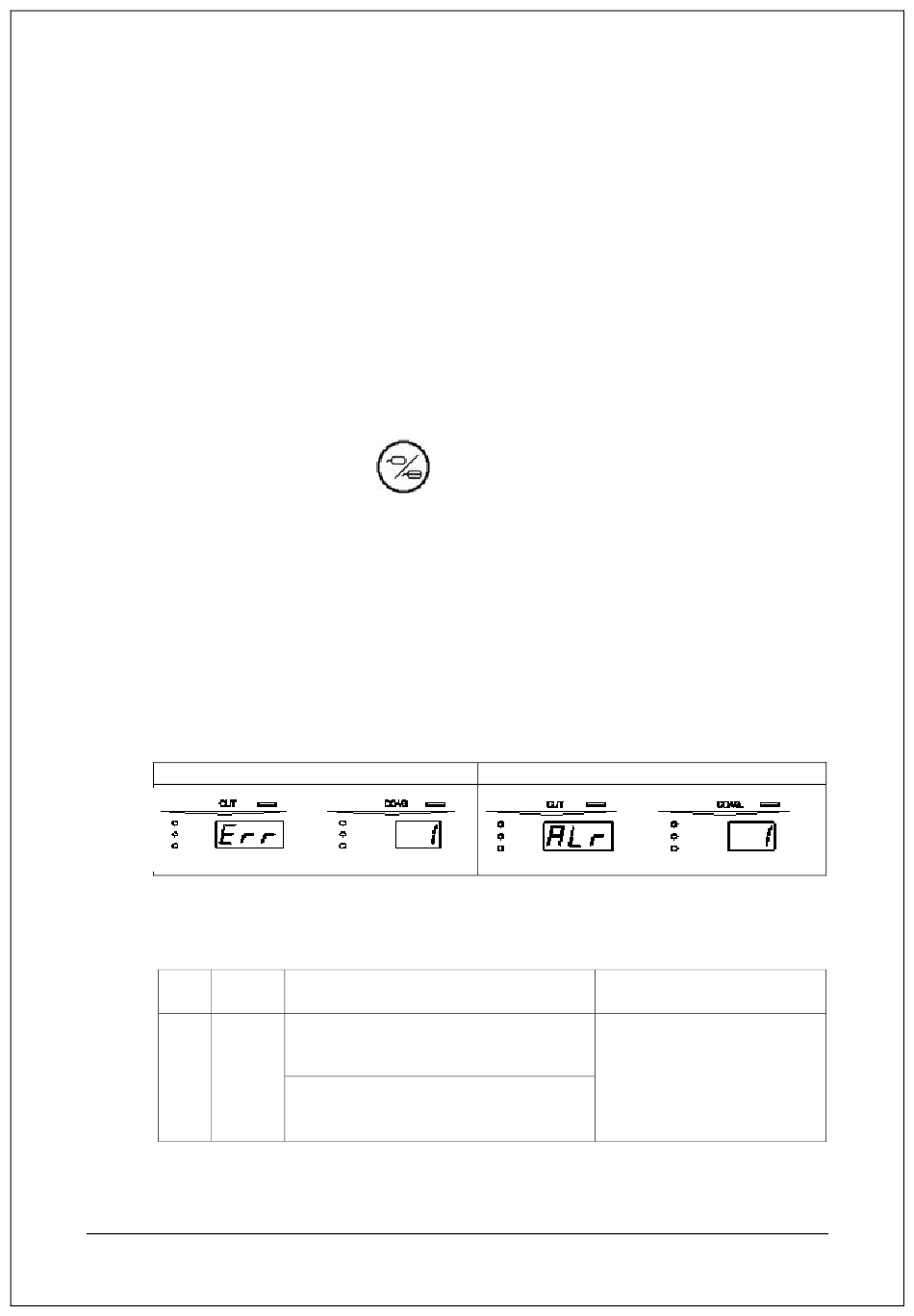

(1) Error
In case of error occurrence
-
I
f
a
n
error occurs, check out the error number displayed in equipment, and contact DRE Isales
agent or DRE
(2) Alarm
Alarm Alarm
No. Display
When connecting 'Dual Pad' while using
the single pad mode
1 "ALr 1"
When the 'Single Pad' is generated from
'Neutral plate' jack while using the single
pad mode
(Single pad or Dual pad Selection Switch) in order
In case of alarm occurrence
Alarm Situation How to cancel the alarm
Connect 'Single Pad' to 'Neutral
plate' jack.
3. Specifications22
