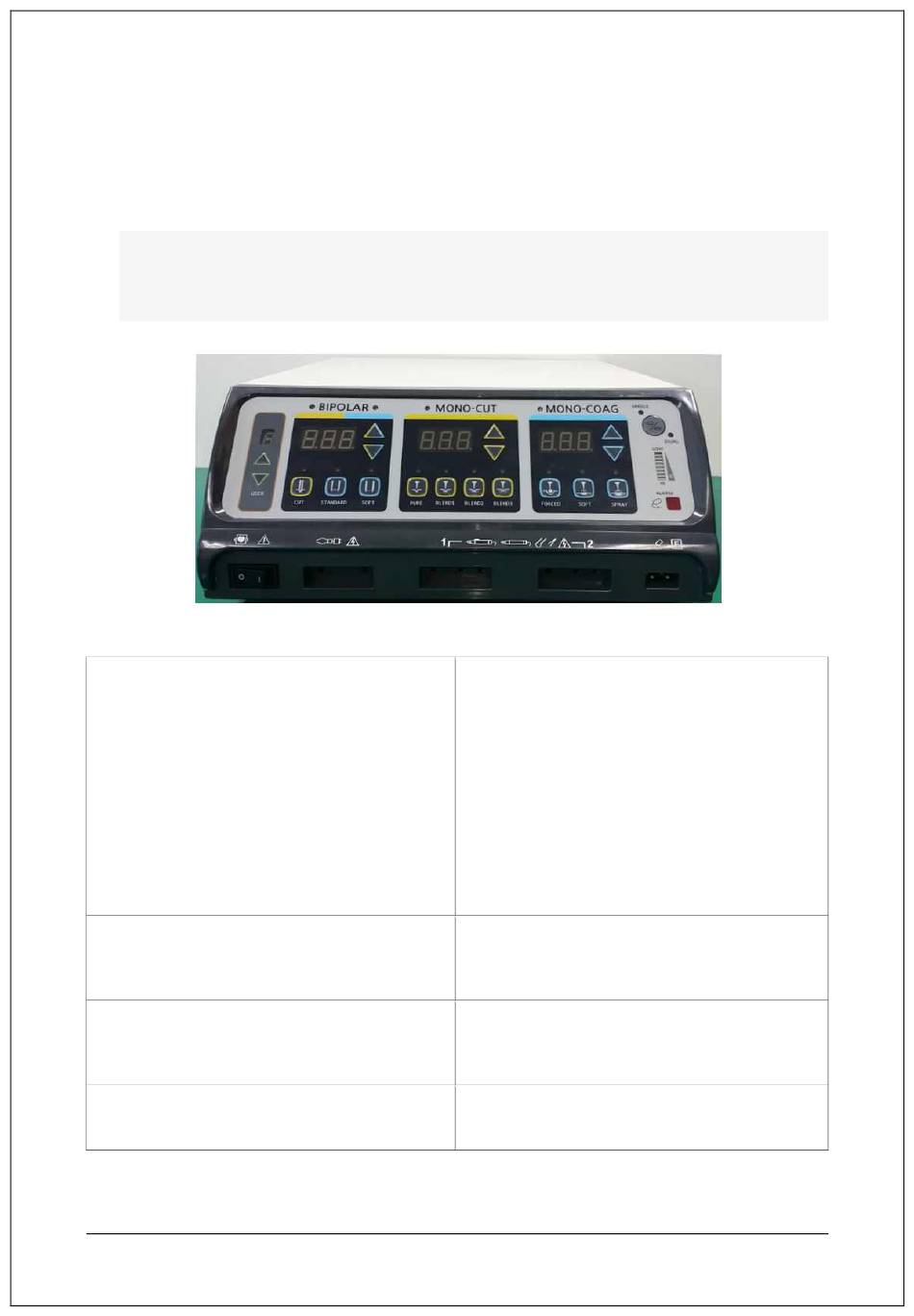

2.3 Controls, Indicators and Receptacles

- The names of the accessories that are used in this manual I explained
- Name and description of the accessories you want, because you only use in
this manual, may be different from the generally-class to name / description
there
1. DRM(Daiwha Return electrode Monitoring) Set
Indicator
Twinkles when Dual pad is selected but DRM
Setting Switch is not pressed yet. After DRM
Setting Switch is pressed, light goes on.
3. Single Pad or Dual Pad Selection Switch
Pressing this switch will select the Single Pad
return electrode or the Dual Pad return
electrode.
5. Mono-polar Cut Mode Activation Indicator
This lamp lights on when the unit is activated in
Mono-polar cut modes
7. Bi-polar Power Increase Switch
Increases the output power level of the Bi-polar
mode when depressed.
2. DRM Setting Switch
Push when in the Dual pad mode after a dual
pad electrode has been properly applied to the
patient and connected to the unit. Pressing this
switch notifies the unit that the present return
circuit resistance represents safe return
electrode placement and causes DRM Set
Indicator goes on.
The unit will then monitor the patient's resistance
and produce an alarm if the resistance rises by
more than 20+5%, or if a short is detected in the
patient circuit.
4. Bi-polar Mode Activation Indicator
This lamp lights on when the unit is activated in
Bi-polar modes
6. Mono-polar Coagulation Mode Activation
Indicator
This lamp lights on when the unit is activated in
Mono-polar coagulation modes
8. Bi-polar Power Decrease Switch
Decreases the output power level of the Bi-polar
mode when depressed.
