2.2

Features (EtherNet/IP)

• Two EtherNet/IP ports
• Both RJ45 and M12 connectors are possible for the physical network interface
• Max. read process data: 1448 bytes
• Max. write process data: 1448 bytes
• Max. process data (read + write, in bytes): 2896 bytes
• Beacon Based DLR (Device Level Ring) and linear network topology supported
• 10/100 Mbit, full/half duplex operation
• Web server
• FTP server
• Customizable identity information
• CIP parameter object support
2.3

Overview

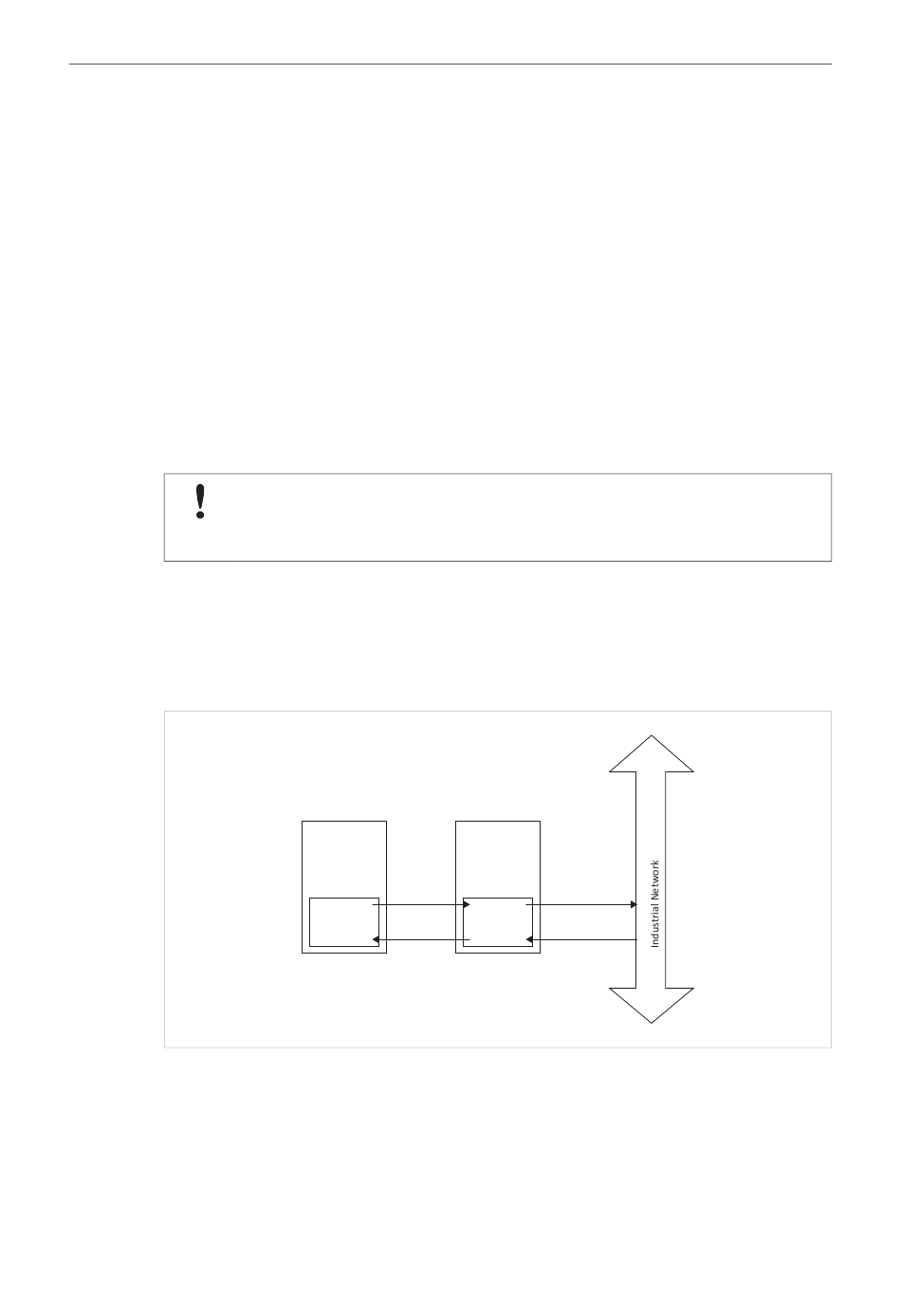

The picture below shows the data flow in the Anybus CompactCom B40 Modbus Serial -
EtherNet/IP. The application sets up the Modbus RTU communication, and the Anybus
CompactCom maps the process data to the industrial network/fieldbus.
Fig. 1
Anybus ® CompactCom ™ B40 Modbus Serial EtherNet/IP Network Guide
All Anybus CompactCom 40 Modbus Serial, where the host is running an exemplary
application, will be precertified for network conformance. This is done to ensure that the
final product can be certified, but it does not necessarily mean that the final product does
not require recertification. Contact HMS Industrial Networks for further information.
Host processor
with application
Data Modbus RTU
Anybus
CompactCom
Modbus
Serial
Process Data
