Condair 505 S Operation Manual

Air humidifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

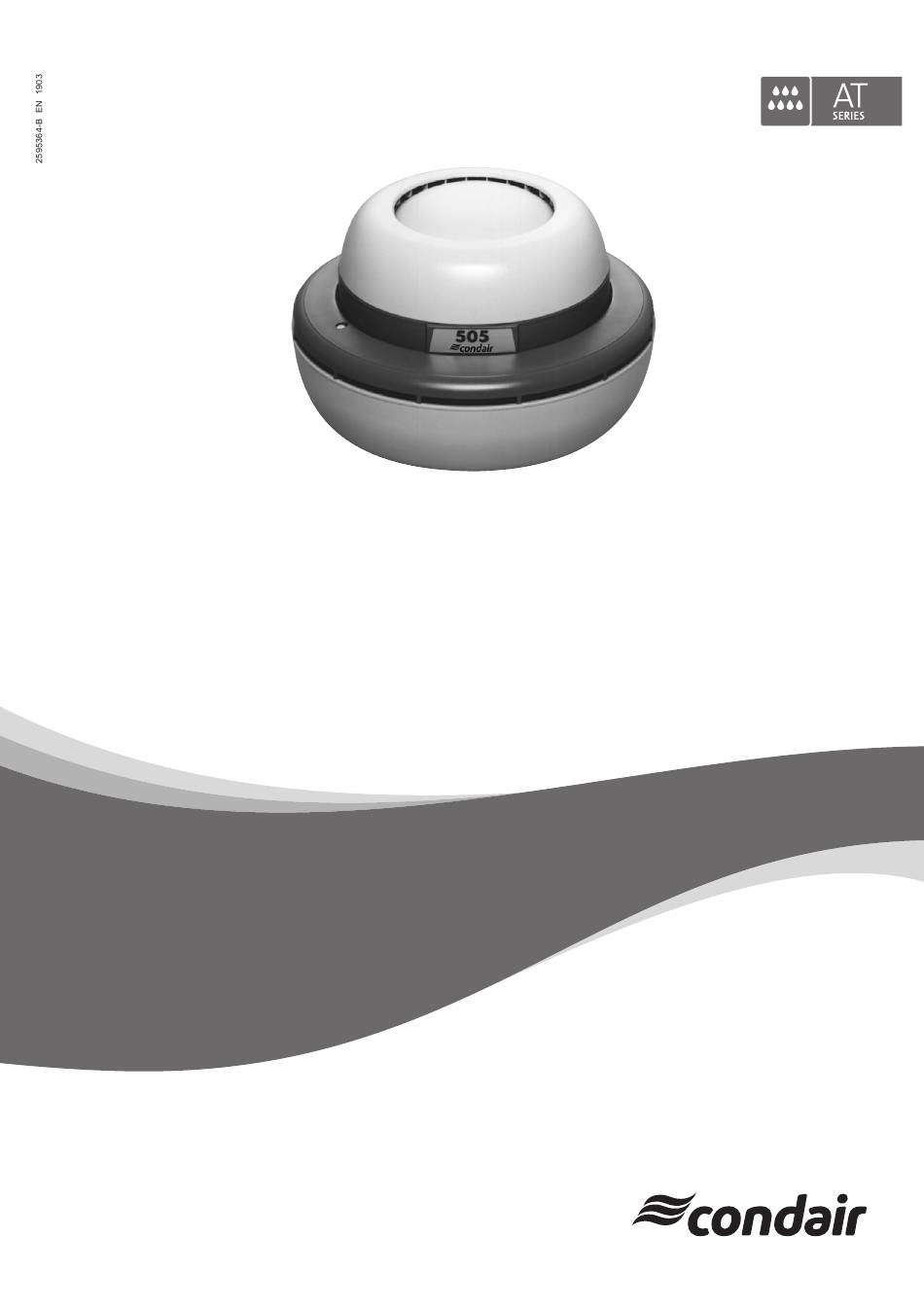

READ AND SAVE THESE INSTRUCTIONS
OPERATION MANUAL
Air humidifier
Condair 505
Humidification and Evaporative Cooling

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 505 S and is the answer not in the manual?

Questions and answers

Related Manuals for Condair 505 S

Summary of Contents for Condair 505 S

  • Page 1 READ AND SAVE THESE INSTRUCTIONS OPERATION MANUAL Air humidifier Condair 505 Humidification and Evaporative Cooling...
  • Page 2 Condair Group AG, except to the extent required for installation or maintenance of recipient's equipment. Liability Notice Condair Group AG does not accept any liability due to incorrect installation or operation of the equipment or due to the use of parts/components/equipment that are not authorised by Condair Group AG. Copyright Notice ©...

  • Page 3: Table Of Contents

    Notes on the operation manual For your safety General Qualification of personnel Intended and non intended use Danger that may arise from the Condair 505 Behavior in case of danger Prohibited modifications to the unit Product overview Unit overview Description of product 3.2.1...

  • Page 4: Introduction

    To the very beginning We thank you for having purchased the Condair 505 air humidifier. The Condair 505 is a compact humidifier that is easy to operate and maintain. A se lec tion of optional accessories are available to customize the humidifier to your particular requirements.
  • Page 5 If the operation manual gets mislaid, please contact your Condair representative. Language versions This operation manual is available in various languages. Please contact your Condair representative for information. 2595364-B EN 1903...

  • Page 6: For Your Safety

    Any use other than the intended purpose of the Condair 505 is at customer’s own risk and for no means the manufacturer or supplier will be liable for possible damage.

  • Page 7: Danger That May Arise From The Condair 505

    The Condair 505 operates at mains voltage. To prevent electric shocks please observe the following notes: – Before connecting the unit to the mains make sure the operating voltage of the Condair 505 (see type plate on unit) meets the local mains voltage, and the power cord is not damaged.

  • Page 8: Behavior In Case Of Danger

    Behavior in case of danger If it can be assumed that safe operation is no longer possible, the Condair 505 must be put out of service without delay and secured against accidental power-up. Safe operation may be affected in the following events: –...

  • Page 9: Product Overview

    Product overview Unit overview Reservoir Filter Stand Support disk Level detector assembly Suction piece Whirl disk Guiding disk Atomizer ring 10 Motor housing assembly Aerosol discharge hood 12 Type plate 13 Mains cable with ground wire Abb. 1: Unit overview 2595364-B EN 1903 Product overview...

  • Page 10: Description Of Product

    Special version The special version Condair 505 S is designed for direct con- nection to the water supply. The Condair 505 S is equipped with a float valve and a connector for an overflow pipe. Note: The standard Condair 505 may be upgraded to the special version at any time –...
  • Page 11 Deliming cap (“Z70”) for lime-free refill. Water reservoir with float valve and safety overflow device for permanent water supply to the humidifier. Humidistat H-4 for automatic control of the Condair 505 S. 2595364-B EN 1903 Product overview...

  • Page 12: Location And Installation

    When using tap water or partially demineralized water the soluble mineral salts may precipitate. Use fully demineralized water if non-precipitating operation is required. Installation work (Condair 505 S only) Consult the following information for connecting the Condair 505 S to the water supply and the sewage line. min. 5° Water supply (1) Supply line Ømin:...

  • Page 13: Operation

    Abb. 2: Refilling If you wish to refill the Condair 505 directly from the tap, remove the atomizer unit and the support disk from the reservoir. Pour water into the reservoir. Do not exceed the imprinted level mark (corresponding to the maximum filling height when the unit is reassembled).

  • Page 14: Setting The Unit Into Operation

    If the unit is damaged do not set it into operation! • Make sure the operating voltage of the Condair 505 (see type plate on unit) matches the local supply voltage, then connect the unit to the mains. The Condair 505 starts humidification without delay.

  • Page 15: Maintenance And Cleaning

    (i.e. filter, suction piece, whirl disk, guiding disk, atomizer ring, etc.). – Periodic maintenance (complete cleaning an disinfection) The maintenance interval of the Condair 505 depends on the operating conditions. We recommend the following intervals: – high ratio of dust and/or hard water: 1 week –...

  • Page 16: Dismantling And Assembly

    Dismantling and assembly DANGER! Risk of electric shock! Always disconnect unit from the mains before dismantling the unit. Dismantling • Disconnect the unit from the mains (pull the plug out of the socket). Abb. 3: Dismantling the unit • Remove the atomizer unit (1) and the support disk (2). •...
  • Page 17 Abb. 4: Dismantling the atomizer unit • Firmly hold the whirl disk (5) while turning the suction piece (4) anticlockwise until it comes off. • Remove the whirl disk (5) and the guiding disk (6). • Carefully dismantle the segments of the atomizer ring (7). CAUTION! Cleaning and replacement of defective parts do not require further dismantling which is inadmis- sible and may void the warranty.

  • Page 18: Cleaning And Disinfection

    Cleaning and disinfection Proceed as follows to clean and disinfect the parts coming in contact with water: • Use lukewarm soapy water to clean the water reservoir, support disk, suction piece, whirl disk, guiding disk, aerosol discharge hood and the segments of the atomizer ring. Then thoroughly rinse all components with fresh cold tap water.

  • Page 19: Replacement Of Defective Parts

    3 % Hydrogen Peroxide solution (available at pharmacies) – 0,1 % Sanosil S003 solution (available from Condair, order no. 2590544) Active ingredients: 1.5% hydrogen peroxide, 0.003g/100g silver After disinfection the components must be thoroughly rinsed with fresh cold tap water.

  • Page 20: Troubleshooting

    Whirl disk mounted incorrectly. Mount whirl disk correctly. emits a rumbling sound. Suction piece has come loose. Fix suction piece. Please contact your Condair representative in case you cannot eliminate a particular source of trouble by yourself. Troubleshooting 2595364-B EN 1903...

  • Page 21: Specifications

    Specifications Designation of unit Condair 505 Dimensions (Ø x H ) 360 x 230 mm Weight 3.5 kg (empty), 6.5 kg (ready for use) Mains connection via built-in three-core power cord Supply voltage 220…240 V/50…60 Hz or 100…110 V/50…60 Hz Humidification capacity approx. 500 g water/hour, suitable for locations up to 150 m...

  • Page 22: Hygiene

    Hygiene Important notes on hygiene Observe the local health and safety executive's technical guidance on the control of Legionella in water systems. The user is responsible for ensure that the water system complies with local regulations, bylaws, and guidelines (such as the HSE ACoP L8, ASHRAE 188, VDI 6022, ISO 22000, HACCP, or equivalent). If inadequately maintained, water systems, of which any humidifier is a part, can support the growth of microorganisms, including the bacterium responsible for Legionnaires' disease.

  • Page 23: Guidelines To Keep A Clean System And Prevent Legionella Growth

    – Training and guidance. Note: Condair uses a quick method for measuring bacterial activity in the water with the use of BactiQuant. Once the water sample has been take, the bacteriological quality of the water is read within 30 minutes, and the Condair service team will disinfect the system if necessary.

  • Page 24: Risk Monitoring And Assessment

    9.2.2 Risk Monitoring and Assessment Water hygiene assessments must be performed at the site to determine the risk and severity of hygiene hazards that affect the health and safety of the public. Performing a risk assessment with regular moni- toring will allow procedures to be adjusted. Ensure that the person conducting the assessment is qualified.

  • Page 25: Spare Parts List

    Spare parts list Condair 505 5 0 5 2595364-B EN 1903 Spare parts list...
  • Page 26 Pos. Spare parts Order No. Motor cpl. 220…240V/50…60Hz 22.1491 Motor cpl. 100…110V/50…60Hz 22.1490 Capacitor 1 µF, 220…240V/50+60Hz 22.0006 Capacitor 4 µF, 100…110V/50Hz 22.0007 Capacitor 3 µF, 100…110V/60Hz 22.0008 Atomizer assembly 22.0608 Level unit 22.0585 Switch cpl. (green version only) 22.0293 Spare parts list 2595364-B EN 1903...
  • Page 27 Condair 505S 5 0 5 2595364-B EN 1903 Spare parts list...
  • Page 28 Pos. Spare parts Order No. Motor cpl. 220…240V/50…60Hz 22.1491 Motor cpl. 100…110V/50…60Hz 22.1490 Capacitor 1 µF, 220…240V/50+60Hz 22.0006 Capacitor 4 µF, 100…110V/50Hz 22.0007 Capacitor 3 µF, 100…110V/60Hz 22.0008 Atomizer assembly 22.0608 Level unit 22.0585 Drain connection 22.0009 Double float cpl. 20.0471 Double float cpl.
  • Page 29 Notes...
  • Page 30 Notes...
  • Page 32 CONSULTING, SALES AND SERVICE: CH94/0002.00 Condair Group AG Gwattstrasse 17, 8808 Pfäffikon SZ, Switzerland Phone +41 55 416 61 11, Fax +41 55 588 00 07 info@condair.com, www.condair-group.com...
