Summary of Contents for Condair 505

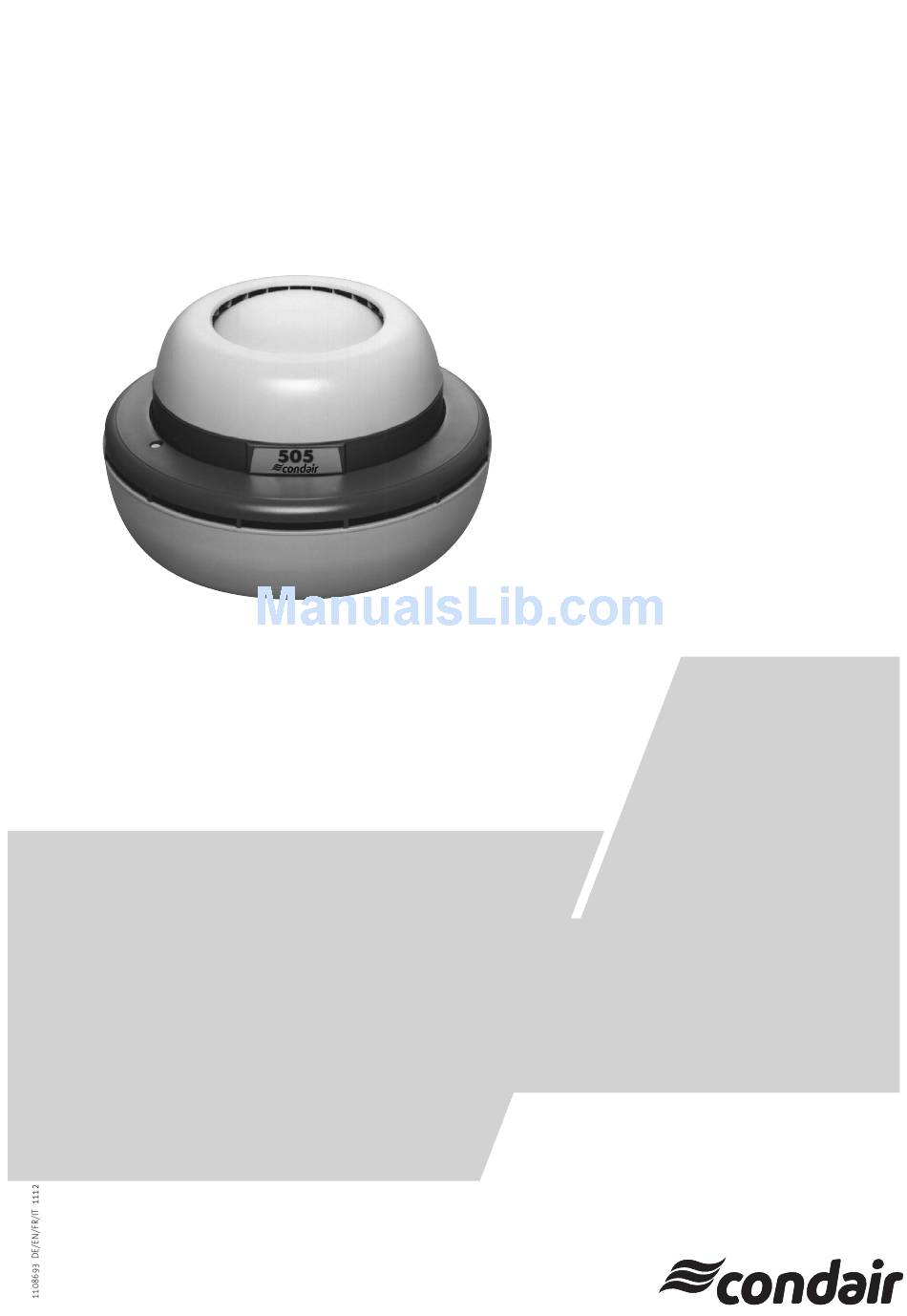

- Page 1 505 luftbefeuchter / air humidifier / Humidificateur d’air / umidificatore d’aria BetrieBsanleitung Operating instructiOns MOde d’eMplOi istruziOni per l’usO...
- Page 2 Unit survey 1 Reservoir 2 Filter 3 Stand 4 Support disk 5 Level detector assembly 6 Suction piece 7 Whirl disk 8 Guiding disk 9 Atomizer ring 10 Motor housing assembly 11 Aerosol discharge hood 12 Type plate 13 Mains cable with ground wire...
-
Page 3: Important Notes
Introduction We thank you for having purchased the Condair 505 air humidifier. The Condair 505 is a compact humidifier that is easy to operate and maintain. A selection of optional accessories are available to customize the humidifier to your particular requirements. The Condair 505 air humidifier is designed in accordance with the latest state of the art and the present safety regulations. In the event of improper use, however, danger can arise for the user or third parties and or impairment of the unit or other material assets. Carefully read these Operating Instructions prior to setting the humidifier into operation as they contain valuable informa tion on safe and economic use of your Condair 505. Please keep this manual in a safe place where it will be at hand whenever you need it. In case of loss please contact your Condair representative for immediate replacement. Important notes Directed scope of use The Condair 505 is exclusively intended for direct room humidification under strict adherence to the information and notes given in this manual. Any use beyond this scope is considered to be a violation of the intended purpose and may endanger your safety or possibly cause the product to be damaged. Any use other than the intended purpose of the Condair 505 is at customer’s own risk and for no means the manufacturer or supplier will be liable for possible damage. -
Page 4: Functional Description
– Except for the steps mentioned in this manual, the user must not carry out further operations with the Condair 505. – All components that are in contact with water must be thoroughly rinsed with tap water if the Condair 505 has not been in use for an extended period, before filling the unit and after each deliming cycle. – Use only original accessories and genuine spare parts from your Condair supplier. – The Condair 505 may not be modified in any way without written consent from the manufacturer. Description of product Special version The special version Condair 0 S is designed for direct connection to the water supply. The Condair 505 S is equipped with a float valve and a con nector for an overflow pipe. Note: The standard Condair 505 may be upgraded to the special version at any time – please contact your Condair representative. Functional description The Condair 505 uses the atomizer principle. The suction piece takes in the water from the reservoir. Then the whirl disk moves the water towards the atomizer ring where it is transformed into aerosol fog. The vanes of the whirl disk take in the air via the radial openings of the hous ing. This air stream passes by the atomizer ring and directs the aerosol fog out of the humidifier in an upward direction. The atomizer unit is driven by a maintenancefree electric motor. -
Page 5: Accessories And Options
Accessories and options The following accessories and options are available for the Condair 505: – Directional cap vertical (“Z2”) for vertical adjustment of the aerosol fog. – Directional cap horizontal (“Z”) for horizontal adjustment of the aerosol fog. – Deliming cap (“Z0”) for limefree refill. – Water reservoir with float valve and safety overflow device for per manent water supply to the humidifier. – Humidistat H- for automatic control of the Condair 505 S. - Page 6 1.0 m – min. clearance around the unit: 0.0 m – min. clearance from cold outer walls and windows: 1.00 m – When using tap water or partially demineralized water the soluble mineral salts may precipitate. Use fully demineralized water if nonprecipitating operation is required. Installation work (Condair 0 S only) Consult the following information for connecting the Condair 505 S to the water supply and the sewage line. min. 5° Water supply (1) Supply line Ø 4/6 mm (copper tube) Admissible water pressure: 0,3…4,0 bar...
-
Page 7: Operation
• Pour fresh water into the aerosol discharge hood or into the deliming cap (accessory “Z70”), respectively. Watch the level indicator: – water reservoir half full: grey mark on level indicator is in view. – water reservoir full: red mark on level indicator is in view. If you wish to refill the Condair 505 directly from the tap, remove the atomizer unit and the support disk from the reservoir. Pour water into the reservoir. Do not exceed the imprinted level mark (corresponding to the maximum filling height when the unit is reassembled). Then mount the support disk and the atomizer unit. Caution! Do not overfill the reservoir (watch the maximum level mark) as this may affect correct operation. Caution! Use only fresh tap water or partly/fully demineralized water. -
Page 8: Dismantling And Assembly
Maintenance and cleaning Cleaning intervals Regular checks and periodic maintenance are indispensable prerequisites for hygienic operation: – Regular checks Once a week you should carry out a regular check that includes the fol lowing steps: – cleaning of the water reservoir. – checking all components being in contact with water (i.e. filter, suction piece, whirl disk, guiding disk, atomizer ring, etc.). – Periodic maintenance The maintenance interval depends on the operating conditions. We rec ommend the following intervals: – high ratio of dust and/or hard water: 1 week 1 - 2 weeks – medium ratio of dust and/or normal water: – low ratio of dust and/or demineralized water: 2 - weeks Note: please refer to chapters 6.2 and 6.3 for detailed descriptions of the dismantling, assembly and cleaning procedures required by particular com... -
Page 9: Replacement Of Defective Parts
Cleaning Use lukewarm soapy water to clean the water reservoir, support disk, suction piece, whirl disk, guiding disk, aerosol discharge hood and the segments of the atomizer ring. Then thoroughly rinse all components with water. If the components are heavily encrusted with lime, soak them in 8 % for mic acid until the lime layer is dissolved. Finally, clean the components as described above. When cleaning make sure: – not to damage the outer edges of the whirl disk. Defective disks reduce the efficiency of the humidifier and can cause damage to the bearing (unbalance). - Page 10 What if ...? The following table presents malfunctions that might occur during humidifier ope ration, explains their causes and suggests appropriate remedial action. Malfunction Cause Remedy Humidifier is running but there is No water in the reservoir. Top up (see chapter 5). no aerosol fog. Suction piece clogged. Clean suction piece (see chapter 6). Humidifier is not running although it Excessive heat has triggered the Let the motor cool down (approxi is connected to the mains. thermal circuit breaker of the motor. mately 30 minutes), then the unit will restart automatically. Motor defective. Contact your local Condair repre sentative. Unit has been switched off by exter Check external humidistat and read nal humidistat just, as required. Overheated unit has cooled down, Water level in the reservoir exceeds Check water level. restarts but stops again after a short the maximum level mark. while. Unit heavily soiled. Clean the unit (see chapter 6). When running, the humidifier emits a Whirl disk mounted incorrectly. Mount whirl disk correctly. rumbling sound. Suction piece has come loose. Fix suction piece.
-
Page 11: Specifications
Specifications Designation of unit Condair 505 Dimensions (Ø x H ) 360 x 230 mm Weight 3.5 kg (empty), 6.5 kg (ready for use) Mains connection via builtin threecore power cord Supply voltage 220…240 V/50…60 Hz or 100…110 V/50…60 Hz Humidification capacity approx. 500 g water/hour, suitable for locations up to 150 m Power consumption 40 W Acoustic capacity level 50 dBA Sound intensity level 44 dBA Drive maintenancefree electric motor with thermal circuit breaker Water reservoir made of polypropylene, capacity: 3 litres Water quality tap water, partly or fully demineralized water Ambient temperature 1…40 °C... - Page 12 Condair 0S 5 0 5...
- Page 13 Pos. Art. Nr. Ersatzteile Spare parts Pièces de rechange Pezzi di ricambio 1 22.1491 Motor kpl. 220…240V/50…60Hz Motor cpl. Moteur cpl. Motore cpl. 22.1490 Motor kpl. 100…110V/50…60Hz Motor cpl. Moteur cpl. Motore cpl. 2 22.0006 Kondensator 1 µF, 220…240V/50+60Hz Capacitor Condensateur Condensatore 22.0007 Kondensator 4 µF, 100…110V/50Hz Capacitor Condensateur Condensatore 22.0008 Kondensator 3 µF, 100…110V/60Hz Capacitor Condensateur Condensatore 3 22.0608 Zerstäuberteil Atomizer assembly Atomiseur assy. Nebulizzatore cpl. 4 22.0585 Niveaueinheit Level unit...
- Page 17 © condair ltd., printed in switzerland technische Änderungen vorbehalten technical modifications reserved sous réserve de modifications techniques con riserva di modifiche tecniche...
- Page 18 40002-2 Manufacturer: condair ltd. Member of the Walter Meier group talstrasse 35-37, 8808 pfäffikon, switzerland ph. +41 55 416 61 11, Fax +41 55 416 62 62 info@condair.com, www.condair.com...
