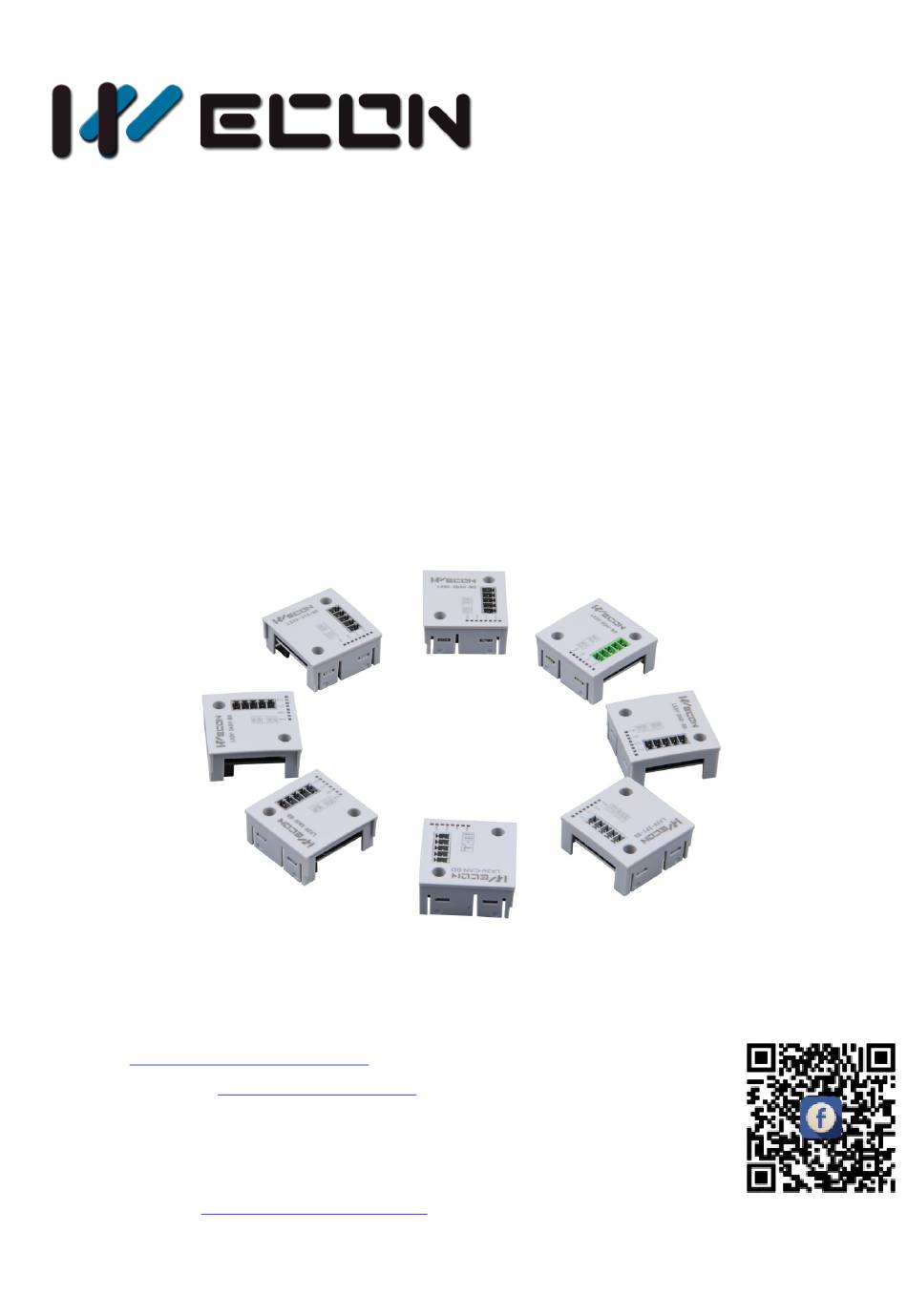

- Page 1 LX3V-2TC2DAI-BD User manual Website: http://www.we-con.com.cn/en Technical Support: support@we-con.com.cn Skype: fcwkkj Phone: 86-591-87868869 QQ: 1043098682 Technical forum: http://wecon.freeforums.net/...

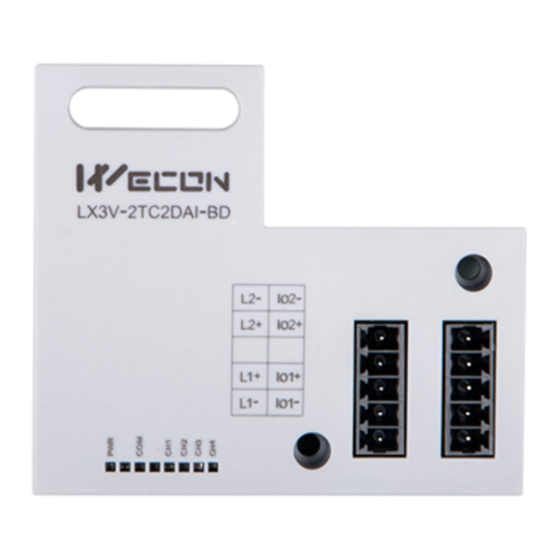

- Page 2 2. Features of LX3V-2TC2DAI-BD 1) It could use LX3V-2TC2DAI-BD to add 2 analog input points and 2 current output points. It is internally installed in the top of PLC, thus it is not necessary to change the PLC’s installation area.
- Page 3 CH2 LED: LED for CH2, constantly ON when analog signal in range, lit when analog signal out of range (K type: -100~1200℃, J type: -100~600℃). M8112=OFF K type, M8112=ON J type. CH3 LED: LED for CH3, constantly ON when M8114 turns OFF, OFF when M8114 turns ON. WECON Technology Co., Ltd.
-
Page 4: Specifications
DC 4~20mA (the external load resistance is no less than 500Ω) Digital output 12 bit binary Resolution 8uA[4~20mA / 2000] Precision ±0.5% of full scale AD conversion time One PLC scanning cycle Input characteristics The external load is 250Ω and 0-2000 is converted to 4-20mA WECON Technology Co., Ltd. - Page 5 Use AWG25-16 to connect the output equipment The maximal screwing torque is from 0.5 to 0.6N.m The use of different types of cables might cause poor contact between the terminals. It is better to use pressed terminals. WECON Technology Co., Ltd.
-
Page 6: Basic Program Examples
The analog values of each channel are transfer to digital values and stored in D8112&D8113. On the contrary process, digital value in each channel will be converted into analog value and output in system address (D8114, D8115). 6.1 Basic Program Examples Caution: WECON Technology Co., Ltd. - Page 7 6.2 Application example Since the LX3V-2TC2DAI-BD does not have offset and gain functions, if it needs for the values out of the standard specifications, Additional programming orders will be needed to multiply or divide the converted value.
- Page 8 LX3V-2TC2DAI-BD In Thermocouple input mode, LX3V-2TC2DAI-BD covert an analog value to a digital value in degrees Celsius. If in the program is Fahrenheit as a unit it needs to be converted to Celsius value. Fahrenheit and Celsius conversion formula, Fahrenheit = Celsius * 9/5 + 32, the unit is 0.1 ℃.
