Summary of Contents for Wecon LX3V-2TC-BD

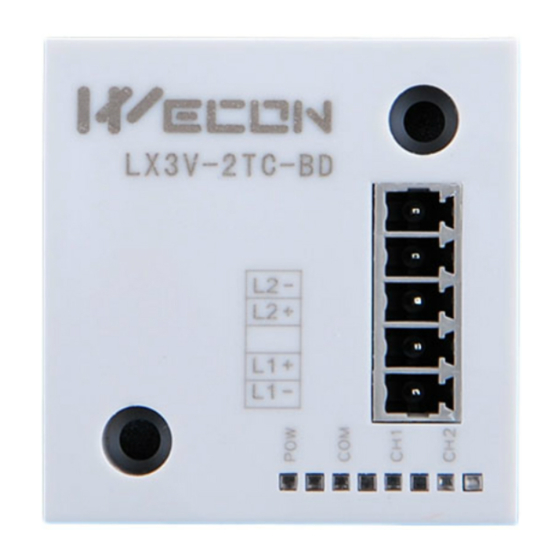

- Page 1 WECON LX3V-2TC-BD Module Website: http://www.we-con.com.cn/en Technical Support: liux@we-con.com.cn Skype: “fcwkkj” or “Jason.chen842” Phone: 86-591-87868869 QQ Group: 465230233 Technical forum: http://wecon.freeforums.net/...
- Page 2 PLC, so there is no need to change the installation area of the PLC. 2) The type to AD convert of LX3V-2TC-BD is a thermocouple input type (K/J), and the converted digital value of each channel is stored in special registers, but the mode of analog-to-digital conversion cannot be changed.
-
Page 3: Specifications
If the BD module is plugged into the old firmware version when on the host, all LEDs will be flashing. 4. Specifications 1) Please refer to the LX3V user manual for the general specification of LX3V-2TC-BD. 2) LX3V-2TC-BD is powered supply by LX3V main unit. - Page 4 4) Do not connect a substandard cable; 5) Fixed cable; 5.1 Suitable cable Use AWG25-16 to connect the output equipment The maximal screwing torque is from 0.5 to 0.6N.m Table 5-1 Line type Cross sectional area(mm ) End-of-pipe treatment WECON Technology Co., Ltd.
-
Page 5: Basic Program Examples
Set the digital value of D2 into analog value 6.2. Examples of Applications Since the LX3V-2TC-BD does not have offset and gain functions, if it needs for the values out of the standard specifications, Additional programming orders will be needed to multiply or divide the converted value. - Page 6 The original range of the analog output does not change. Thermocouple input mode In Thermocouple input mode, LX3V-2TC-BD covert an analog value to a digital value in degrees Celsius. If in the program is Fahrenheit as a unit it needs to be converted to Celsius value.
