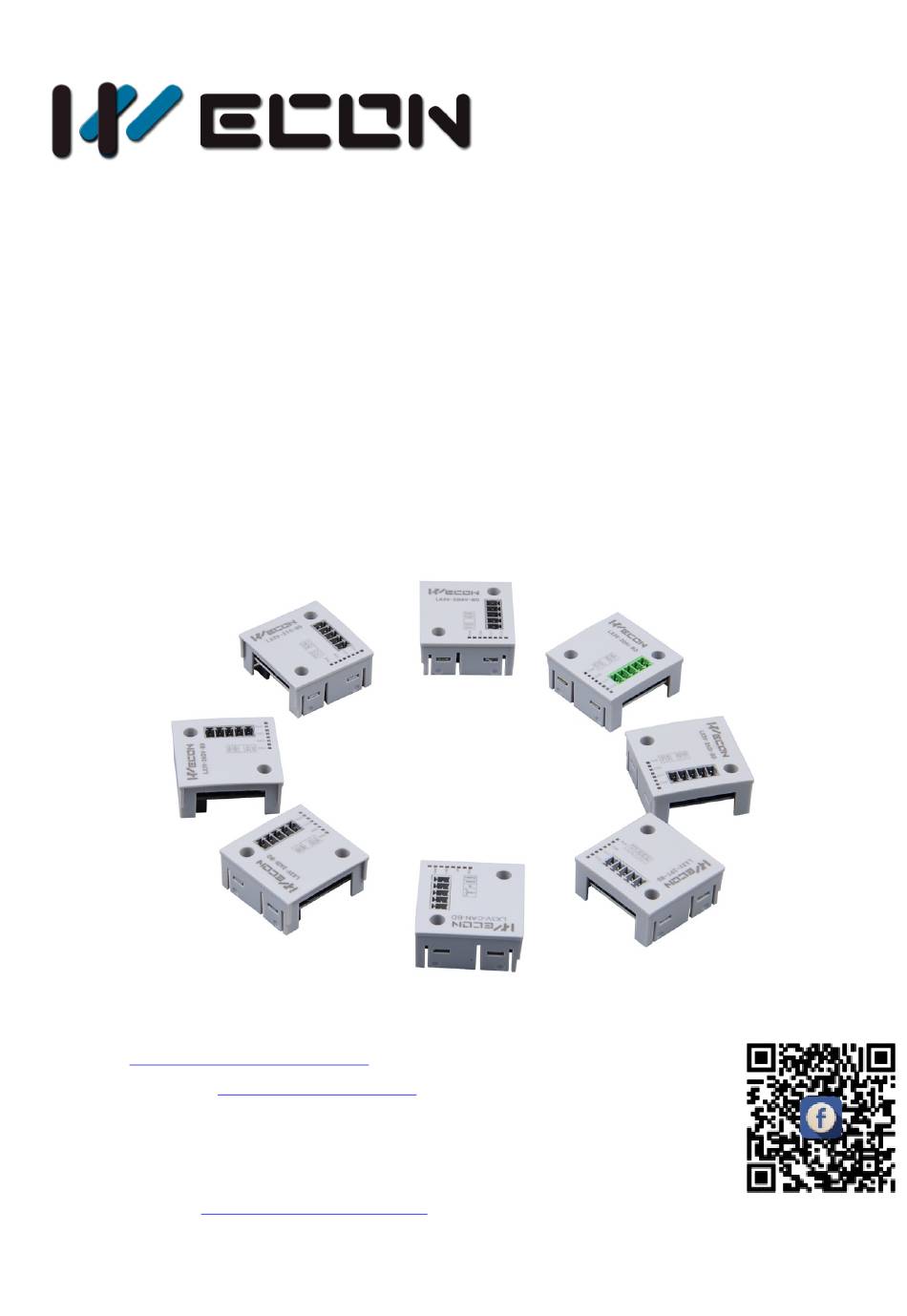

- Page 1 LX3V-2DAV-BD User manual Website: http://www.we-con.com.cn/en Technical Support: support@we-con.com.cn Skype: fcwkkj Phone: 86-591-87868869 QQ: 1043098682 Technical forum: http://wecon.freeforums.net/...
-
Page 2: Mounting Instruction
1) LX3V-2DAV-BD module equips with 2 channels analog output. This module will be mounted in the PLC. 2) The output voltage of LX3V-2DAV-BD module between -10V to 10V, and the digital value will be saved in special system address, but the numerical relationship between input and output value cannot be changed. - Page 3 4) LED4 (AD 2): On indicates enable, OFF indicates disable, flicker indicates exceeding the measurement range. If the BD module is plugged into the old firmware version when on the host, all LEDs will be flashing. WECON Technology Co., Ltd.
-
Page 4: Specifications
LX3V-2DAV-BD 4. Specifications 1) Please refer to the LX3V user manual for the general specification of LX3V-2DAV-BD. 2) LX3V-2DAV-BD is powered supply by LX3V main unit. Table 4-1 Specification Item Voltage output Input range DC-10V~10V (the external load resistance is no less than 2KΩ) -
Page 5: Output Mode
Line type End-of-pipe treatment area(mm AWG26 0.1288 Stranded cable: stripped jacket, rub Conductor, then connect the cable..... Single-core cable: stripped jacket, AWG16 1.309 Then connect the cable. 5.2 Output mode Figure 5-1 6. Examples WECON Technology Co., Ltd. -
Page 6: Basic Program Examples
6.2. Examples of Applications Since the LX3V-2DAV-BD does not have offset and gain functions, if it needs for the values out of the standard specifications, Additional programming orders will be needed to multiply or divide the converted value. - Page 7 5mV; Figure 6-1 If the digital range used in D0 is 0~A, then the data used in the user’s applications are： D8114=2000×D0÷A =2000×D0÷10000 (when A=10000) = D0÷5 Version: V1.0.1 Date: Feb 2018 WECON Technology Co., Ltd.
