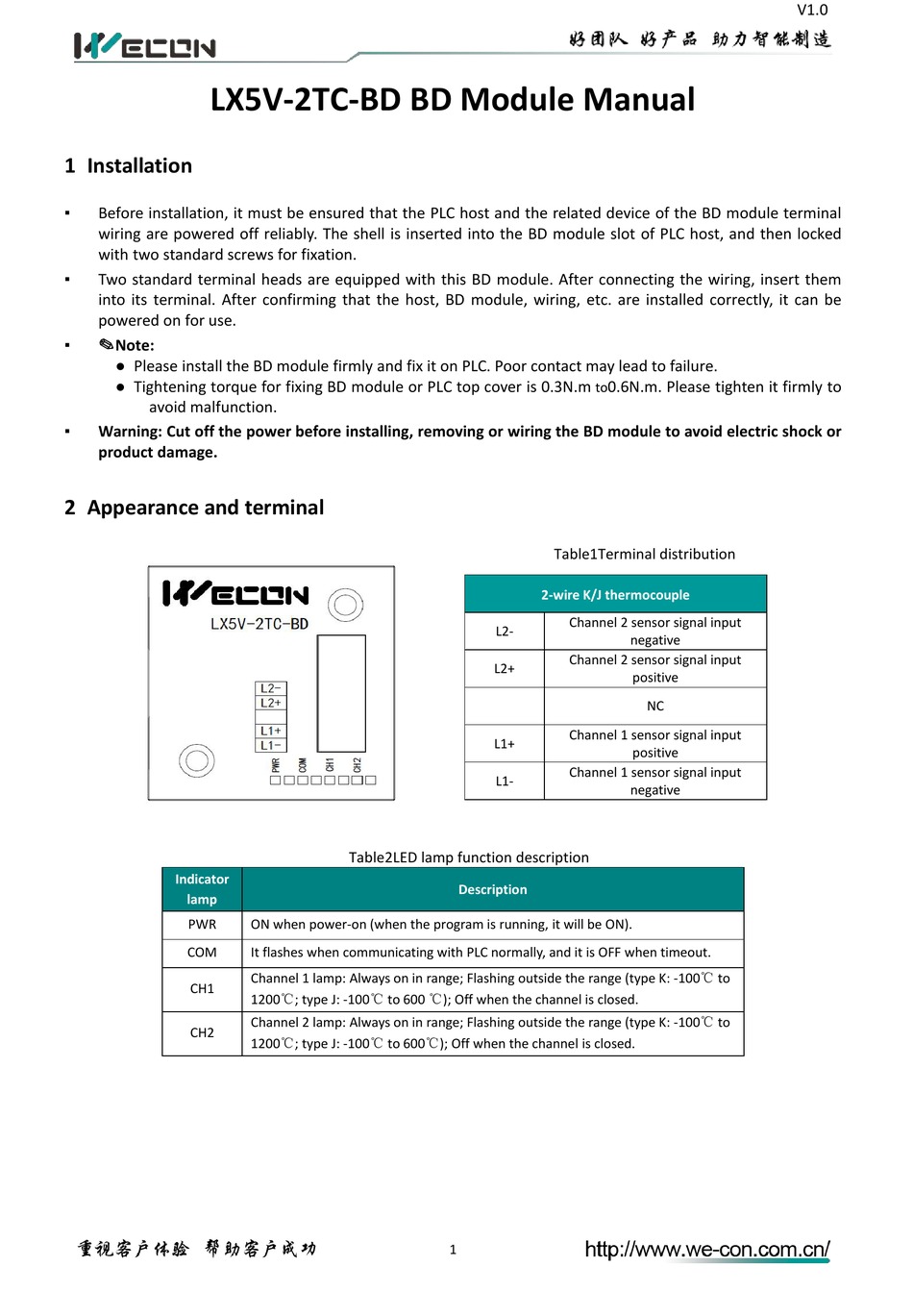

LX5V-2TC-BD BD Module Manual
1 Installation
Before installation, it must be ensured that the PLC host and the related device of the BD module terminal
wiring are powered off reliably. The shell is inserted into the BD module slot of PLC host, and then locked
with two standard screws for fixation.
Two standard terminal heads are equipped with this BD module. After connecting the wiring, insert them
into its terminal. After confirming that the host, BD module, wiring, etc. are installed correctly, it can be
powered on for use.
✎Note:
● Please install the BD module firmly and fix it on PLC. Poor contact may lead to failure.
● Tightening torque for fixing BD module or PLC top cover is 0.3N.m
avoid malfunction.
Warning: Cut off the power before installing, removing or wiring the BD module to avoid electric shock or
product damage.

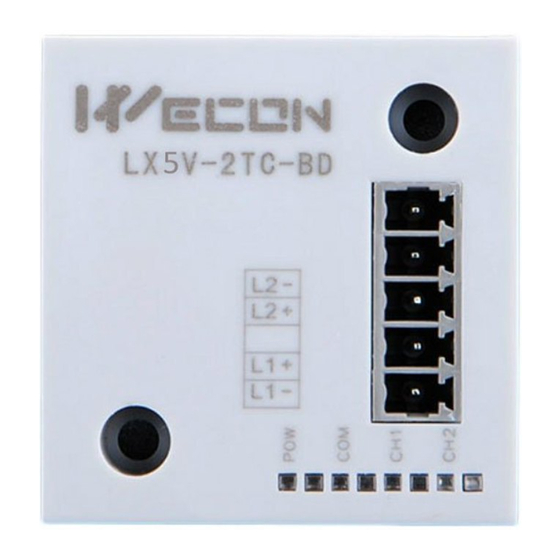

2 Appearance and terminal
Indicator
lamp
PWR
COM
CH1
CH2
Table2LED lamp function description
ON when power-on (when the program is running, it will be ON).
It flashes when communicating with PLC normally, and it is OFF when timeout.
Channel 1 lamp: Always on in range; Flashing outside the range (type K: -100℃ to
1200℃; type J: -100℃ to 600 ℃); Off when the channel is closed.
Channel 2 lamp: Always on in range; Flashing outside the range (type K: -100℃ to
1200℃; type J: -100℃ to 600℃); Off when the channel is closed.
0.6N.m. Please tighten it firmly to
to
Table1Terminal distribution
2-wire K/J thermocouple
Channel 2 sensor signal input
L2-
Channel 2 sensor signal input
L2+
Channel 1 sensor signal input
L1+
Channel 1 sensor signal input
L1-
Description
1
V1.0
negative
positive
NC
positive
negative

Advertisement

loading
Need help?

Need help?

Do you have a question about the LX5V-2TC-BD and is the answer not in the manual?

Questions and answers

Summary of Contents for Wecon LX5V-2TC-BD

  • Page 1 V1.0 LX5V-2TC-BD BD Module Manual 1 Installation ▪ Before installation, it must be ensured that the PLC host and the related device of the BD module terminal wiring are powered off reliably. The shell is inserted into the BD module slot of PLC host, and then locked with two standard screws for fixation.
  • Page 2: Specification

    3 Specification (1) General specification: Same as PLC main unit. (Please refer to the accompanying manual of the PLC main unit.) (2) Power supply specification: The power supply is provided internally by PLC (3) Performance specifications: Project Description Digital circuit 5VDC, 90mA (from the internal circuit of the main unit) Analog input...
  • Page 3 4 Wiring Cut off the power before installing, removing or wiring the BD module to avoid electric shock or product damage. ✎Note: ● Do not place signal cables near high voltage power cables or in the same trunk line. Otherwise, it may be disturbed or surged.
  • Page 4: Parameter Configuration

    PLC (slot number 1 or 2, the software will select slot 1 by default, and right-click to move down to slot ③ After adding the BD module to the slot, double-click or right-click to select configuration parameters to enter LX5V-2TC-BD configuration parameters interface, as shown in the following figure. Configure related parameters on this interface.
  • Page 5 Note: This function is only supported in the following versions of host computer, slave computer and BD module:...
  • Page 6 (1) Supported host computer versions: Wecon PLC Editor2 2.1.204 and above, as shown in the following figure: (2) Supported slave computer versions: 2.051 and above, as shown in the following figure: (3) Supported BD module version number: 1013 and above, as shown in the following figure:...
  • Page 7 The parameter configuration interface is as below: 1、Module setting: Set response time (The response time is the interval time between PLC acquisition of BD module data. Range: 0.1ms to 3276.7ms). 2、TC configuration: Check enable channel to set whether to enable the current BD module channel. Sensor type: The default sensor type is K thermocouple (Type K and J are optional, and you can set through the drop-down box).
  • Page 8 convert the corresponding channel value: Channel value = actual temperature value × gain value + offset value When the channel value deviates from the actual temperature value, the channel can be calibrated by setting the gain offset, for example: If the type of thermocouple connected to the current channel is K: ▪...
  • Page 9: Ladder Diagram

    6.2 Ladder Diagram 1、Programming example that does not use the host computer software "BD module configuration" function. For device allocation, please refer to "5 PLC device description". Switch CH1 to type K thermocouple Switch CH2 to type K thermocouple Write the temperature value of CH1 to register D0 Write the temperature value of CH2 to register D0 2.Programming example using "BD module configuration"...
  • Page 10 hold Channel 1 channel 0x2000 × 0 to 1 0: Channel closed; 1: Channel open enable 0: Type K thermocouple; 1: Type J 0x2001 × Channel 1 sensor type 0 to 1 thermocouple 0: Minimum filter strength; 9: 0x2002 × Channel 1 filter intensity 0 to 9 Maximum filter strength...
