Wecon LX5V-2PT2ADV-BD BD Manual

LX5V-2PT2ADV-BD BD Module Manual
1 Installation
▪ Before installation, it must be ensured that the PLC host and the related device of the BD module terminal
wiring are powered off reliably. The module shell is inserted into the BD module slot of PLC host, and then
locked with two standard screws for fixation.
▪ Two standard terminal heads are equipped with this BD module. After connecting the wiring, insert them
into its terminal. After confirming that the host, BD module, wiring, etc. are installed correctly, it can be
powered on for use.
▪
✎Note:
● The ADV input voltage cannot exceed the absolute maximum (-15V/+15V), otherwise the BD module
will be damaged.
● Please install the BD module firmly and fix it on PLC. Poor contact may lead to failure.
● Tightening torque for fixing BD module or PLC top cover is 0.3N.m
avoid malfunction.
● You can only use one LX5V-2PT2ADV-BD on the PLC main unit of LX5 series.
▪ Warning: Cut off the power before installing, removing or wiring the BD module to avoid electric shock or
product damage.

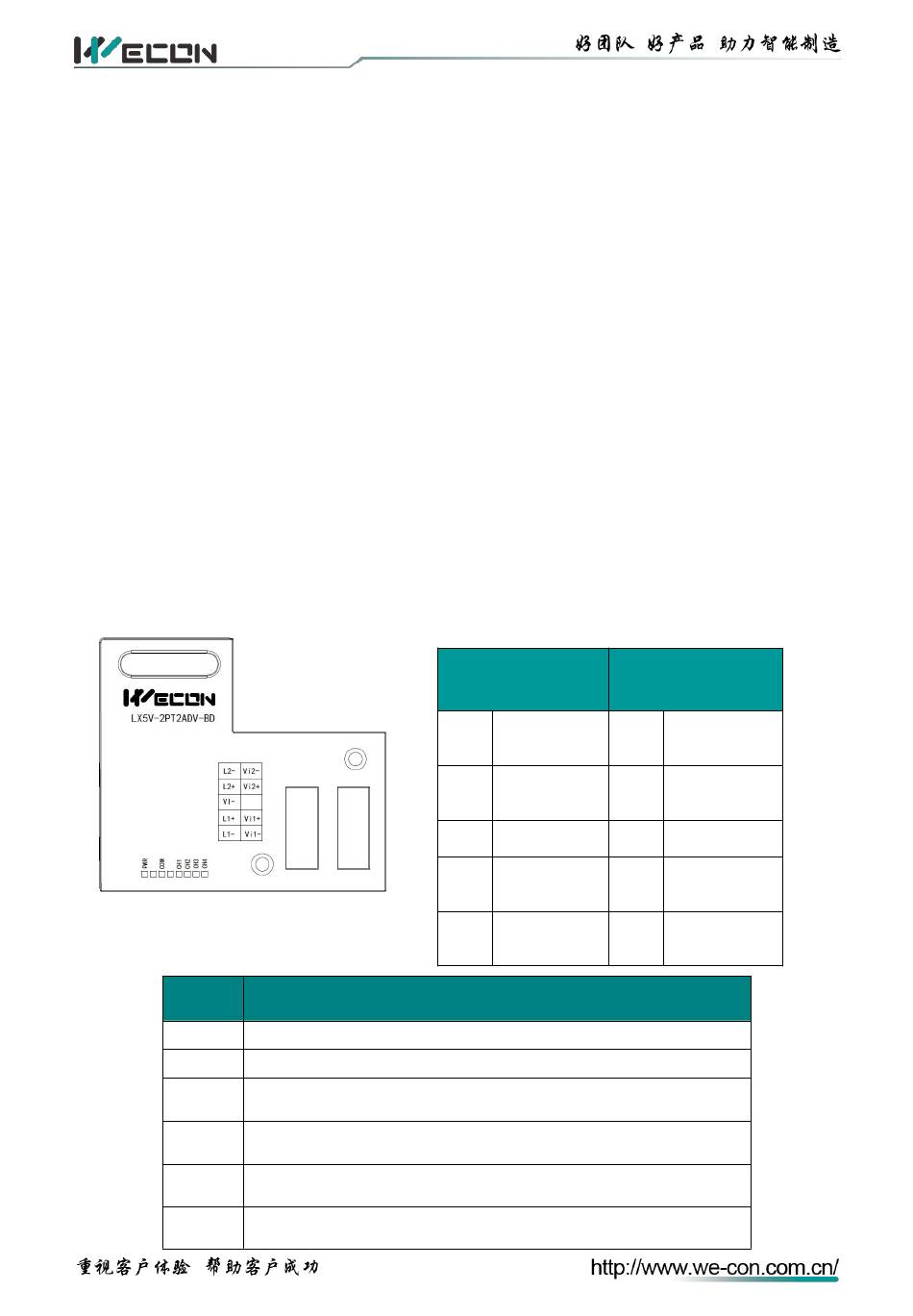

2 Appearance and terminal
Table2 LED lamp function description
Indicator
lamp
PWR
COM
CH1
CH2
CH3
CH4
ON when power-on (when the program is running, it will be ON).
It flashes when communicating with PLC normally, and it is OFF when timeout.
Channel 1 lamp: Always on in range; Flashing outside the range of -100℃to600℃;
Off when the channel is closed.
Channel 2 lamp: Always on in range; Flashing outside the range of -100℃to600℃;
Off when the channel is closed.
Channel 3 lamp: Always on in range; flashing outside the range of (-10V to 10V);
Off when the channel is closed.
Channel 4 lamp: Always on in range; flashing outside the range of (-10V to 10V);
Off when the channel is closed.
0.6N.m. Please tighten it firmly to
to
Table1 Terminal distribution
IN_2PT part
2-wire/3-wire PT100
thermal resistance
Channel 2 sensor
L2- Signal input Vi2-
negative
Channel 2 sensor
L2+ signal input Vi2+
positive
Sensor common
VI-
pole
Channel 1 sensor
L1+ signal input Vi1+
positive
Channel 1 sensor
L1- Signal input Vi1-
negative
Description
1
IN_2ADV part
Voltage output range:
-10Vto10V
Channel 2
Voltage input
negative
Channel 2
Channel 1 voltage
input positive
NC
Channel 1
Channel 1 voltage
input positive
Channel 1
Voltage input
negative
