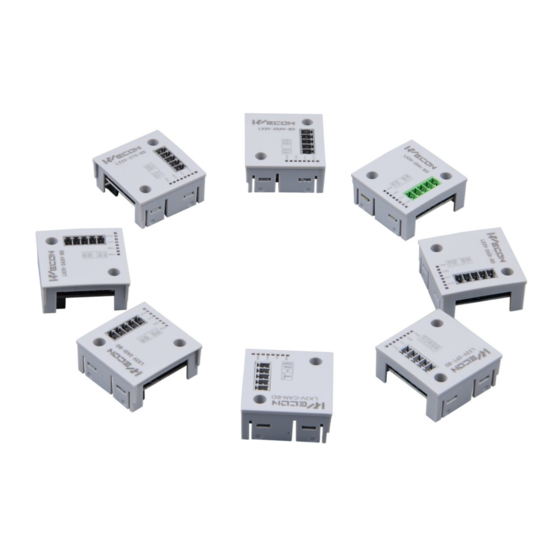

- Page 1 LX3V-2ADV-BD User manual Website: http://www.we-con.com.cn/en Technical Support: support@we-con.com.cn Skype: fcwkkj Phone: 86-591-87868869 QQ: 1043098682 Technical forum: http://wecon.freeforums.net/...
-
Page 2: Mounting Instruction
1) LX3V-2ADV-BD module equips with 2 channels analog input. This module will be mounted in the PLC. 2) The input voltage of LX3V-2ADV-BD module between -10 to 10V, and the digital value will be saved in special system address, but the numerical relationship between input and output value cannot be changed. - Page 3 4) LED4 (AD 2): On indicates enable, OFF indicates disable, flicker indicates exceeding the measurement range. If the BD module is plugged into the PLC which uses old firmware version, when PLC power on, all LEDs will be flashing. WECON Technology Co., Ltd.
-
Page 4: Specification
LX3V-2ADV-BD 4. Specification 1) Please refer to the LX3V user manual for the general specification of LX3V-2ADV-BD. 2) LX3V-2ADV-BD is powered supply by LX3V main unit. Table 4-1 Specification Item Voltage input Input range DC -10 ~ 10V (Input resistance:150KΩ) -
Page 5: Input Mode
2) After execution of analog data conversion, do not change the values of D8112 or D8113 through operator program, programming tools or graphic operating terminal. The following program can set CH1 and CH2 into voltage input mode. After ADV conversion, values of all channels are stored into D0 and D2. WECON Technology Co., Ltd. -
Page 6: Examples Of Applications
LX3V-2ADV-BD 6.2 Examples of Applications Since the LX3V-2ADV-BD does not have offset and gain functions, if it needs for the values out of the standard specifications, Additional programming orders will be needed to multiply or divide the converted value. Notes: 1) Since the use of additional programming orders, the converted precision and resolution of the analog value are different with the specifications. - Page 7 LX3V-2ADV-BD the situation of CH1) Version: V1.0.1 Date: Feb 2018 WECON Technology Co., Ltd.
