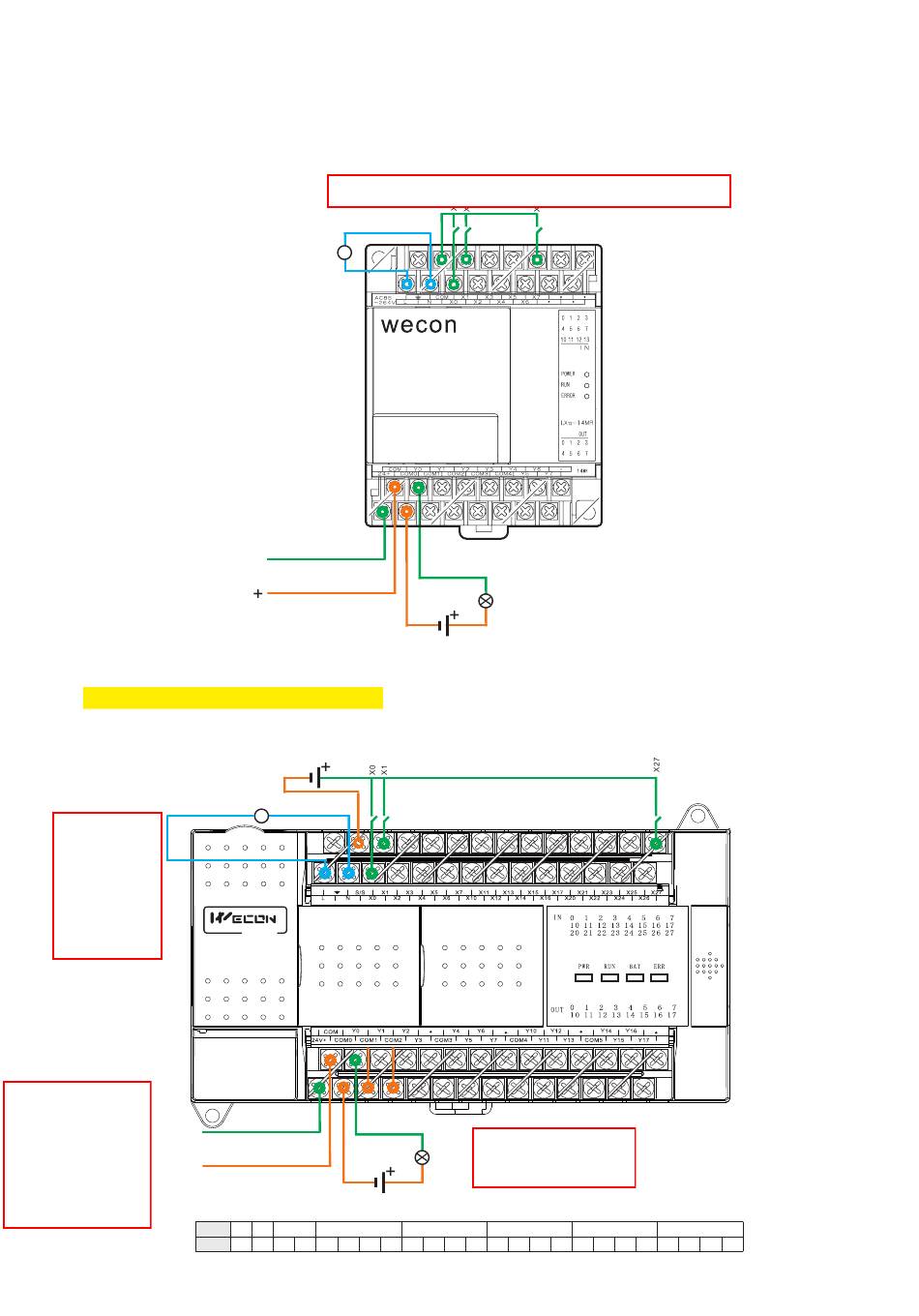

Wecon LX1S Series Wiring Diagram

WECON PLC Unit Wiring Diagram
LX1S Series PLC
LX2N/3V Series PLC
Power supply (Input)
If your PLC is
powered by
100-240VAC,
use these two
pins to power
it up.These
two pins are
not available
on 24VDC PLC
models
Use these two pins
to power up PLC
models with 24VDC
power supply.On PLC
models with
DC 24V Power Supply (Output)
100-240VAC power
supply, these two
pins can be used to
provide power of
24VDC
A legacy model, most possibly you are not using this
model.
Power supply
~
AC 100~240V
-
DC 24V Power Supply (Output)
Power supply (Input)
-
DC 24V
AC 100~240V
~
LX v-2416MT
3
+
-
Power supply (Input)
Common COM0 COM1 COM2 COM3
Y Y0 Y1 Y2 Y3 Y4 Y5
. . . . . .
. . . . . .
Load
-
Power supply (Input)
......
......
COM1, COM2, COM3,
COM4, COM5 need to be
Load
connected to negative
-
to make outputs work.
COM4 COM5
Y6 Y7 Y10 Y11 Y12 Y13 Y14 Y15 Y16
COM6 COM7
Y17 Y20 Y21 Y22 Y23 Y24 Y25 Y26 Y27
