7.2.2 STM32F072B-DISCO TSC group and sensor activation
To activate the TSC group, sampling capacitors and sensor channels follows the below steps:
• activate TSC according schematics information.
• desactivate unrelevant peripheral like USB, SPI, NCF(L0), EPaper(L0), MFX(L0)
SWD peripheral must be set according to
TSC peripheral must be set according to
AN5105 - Rev 1
Figure 24

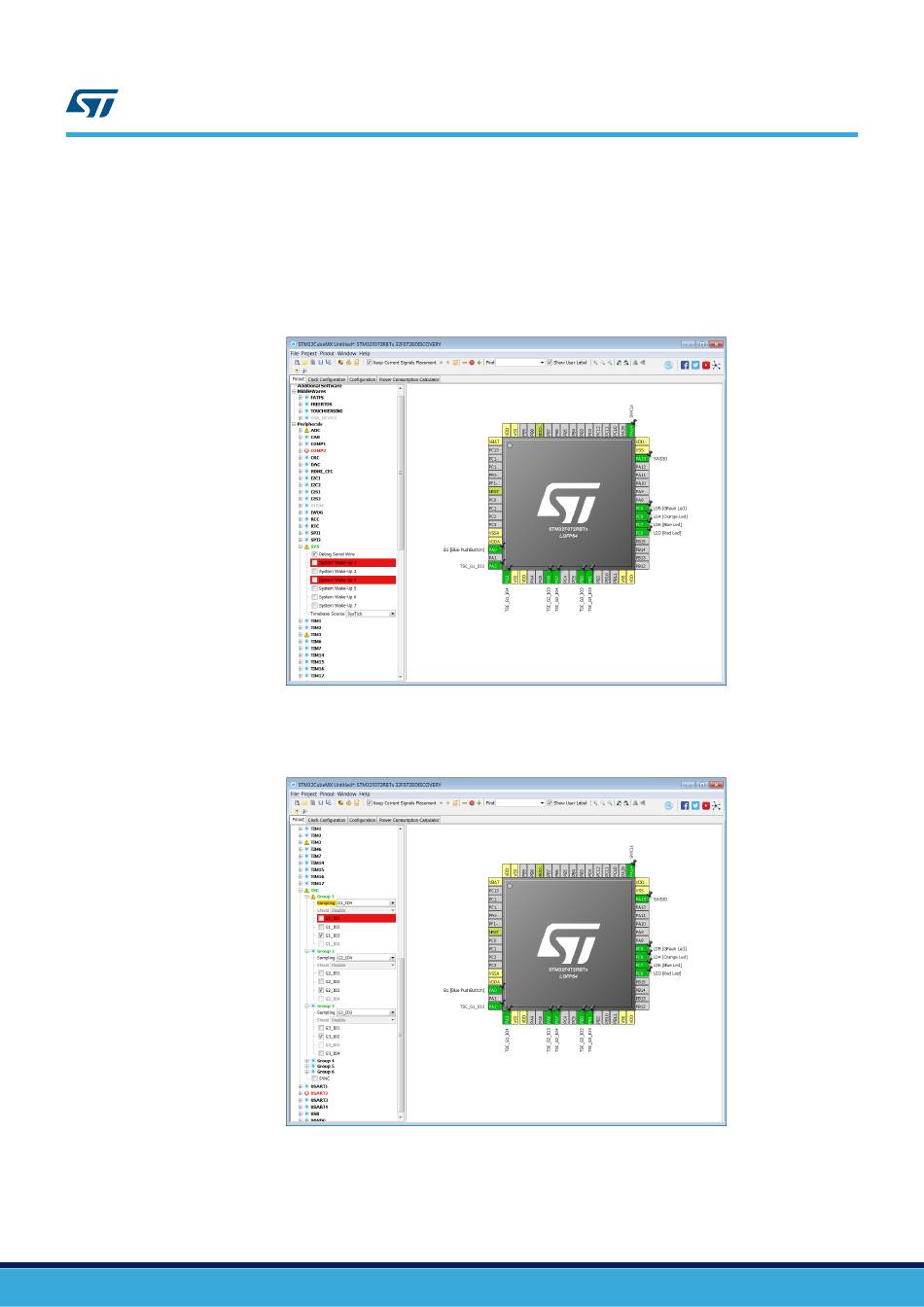

Figure 24. STM32F072B-DISCO pinout SWD
Figure 25.
Figure 25. STM32F072B-DISCO pinout TSC
