WiFi LINK button
This button is used to create or destroy the WiFi link.
Note that the CODEGRIP device must be properly configured and
discoverable over the WiFi network for this option to work (more information
can be found in the Configuration Menu item description, in this chapter).
SCAN DEVICES button
This button will start the scanning process. CODEGRIP Suite will try to
detect all the CODEGRIP devices visible through USB/WiFi interfaces.

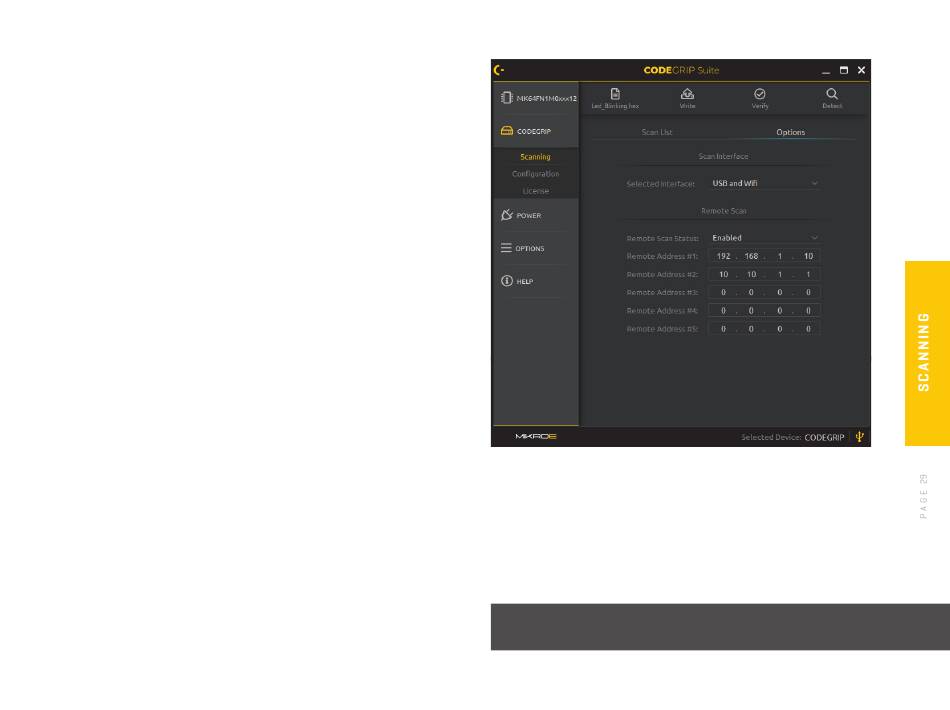

Options tab
This tab is divided into two subsections, labeled as Scan interface and
Remote Scan. Settings which are used to limit the scanning scope,
are located in the Scan Interface subsection, while the Remote Scan
subsection contains settings that can be used to expand the scanning to
CODEGRIP devices located behind the gateway at a remote location. Up to
five IP addresses can be specified in the corresponding fields.
Selected Interface
Options: USB and WiFi, USB only, WiFi only
This option allows limiting the scanning scope to only CODEGRIP devices
which use the interface selected in this dropdown menu.
Remote Scan Status
Options: Enabled, Disabled
If the Enabled option is selected, the IP address from the Remote Address
fields will be included in the device scan process. Otherwise, only the local
network will be scanned.
C O D E G R I P U S E R M A N U A L
Remote Address
The IP address of CODEGRIP devices located outside of local network
can be specified here. CODEGRIP Suite will include this address to send
scan packets, looking for available CODEGRIP devices. Note that when the
Remote Scan is disabled, these fields will become unavailable.
The CODEGRIP device uses the UDP port 49001 and TCP port 49002
for the communication.
