2.5 LED indicators

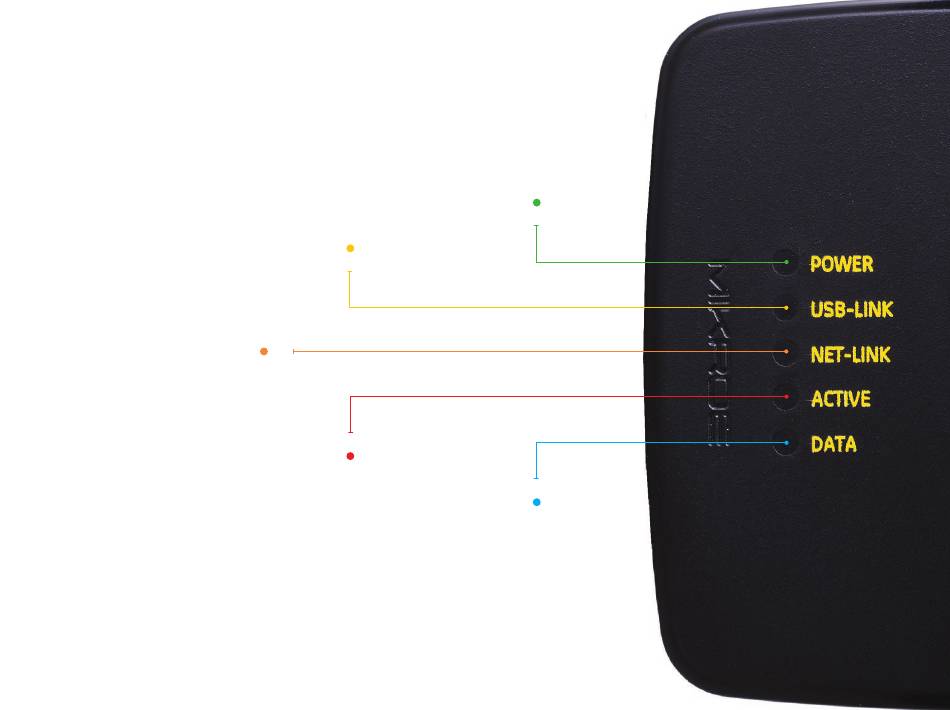

There are five LED indicators on the CODEGRIP device, used to indicate
different states of the device, providing visual feedback to the user.
POWER
Indicates the
presence of
the power
USB-LINK
supply
Indicates that the
connection has been
established via USB
NET-LINK
Indicates that the
connection has been
established via WiFi
ACTIVE
Blinking LED indicates that the
CODEGRIP device is
in the bootloader mode
DATA
Indicates the data
Steady ON LED state indicates
transfer between the
the normal operation of the target MCU and the
CODEGRIP device CODEGRIP device
