ECG Tests

5 Lead ECG Test
Revision A
Maintenance: Checkout Procedures
Perform this test if the monitor acquires 5 lead ECG data.
1. Set up the patient simulator as follows.
Heart rate – 80 bpm.
Heart rate amplitude – 1.0 mV.
5-lead ECG patient cable properly attached.
2x gain for a MarqI, MarqII, or MarqIII simulator.

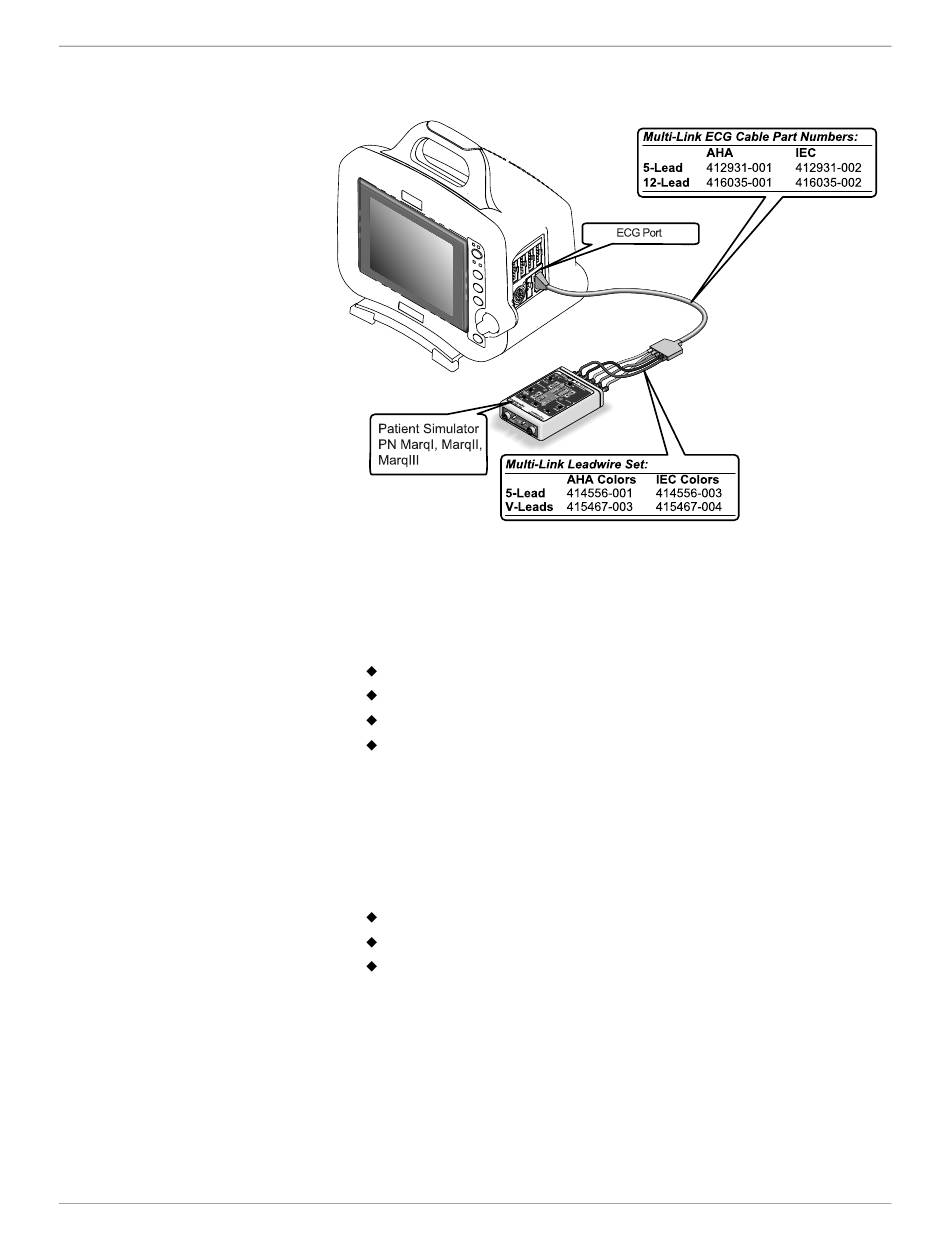

2. Attach the ECG patient cable and ECG leadwire set to the ECG/
RESP connector on the monitor and the leadwire connectors on the
top of the patient simulator.
3. Admit the patient simulator to the monitor.
4. Observe the following:
ECG lead II is displayed and is noise-free,
Heart rate of 80 ±1 bpm is displayed,
With QRS tones enabled, an audible tone sounds with each R-
Wave (QRS complex).
5. Verify all six ECG leads are available to view and are noise-free.
6. Select DETECT PACE and set to PACE 2.
7. Select a pacemaker pulse on the simulator.
Dash 3000/4000 Patient Monitor
2000966-339
015D
4-37
