Summary of Contents for GE EPM 3000P

  • Page 1: Instruction Manual

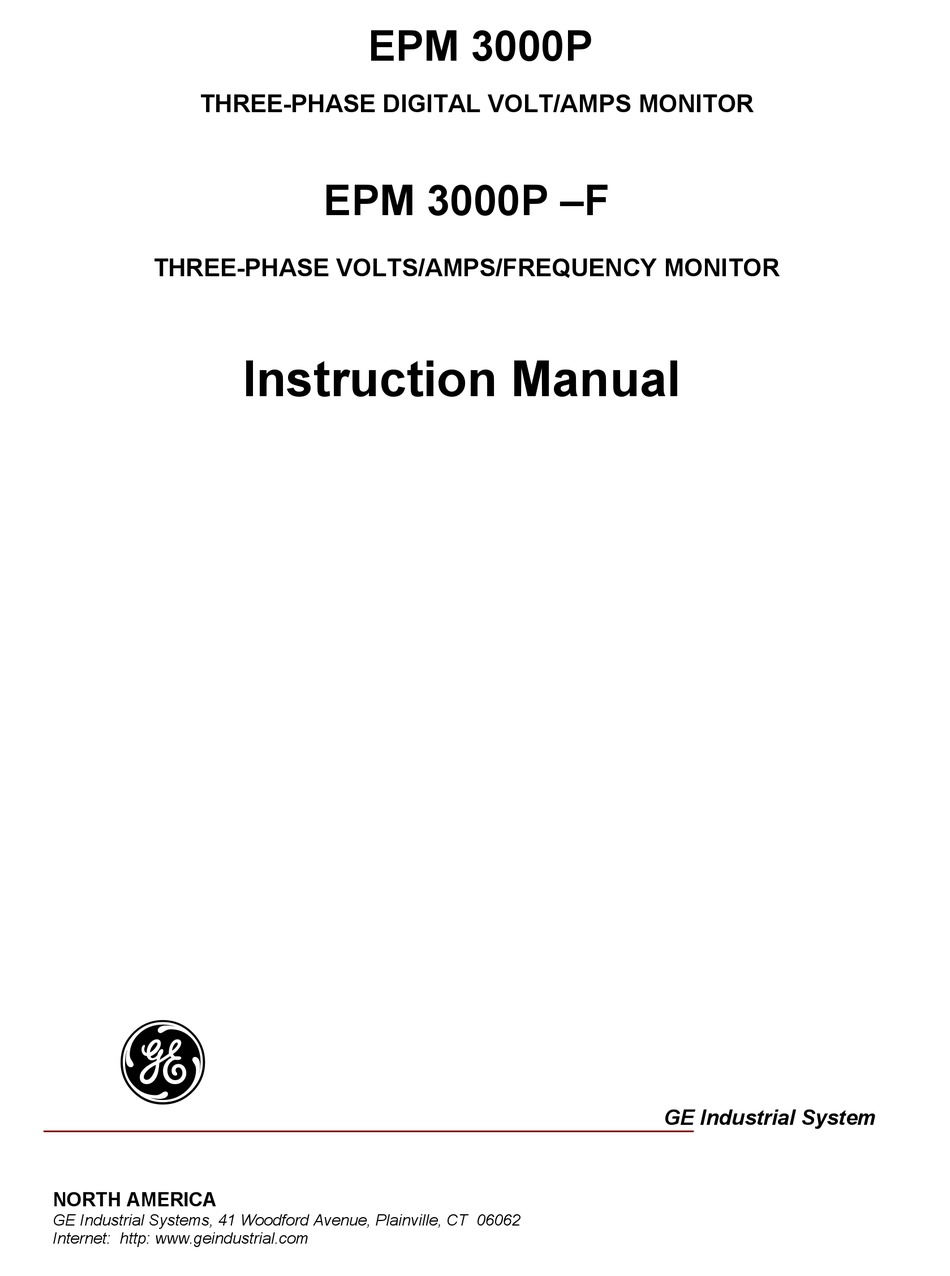

    EPM 3000P THREE-PHASE DIGITAL VOLT/AMPS MONITOR EPM 3000P –F THREE-PHASE VOLTS/AMPS/FREQUENCY MONITOR Instruction Manual GE Industrial System NORTH AMERICA GE Industrial Systems, 41 Woodford Avenue, Plainville, CT 06062 Internet: http: www.geindustrial.com...
  • Page 2 All Rights Reserved. Printed in the United States of America. NORTH AMERICA GE Industrial Systems, 41 Woodford Avenue, Plainville, CT 06062 Internet: http: www.geindustrial.com...

  • Page 3: Customer Service And Support

    For customer or technical assistance, call: 1-888-GE4SERVICE (1-888-434-7378). Product Warranty GE warrants all products to be free from defects in material, workmanship and title and will be of the kind and quality specified in GE’s written description in the manual. The foregoing shall apply only to failures to meet said warranties which appear within one year from the date of shipping.

  • Page 4: Table Of Contents

    Section 4.1 Accessing Max/Min Values 4.2 Resetting Values 4.3 Accessing the LM1/LM2 Set Limits 4.4 Voltage Phase Reversal and Imbalance 4.5 Printing Operating Data 4.6 Printing Programming Data 4.7 Accessing LED Test 4.8 Accessing Firmware Versions NSTALLATION NSTALLATION NSTALLATION VERVIEW GE Industrial Systems...
  • Page 5 11.2 Trip Relay 11.3 Voltage Phase Reversal Detection 11.4 Percentage Voltage Phase Imbalance CHAPTER 12 E XITING THE VERVIEW ROGRAMMING LOBAL ETER ETER ALIBRATION & R IMITS HASE EVERSAL IMITS ELAYS ROGRAMMING GE Industrial Systems ETUP ELAYS & P HASE...

  • Page 6: Mechanical Installation

    Installation of the EPM3000P with K-110 Option for limited space conditions. MAX/MIN LIMITS Diagram 1.2 0.80 4.50 2.425 (4) 8-32 SCREWS 5.00 0.890 4.50 AC VOLTS AC AMPS PRINT PHASE VOLTS AMPS PROG NEXT 4.375 0.890 Standard Installation of the EPM3000P. GE Industrial Systems 36" CABLE 0.336 2.45 0.714...
  • Page 7 (4) 8-32 SCREWS CONNECTOR TOGETHER. 0.80 (2) 8-32 SCREWS WILL LINE UP WITH 2 PEMS ON THE BACK PLATE. 0.198 DIA. 3.375 1.6875 BACK VIEW Standard cutout for EPM3000P. W Port PIN PORT CONNECTOR TO PREVENT PINS FROM BREAKING GE Industrial Systems...
  • Page 8 OWER UPPLY N EARTH TO GROUND CONNECTION TO CHASSIS IS 3). D O NOT GROUND THE UNIT THROUGH THE NEGATIVE OF THE SUFFIXES UFFIX GE Industrial Systems HIS MAY CAUSE HIGH VOLTAGE SUPPLY CURRENT .1 AAC .05 AAC .5 ADC .25 ADC...

  • Page 9: Chapter 2 Electrical Installation

    DELTA. Open Delta can be enabled or disabled in Programming Group 0, Function 3.) Three-Phase, Four-Wire System Wye with Direct Voltage and CTs. Three-Phase, Four-Wire System Wye with CTs and PTs. Single Phase System Dual Phase System PHASES OF CURRENT APPEARS AFTER INSTALLATION GE Industrial Systems IGH NEUTRAL...

  • Page 10: 3-Phase, 3-Wire Delta With Direct Voltage And Cts

    II. Open Delta PT Connection BACK VIEW CONTROL POWER 3-PHASE, 3-WIRE DELTA WITH DIRECT VOLTAGE AND CTs BACK VIEW 10 11 PORT CONTROL POWER 3-PHASE, 3-WIRE OPEN DELTA WITH 2 CTs AND 2 PTs Special programming required. GE Industrial Systems PORT 12 13...

  • Page 11: 3-Phase, 3-Wire Open Delta With 3 Cts And 2 Pts

    IV. Three Phase System BACK VIEW 10 11 PORT POWER 3-PHASE, 3-WIRE OPEN DELTA WITH 3 CTs AND 2 PTs Special programming required. BACK VIEW PORT CONTROL POWER 3-PHASE, 4-WIRE WYE WITH DIRECT VOLTAGE AND CTs GE Industrial Systems 12 13...

  • Page 12: 3-Phase, 4-Wire Wye With Cts And Pts

    V. Three Phase System Wye System with PTs LINE LOAD VI. Single-Phase System BACK VIEW POWER 3-PHASE, 4-WIRE WYE WITH CTs AND PTs BACK VIEW 10 11 PORT POWER SINGLE-PHASE WITH CT AND PT CONNECTION GE Industrial Systems PORT 12 13...

  • Page 13: Vii. Dual-Phase System

    Free ON Relay turns on unless other conditions force it off. Free OFF Relay turns off unless other conditions force it on. BACK VIEW PORT POWER DUAL-PHASE WITH CTs AND Direct Voltage -NL R ELAY PTION WAS ORDERED GE Industrial Systems...
  • Page 14 HE INSTRUMENT CAN BE PROGRAMMED TO DETECT TWO ALARM LEVELS FOR THE FOLLOWING FUNCTIONS LM1/LM2 Voltage AN, BN, CN, AB, BC, CA LM1/LM2 Current A, B, C, N Voltage Imbalance (One level only) Voltage Phase Reversals (One level only) GE Industrial Systems N.O. N.C. ALARM #1 N.O. N.C. ALARM #2...
  • Page 15 CONNECTION FOR DB-9 FEMALE PIN 2 - RECEIVE OF THE HOST/COMPUTER PIN 3 - TRANSMIT OF THE HOST/COMPUTER PIN 5 - GROUND OF THE HOST/COMPUTER 5 4 3 2 1 GE Industrial Systems DETAIL OF DB-9 LAPTOP SHOULD BE CONNECTED...

  • Page 16: Chapter 3 Communication Installation

    RS-485 Hookup Diagram (2 wire) Half Duplex RS-485 Communications Port Model#SF485DB RS-485 UNICOM 2500 (Bottom View Shown) RS-232 Figure 3.2 2-Wire RS-485 Communication Connection Installation Half Duplex NOTE: Communication is supported over Belden 3074F and Belden 9841 cable types. 3000P Instruments (rear view) GE Industrial Systems...
  • Page 17 Figure 3.3 2-Wire RS-485 Communication Connection Installation Half Duplex Detailed View NOTE: Communication is supported over Belden 3074F and Belden 9841 cable types. RS-485 Communications Port Model# SF485DB R+ T+ GE Industrial Systems RS-485 Communications Port Model# SF485DB R+ T+...

  • Page 18: Epm3000P Overview

    VOLTS AMPS LIMITS PROG NEXT Step 2: a. Press PHASE/ NEXT until the desired phase is selected. GE Industrial Systems A GLOWING ANNUNCIATOR INDICATES THE VALUE CURRENTLY DISPLAYED WHEN THE DESIRED FUNCTION IS CHOSEN, THE PHASE/NEXT BUTTON SELECTS THE VOLT AND AMP PHASES.
  • Page 19 Press PHASE/NEXT to commence the Protected reset. The display blanks, three dashes appear in lower display and digits begin scrolling in upper display. The password required is 005. GE Industrial Systems AC VOLTS A B C A B C I I I...
  • Page 20 Step 2: a. Press PHASE/NEXT when the LM1 annunciator glows. The annunciators that glow are out-of-limits in LM1. MBALANCE FROM PERATING GE Industrial Systems AC VOLTS A B C A B C I I I N N N B C A...

  • Page 21: Printing Operating Data

    Upper display indicates a Voltage Phase Imbalance. Limit has been exceeded. OPERATION Print Operating Data LED Test RS485. PERATING DMVA 100 GE Industrial Systems AC VOLTS A B C A B C I I I N N N B C A AC AMPS...

  • Page 22: Printing Programming Data

    PROG NEXT Step 2: The display blanks. a. Press PRINT/PROG until 2 appears. b. Press PHASE/NEXT to select. GE Industrial Systems AC VOLTS A B C A B C I I I N N N B C A i i i...
  • Page 23 PERATING Step 1: a. Disconnect power to the meter. b. Press MAX/MIN/LIMITS upon power up. Upper display indicates the version number. GE Industrial Systems AC VOLTS 8.8.8.8. A B C A B C I I I N N N...

  • Page 24: Section 5.1 How To Use This Portion Of The Manual

    HESE ARE VERY SIMILAR TO DIP SWITCH CONCEPT VERVIEW ANUAL GROUPS, Functions, and Switch PACKS • GROUPS are the main category. • Functions are sub categories of GROUPS. • Switch PACKS are sub categories of Functions. ENTRY WITCH ACKS GE Industrial Systems...

  • Page 25: Programming Mode Entry

    Scrolls groups, functions, and advances to exit point from function and group level. Scrolls packs, digit counters, and changes Switch PACK position UP or DOWN. Activates new data entry, stores digits, and enters or exits from group or function level. NTRY GE Industrial Systems...

  • Page 26: Ntering The

    Digits begin scrolling in upper display. ⌦The password is 555. a. Press PHASE/NEXT each time 5 appears. The selected digits appear in lower display. GE Industrial Systems HAPTER TO EXIT AC VOLTS A B C A B C N N N...

  • Page 27: Communication Baud Rate

    LIMITS Repeat this procedure until new Integration Interval is entered. When complete, lower display indicates new Integration Interval. See Chapter 12 to Exit. GE Industrial Systems AC VOLTS A B C A B C N N N B C A...
  • Page 28 Lower display indicates the current Meter Address. MAX/MIN LIMITS Repeat this procedure until new Address is entered. When complete, lower display indicates new Address. See Chapter 12 to Exit. GE Industrial Services AC VOLTS 0 I. A B C A B C N N N...
  • Page 29 Repeat this procedure until new Communication Baud Rate is entered. When complete, lower display indicates new Baud Rate. See Chapter 12 to Exit. ONFIGURATION GE Industrial Services AC VOLTS A B C A B C I I I N N N...
  • Page 30 Reserved Reserved Reserved Reset Protection Reserved Reserved Reserved Reserved Reserved Relay Control I Relay Control II MUST BE IN THE POSITION GE Industrial Services SEGMENT POSITION Enable DOWN Disable Enable DOWN Disable Enable DOWN Disable Alarm Only DOWN Computer Control & Alarm...
  • Page 31 DOWN for desired setting. b. Press VOLTS to store See Chapter 12 to Exit. 1 & 2 (O ELAY FOR ELAYS PTION GE Industrial Systems AC VOLTS 03.0 A B C A B C N N N B C A...
  • Page 32 2. Enter in GROUP 4, FUNCTION 2, LIMIT 1, Segments: B, C, and D: UP, UP, DOWN. Value: 5.00 3. Enter in GROUP 4, FUNCTION 2, LIMIT 2, Segments: DOWN, UP, DOWN. Value: 4.00 R E S E T ACT AS A PROTECTIVE SWITCH L M 1 L M 2 R E S E T GE Industrial Systems...
  • Page 33 PRINT LIMITS PROG Repeat this procedure until desired value is entered. Lower display indicates the current Time Delay. See Chapter 12 to Exit. GE Industrial Systems AC VOLTS A B C A B C N N N B C A...

  • Page 34: Programming

    Lower display indicates Full Scale setting. A segment appears in upper display. UP signifies - Kilovolts. DOWN signifies - Volts. a. Press VOLTS to begin Data Entry Sequence. GE Industrial Systems & A HANNELS ECIMAL AC VOLTS A B C...
  • Page 35 PROG Repeat this procedure until desired value is entered When complete, lower display indicates new Full Scale setting. See Chapter 12 to Exit. GE Industrial Systems AC VOLTS A B C A B C N N N B C A...
  • Page 36 ) before using any other function in this Group. If the STD.CORR ORMAT FUNCTION ALUE ETTINGS FOR ALIBRATION FULL SCALE SETTING 120V 120V 300V 300V 120V 480V 120V 7.20KV 1000A 5.00KA 2.5A 2.5A GE Industrial Systems ROCEEDING CALIBRATION VALUE 7.20 1000 5.00 2.50...
  • Page 37 LIMITS Step 4: a. Press MAX/MIN/LIMITS to exit calibration sequence. Proceed to calibrate another function, or exit. See Chapter 12 to Exit. EPEAT THIS PROCEDURE FOR GE Industrial Systems & L HANNELS AC VOLTS 2 I. A B C A B C...
  • Page 38 LIMITS PROG Step 4: a. Press MAX/MIN/LIMITS at exit calibration sequence. Proceed to calibrate another function, or exit. See Chapter 12 to Exit. GE Industrial Systems AC VOLTS A B C A B C N N N B C A...
  • Page 39 OLTS AND LM1 SET TO TRIGGER ABOVE 100 AMPS. LM2 SET TO TRIGGER BELOW 50 AMPS. LM2 is triggered LM1 AND LM2 SET LIMITS PHASES DRY CONTACT RELAYS FOR ALARM OR ORMAT FUNCTION Exit Programming GROUP 4 GE Industrial Systems...
  • Page 40 RELAY 1 Digit Up - enabled Digit Down-disabled Digit Up- enabled Digit Down-disabled IS TRIGGERED AND RELAY IS ENABLED GE Industrial Systems AC VOLTS A B C A B C N N N B C A AC AMPS A B C N...
  • Page 41 The Set Above/ Below will be set to below. Trip Relay 1 will be disabled. Trip Relay 2 will be disabled. The Level of the Limit will be set to 000. GE Industrial Systems AC VOLTS A B C A B C...
  • Page 42 Press PHASE/NEXT to check programmed data. d. Press PRINT/PROG TO PROGRAM ANOTHER FUNCTION (refer to Step 2). See Chapter 12 to Exit. GE Industrial Systems AC VOLTS A B C A B C N N N B C A...
  • Page 43 L im its N o t T rig g e re d 1 1 :0 0 A M IMIT ORMAT FUNCTION Voltage Phase Reversal Detection Voltage Phase Imbalance Exit Programming GROUP 7 GE Industrial Systems & P HASE MBALANCE ONDITIONS...
  • Page 44 MAX/MIN PRINT LIMITS PROG 70. appears in upper display. Lower display indicates current settings for Enable/Disable Phase Reversal Detection. GE Industrial Systems AC VOLTS A B C A B C N N N B C A AC AMPS A B C N...
  • Page 45 Press PRINT/PROG twice and 1 appears. c. Press VOLTS to store. NOTE: P PHASE/NEXT RESS NUMBERS AND SEGMENTS ENTERED THE METER DEFAULTS TO GE Industrial Systems AC VOLTS A B C A B C I I I N N N B C A AC AMPS...

  • Page 46: E Xiting The

    NEXT Step 1a: a. Press VOLTS to exit from Function Level to Group Level. XITED THE ROGRAMMING ETER ETURNS TO THE GE Industrial Systems TAGE ARIES AC VOLTS A B C A B C N N N B C A...
