Summary of Contents for Avalue Technology EPC-BYT2

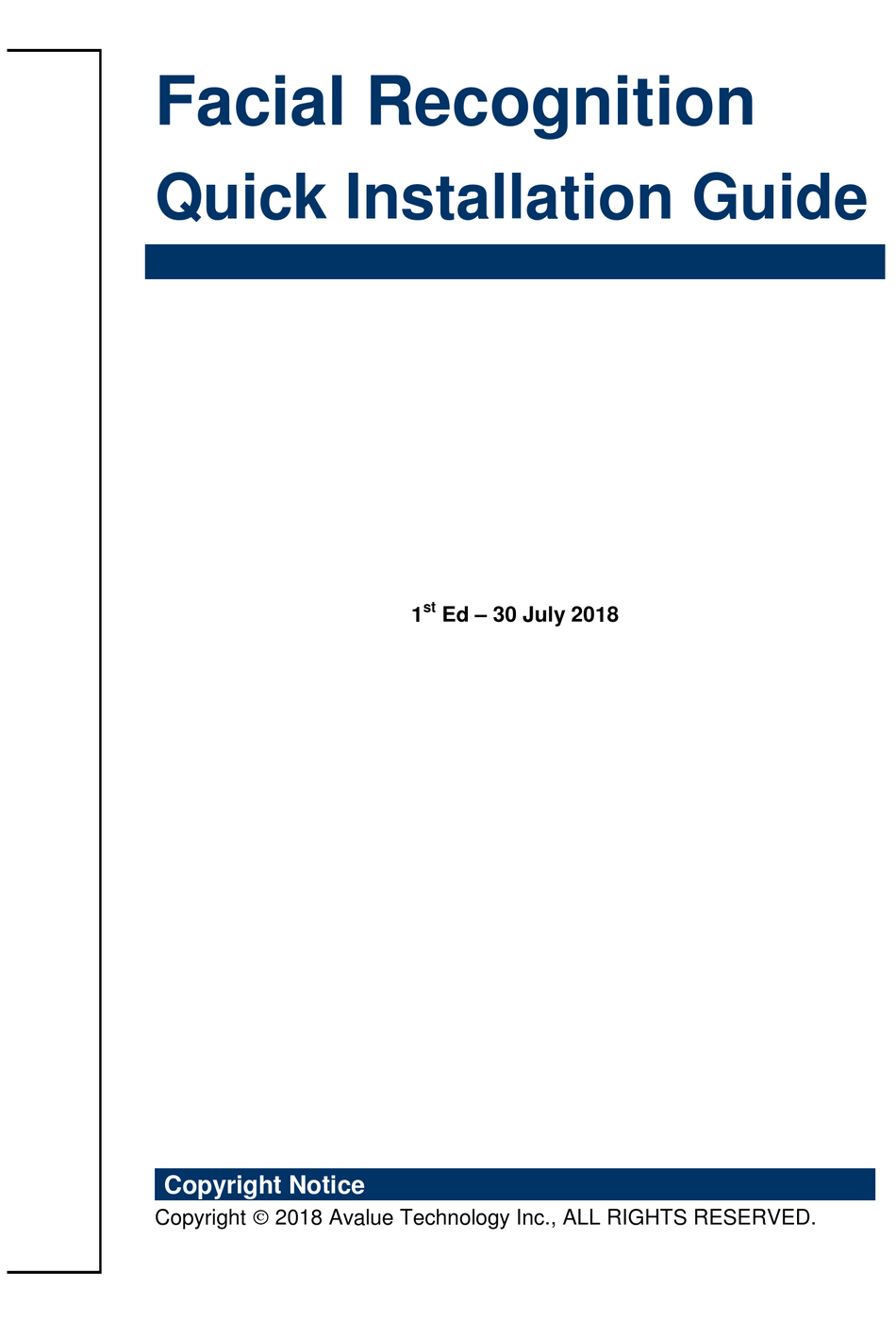

- Page 1 Facial Recognition Quick Installation Guide Ed – 30 July 2018 Copyright Notice Copyright 2018 Avalue Technology Inc., ALL RIGHTS RESERVED.
- Page 2 Facial Recognition FCC Statement THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS "A"...
-
Page 3: Table Of Contents
Quick Installation Guide Content Getting Started ......................4 Safety Precautions ....................4 Packing List ......................4 EPC-BYT2 System Overview ................5 1.3.1 Front View ..........................5 1.3.2 Rear View ..........................5 EPC-BYT2 System Dimensions ................6 1.4.1 Front & Top View ........................6 Renity Signs Setting .................... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x EPC-BYT2 Signage Box Renity Signs Signage Software For Facial Recognition (Pre-loaded) ... -
Page 5: Epc-Byt2 System Overview
Quick Installation Guide 1.3 EPC-BYT2 System Overview 1.3.1 Front View POWER Connectors Label Function Note POWER Power on button 1.3.2 Rear View Connectors Label Function Note COM1 Serial port 1 connector D-sub 9-pin, male HDD indicator RJ-45 Ethernet 1/2 with (L)LED for... -
Page 6: Epc-Byt2 System Dimensions
Facial Recognition 1.4 EPC-BYT2 System Dimensions 1.4.1 Front & Top View (Unit: mm) 6 Facial Recognition Quick Installation Guide... -
Page 7: Renity Signs Setting
Quick Installation Guide 2. Renity Signs Setting Facial Recognition Quick Installation Guide... -
Page 8: Prerequisites Setting
Facial Recognition 2.1 Prerequisites Setting Step1. Connect the power, HDMI (recommended) or VGA and LAN cables of the signage box. 8 Facial Recognition Quick Installation Guide... - Page 9 Quick Installation Guide Step2. Please configure the Device ID As follow description is only suitable for distributors. Otherwise, if end customers change their Device ID and ask us where their data is, we can’t help them. So before shipping, distributors should help customers to set their Device ID on the target device.
- Page 10 Facial Recognition When distributors have entered Device ID, they can click OK button to finish setting. Step3. Please note the IP address of the device When you turn device on, IP address will be shown on the left corner of the screen. 10 Facial Recognition Quick Installation Guide...
- Page 11 Quick Installation Guide Step4. Now we can continue to configure playlist for Facial Recognition. Facial Recognition Quick Installation Guide 11...
-
Page 12: Renity Signs - Content Management System (Cms) Setting
Facial Recognition 2.2 Renity Signs - Content Management System (CMS) Setting Step1. Use a PC in the same networking. Use a browser to connect to CMS The URL should be “https://Device IP Address/”. When you connect to the device via browser, it will show a warning message. Because it is a protected SSL self-signed certificate, just click on “More information”... - Page 13 Quick Installation Guide Step2. Log into CMS Type in Default Username & Password as below and click on “Login”: Username: admin Password: P@ssw0rd (Default Password) Facial Recognition Quick Installation Guide 13...
- Page 14 Facial Recognition Step3. Create the “Playlists” for different gender Click on “Playlists” on the sidebar Step4. Click on “Add Playlist” button to add content 14 Facial Recognition Quick Installation Guide...
- Page 15 Quick Installation Guide Step5. Click on “Select files…” button to choose your playlist file (*.rspkg) and input “Description”, then click on “Upload” button to upload your playlist to CMS. * All palyable contents have to be edited by Renity Content Editor and saved as .rspkg file * For further information, please refer to Renity Signs User’s Manual * You can also download the Renity Content Editor (Windows Version) at Login page Step6.
- Page 16 Facial Recognition Step7. Set display conditions for different gender Click on “Display Conditions” of sidebar. Step8. Click on “Add Condition” button. Step9. Input all necessary information, then click “Save” button to create condition as follow. 16 Facial Recognition Quick Installation Guide...
- Page 17 Quick Installation Guide Step10. Repeat above steps to create all conditions. Step11. Create player schedule for different gender Click on “Player Scheduler” of sidebar. Step12. Click on “Add Event” button to create the default content without any condition. Facial Recognition Quick Installation Guide 17...
- Page 18 Facial Recognition Step13. Click on “Add Event” to create another event. Input all necessary information, then click on “Save” button to create an event. Step14. Repeat above steps to create all events you would like to show. Step15. Event example with one default content and 3 event contents. . 18 Facial Recognition Quick Installation Guide...
- Page 19 Quick Installation Guide Now your device will detect viewers’ gender and play different content (playlist). By the way, in our case, the default content is “Renity Signs Intro”, you can replace it to create your default content. The end, when no one closes to the digital signboard, it will play the default content. When viewers close to the digital signboard, it will recognize face features and play specific content.
-
Page 20: Renity Signs - Srs Account Setting
Facial Recognition 2.3 Renity Signs – SRS Account Setting To look into the BI report of Smart Shelf, you need to setup user account (End customer) for this solution. Please follow the below stpes. Step1. Login SRS system (https://srs.renity.com.tw) using your account. 20 Facial Recognition Quick Installation Guide... - Page 21 Quick Installation Guide Step2. Add Customer Company. Facial Recognition Quick Installation Guide 21...
- Page 22 Facial Recognition Step3. Add Customer Company Service. 22 Facial Recognition Quick Installation Guide...
- Page 23 Quick Installation Guide Step4. Add Customer Store. Facial Recognition Quick Installation Guide 23...
- Page 24 Facial Recognition Step5. Add Contract. 24 Facial Recognition Quick Installation Guide...
- Page 25 Quick Installation Guide Step6. Add Customer Device. Facial Recognition Quick Installation Guide 25...
- Page 26 Facial Recognition Step7. Add Customer User. 26 Facial Recognition Quick Installation Guide...
- Page 27 Quick Installation Guide Step8. Add Customer User Role. Facial Recognition Quick Installation Guide 27...
- Page 28 Facial Recognition Step9. Step8. Add Customer User Store. 28 Facial Recognition Quick Installation Guide...
-
Page 29: Renity Signs - People Counting Report
Quick Installation Guide 2.4 Renity Signs – People Counting Report Step1. Login. Facial Recognition Quick Installation Guide 29... - Page 30 Facial Recognition Step2. People Counting Report. 30 Facial Recognition Quick Installation Guide...
