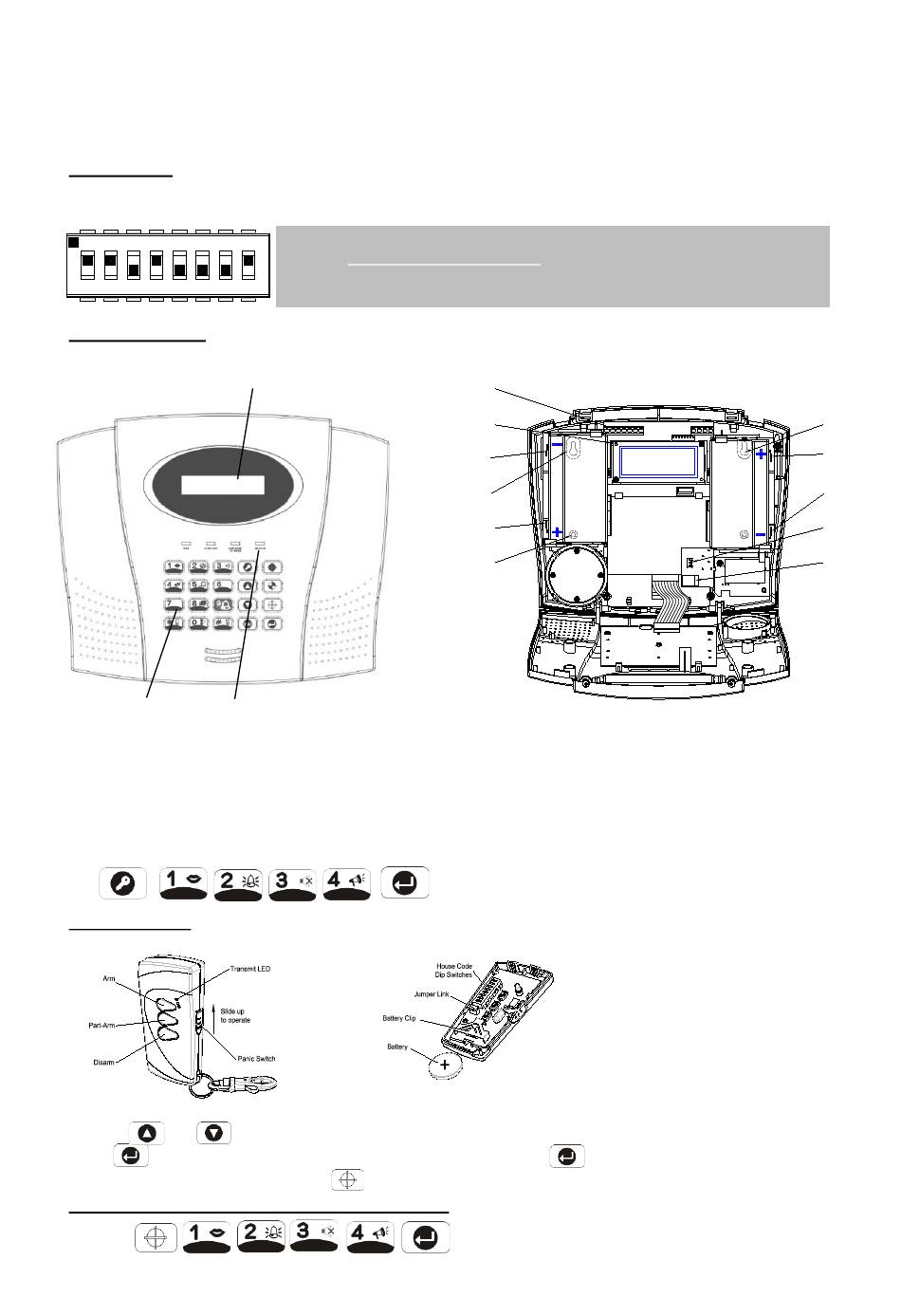

ELRO Pro Alarm System AP5500 Quick Start Manual page 4

Preparing and installing our new ELRO 10 Zone alarm system.
We advise to do the pre work, easily on the table, and install later. First unpack all accessories and
sort the batteries together with the accessories. Unscrew and open all products.
House Code:
All products must be programmed with the same house code. In all accessories (not in the Alarm
panel) you will find a code dipswitch block like in figure:
ON ECE
4 5 7
1 2 3 6
The Alarm Panel:
LCD Display Window
Keypad Status LEDs
Connect battery leads to both back-up batteries: Battery 1 (left): Red lead to +, Blue lead to –, Battery 2
(right): Blue lead to +, Black lead to –ve battery terminal.
If the telephone based functionality is to be used then the Control Panel will need connecting to a
convenient telephone point. Route the cable from the Power Supply Unit up behind, connect the plug to
the DC power socket in the panel. Take care that during installation and testing on the table, the
sabotage switch and the back stays free. Now set the Alarm panel in programming mode, by pressing:
Remote Control:
The Remote Control is used to Arm, Part-Arm 1-2 and Disarm the system, or give a panic alarm.
Use the and buttons to scroll through the menu until '2. SYSTEM SETUP' is displayed.
Press and '2-1 Learn House Code' will be displayed. Press
receive the House code, press the
Testing the Alarm Panel by the Remote Control:
Press:
Create your own personal code, by putting some switches to on,
or off. Be sure that you use the same code in all accessories.
8
on the remote control: house code will be displayed in figures.
Terminal Block
External Tamper
Switch Jumper
Link P51
-ve Terminal
(Blue Lead)
Upper Keyhold
Fixing Hole
+ve Terminal
(Red Lead)
Lower Fixing
Hole
'1 USER SETUP' is displayed.
Insert the 3V (CR2032) battery.
Check if you entered the wished
house code into the remote, same
as in the magnet and the PIR.
We start learning the code to the
Alarm Panel
to put the system in the TEST mode.
again to set the Control Panel to
Upper Keyhole
Fixing Hole
+ve Terminal
(Blue Lead)
-ve Terminal
(Black Lead)
Reset Jumper
Link P1
Power Supply
Jack Socket
