INTRODUCTION

With this wireless camera you can easily secure objects, entrances and terrains both indoors and outdoors. The camera transmits the signal wireless to a receiver, which is placed near a TV, monitor or DVR. The images and sounds of the camera can be easily viewed and recorded in this way. The camera provides night vision through built-in LEDs.

COMPONENTS

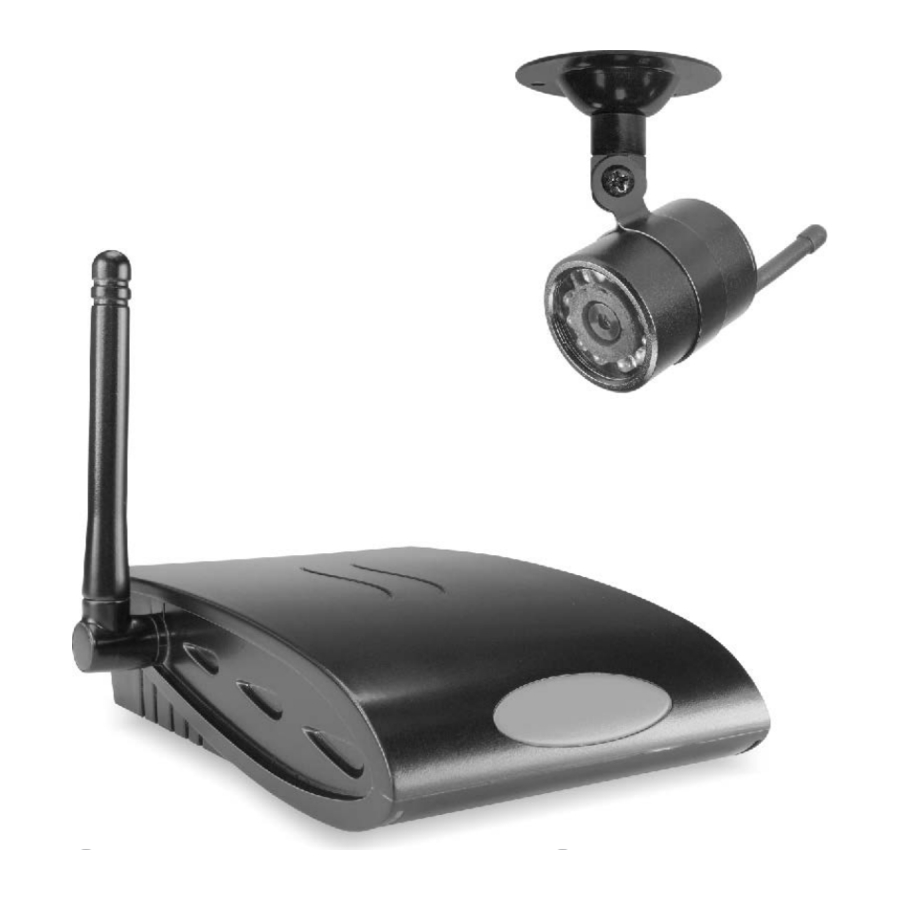

color camera
3-channel receiver
AV cinch connecting cable
AV cinch / scart adaptor
camera adaptor
receiver adaptor

DEVICE

Use a toothpick to set up the desired house code, be sure to keep 1 dipswitch on ON!
Replace the sealing rubber.
Install the camera (a) on the desired place with 3 screws, outside preferably on an unexposed spot.
Connect the adaptor (e).
When the adaptor is placed outside, use tape to seal it.
Secure the wire and plug the adaptor into an outlet (inside).
By turning the camera the image can be put correctly on the screen.

RECEIVER

Select the correct channel (the same code as on the camera). A LED on the display will indicate which channel is being received.
(ch1: left, ch2: middle, ch3: right).
Place the box (b) near a TV, video or DVR.
Connect the adaptor (f) to the receiver.
Use the AV cable (c) to connect the video and audio output to the free AV input of the TV, video or DVR. If necessary, use the AV/scart adaptor (d).

USE

Switch the TV, video or DVR to the correct AV input and the image will be visible.
In case of bad reception, try a different channel or move the receiver elsewhere.
In case of multiple cameras (from different sets) the receiver can switch automatically, give each camera its own channel. Then set 2 or 3 dipswitches on the receiver to ON and the receiver will now show each camera for 5 seconds.

TIPS

Please take care to prevent your light sources from shining directly into the camera lens.
Do not place the receiver directly on or near your TV, VCR or DVR for better reception.
A loud tone informs you that the TV's volume is set too high.
Use a Scart splitter if no spare Scart input is available.

SPECIFICATIONS

Camera	3 channel PAL color 330 lines
Picture sensor	1/3" 628x582 pixels
Frequenty	2,4 Ghz
Transmitting distance	35 till 50m
Night vision	5m (11 IR leds)
Light sensitivity	3 LUX
Operating temp.	-10C° / 50C°
Intercom	one way
Receiver	3 channel
Output	A/V output jack 3,5mm
Camer adapter	7,5V DC 300mA
Receiver adapter	7,5V DC 300mA
