AS80SR11B
Solar Siren
Installation Instructions
General Introduction

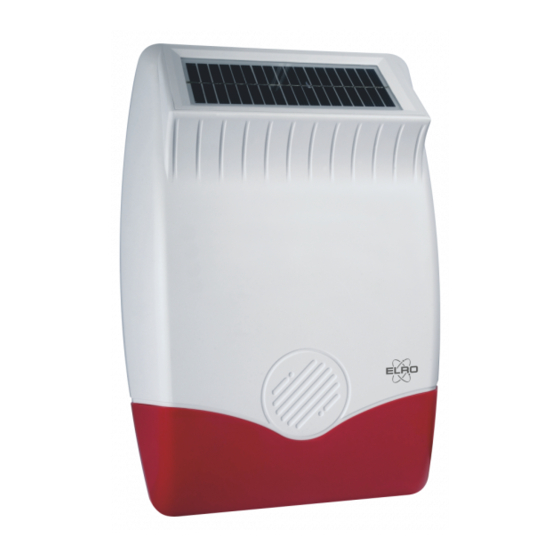

The AS80SR11B is an outdoor siren powered by solar energy and rechargeable
battery. By its visible presence, the external siren indicates that an alarm system is
installed and deters intruders. In case of intrusion, it alerts the neighborhood by its
powerful 110 decibels piercing sound and a flashing red light
Product Overview
FRONT VIEW
Solar Panel
Strobe
light &
red LED
6V 1.2Ahr
rechargeabl
e
battery
9V initial powe
r
up battery
INSIDE VIEW OF SIREN MAIN BODY
(BACK COVER REMOVED)
Control Box –
hidden under
water proof cover
(below)
Control
box
cover
Binding
1. Open up the siren by removing the fixing screw from the bottom edge and carefully
peeling off the back cover. All electronic components are housed within the front
cover.
2. A 9V Alkaline battery is supplied to boost the initial power to the unit when it is first
activated until the Solar Panel charges the main battery. Locate the battery clips of
this 9V battery but do not connect it up yet.
3. Log into the ELRO Smart Home Alarm account from a web browser.
4. Select "System".
5. Select "Add a New Device", then "Solar Siren".
6. The following screen will appear. This means the gateway is entering binding mode.
1
Advertisement
Table of Contents
Related Manuals for ELRO AS80SR11B
Summary of Contents for ELRO AS80SR11B
- Page 1 General Introduction Binding The AS80SR11B is an outdoor siren powered by solar energy and rechargeable 1. Open up the siren by removing the fixing screw from the bottom edge and carefully battery. By its visible presence, the external siren indicates that an alarm system is peeling off the back cover.
-
Page 2: Operation & Testing
Operation & Testing 7. Connect the 9V battery to its battery clips to power up the siren. IMPORTANT: The loud sound level produced by this device will be deafening and cause discomfort to the ear. Place the siren outdoors and do not stand in close proximity to the siren. -
Page 3: Troubleshooting
1. Check if siren has Remove both the battery and follow the steps for binding siren is operating, completed binding Secure back cover using with ELRO Smart Home Alarm two 25mm fixing screws at but it cannot be with Homesys the bottom operated Gateway 1. -
Page 4: Manual Binding
2. Identify the set of jumper links JP1. The settings for each is described below: JP1 Settings With the 9V battery still connected, repeat steps 5 to 6 of the Binding with ELRO Smart Home Alarm section. Press and hold the Link Button for more than 4 seconds until the Strobe LED starts to flash rapidly then release. -
Page 5: Led Table
LED Table The table below describes the LED indication at various stages of Siren operation Status Strobe LED Indication Audible indication Full alarm Strobe light flashes brightly Siren piercing sound Installation is ok LED flashes for 3 seconds (Press tamper switch once after binding) Factory reset...
