ELRO PRO AP55SR11B User Manual

INTRODUCTION ELRO PRO OUTDOOR SOLAR SIREN AP55SR11B:

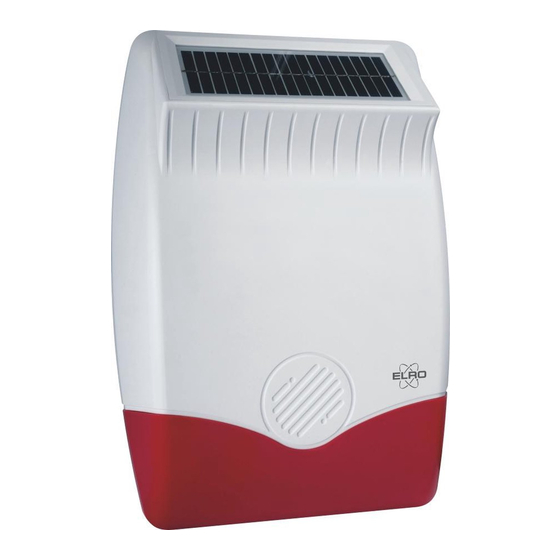

The PRO Outdoor Solar Siren AP55SR11B is designed for use with the ELRO 10-ZONE PRO ALARM
SYSTEM AP5500.

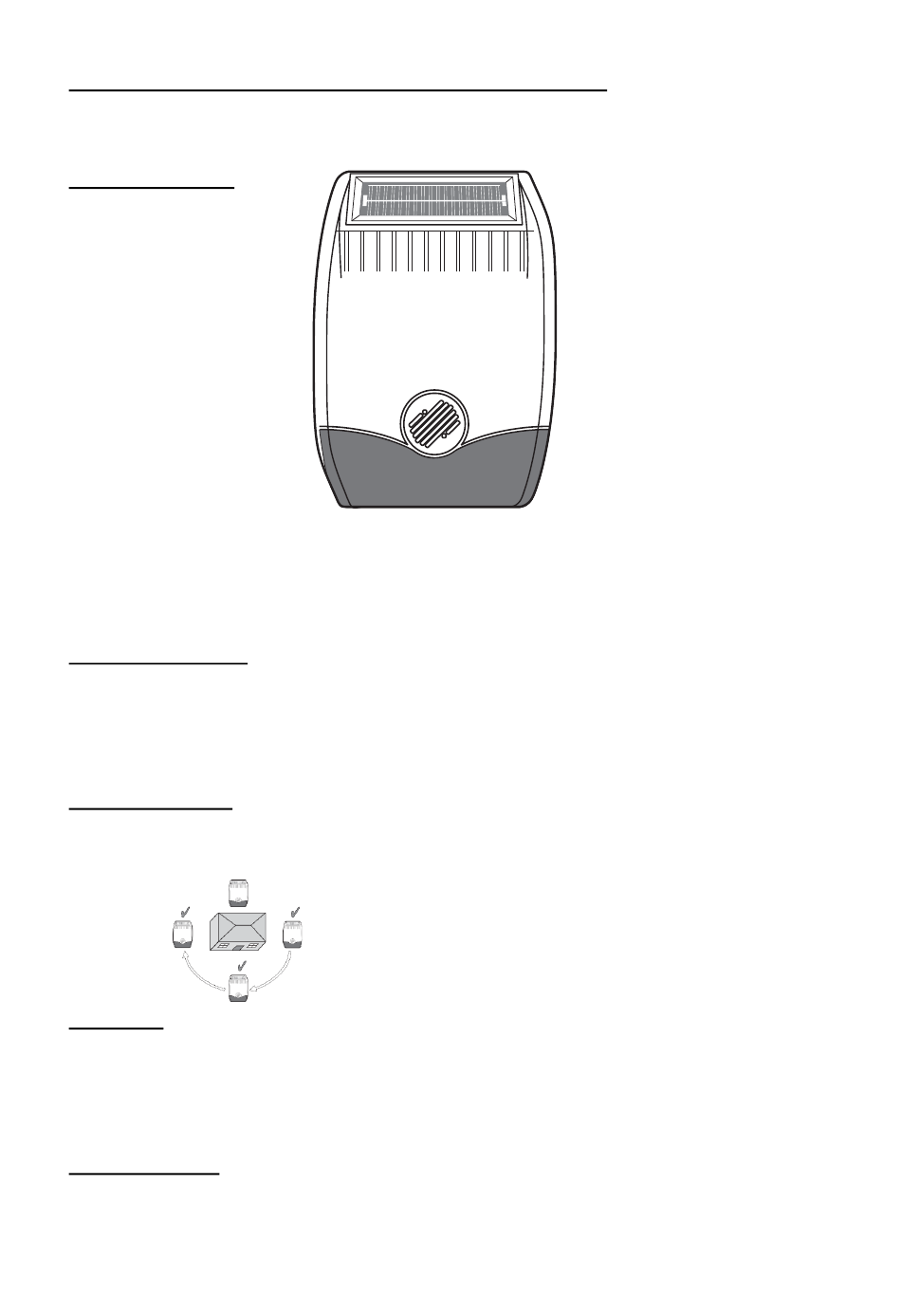

Outdoor Solar Siren:

The Siren, Strobe Lights and Solar Panel are all encapsulated within a tough polycarbonate
housing. This housing provides full protection against adverse weather conditions. All electronic
components i n s i d e are specially treated to ensure long, reliable, trouble free operation and an
integral tamper switch gives maximum security protection to the unit.

Rechargeable Battery:

The Solar Siren is powered by a high capacity rechargeable battery. A Solar Panel mounted on the top
of the housing charges the battery during daylight hours. During darkness, only a small amount of
energy is required to maintain the Solar Siren unit. An Alkaline 9V PP3 battery is supplied in the Siren
& Strobe unit to provide the initial power to the system.

Best place to install:

The Siren & Strobe unit should be fitted to the outside of the building in a position that is clearly
visible and at a height which is relatively inaccessible to an intruder. Avoid shadow from trees
X
West

Installation:

Remove the fixing screw from the base of the housing and carefully hinge off the front cover.
Use the rear back-plate as a template to mark the position of the four fixing holes on the external
wall. Drill four 6mm holes and insert the plastic wall plugs. Mount the back-plate using the four
screws provided

Siren House Code:

Under the DIP switch cover you will find a series of miniature dip switches. When the Siren is
viewed as shown above the dip switches are 'upside down'. Set the dip switches 1-8 to your
house code. And set DIP 9 on OFF for 1 minute and ON for 3 minutes alarm duration! Connect the
9V PP3 initial power-up battery to the clip-on connectors. Connect the rechargeable battery
to the charging leads red to red (+) and black to black (–). Fit the siren and strobe cover to the
north Test if the location where you want to mount the siren is in
East reach of the Alarm Panel !
South
