'TEST MODE – WALK TEST' is displayed.
Press to activate Walk Test.
on the Remote Control; Alarm Panel will beep and the type of the device and button will be on the
display. Press the other buttons on the Remote, as each button is pressed the Alarm Panel will beep
and show the button being pressed on the display. KEEP THE ALARM PANEL IN THE TEST MODE!

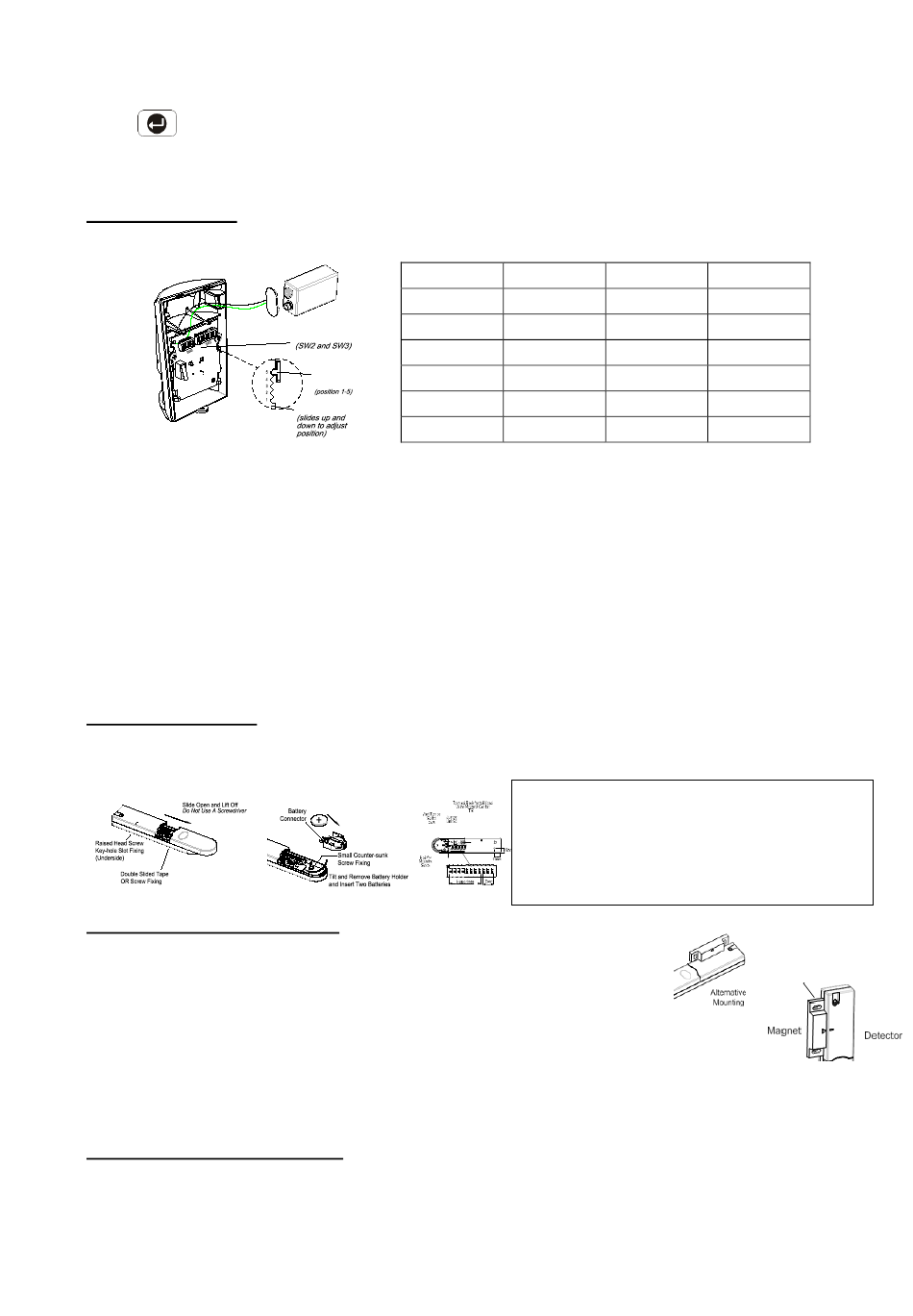

PIR Motion Sensor:
PIR Sensors are designed to detect movement.
Insert the 9 Volt battery. The PIR will warm-up during 2-3 minutes. The LED will flash. When it is ready
the LED stops. First check the house code: SW2; switch 1 – 8 (must be same as Remote Control). You
can divide your detectors over your total home in zones. You can set the alarm zone the PIR detector
will operate on, by switch the dip switches 1, 2 and 3 (of SW3; dipswitch 1-5) in the position according
schedule above. Mark which zone number on the PIR. For walk test mode you put dip 4 of SW3 On.
Don't forget to put back in Off. Test the PIR in the walk test mode. In normal mode the PIR will only send
a mew signal after being triggered after 2 minutes
The PIR sensor incorporates an anti-false alarm for where the Sensor might be affected by e.g. insects,
air temperature etc. We recommend high sensitivity, but in case of affection of (e.c. insects) , you can
adjust dip 5 of SW3 to Off: low sensitivity detection!
Door/window magnet:
The Magnetic Contact consists of two parts; a Detector and a Magnet. They are designed to be fitted
to doors or windows with the Magnet mounted on the moving/opening part.
Mounting the door/wind magnet:
Decide which doors/windows are to be protected by fitting Magnetic
Contact Detectors, (usually the front and back doors. Additional detectors
may also be fitted where required to other vulnerable doors or windows,
(e.g. garage, patio/conservatory doors etc).Ensure that the position selected
for the Magnetic Contact detector is within effective range of the Control Panel, (refer to
'Testing the Control Panel & Remote Control'). Remove the battery holder, and mount the
detector using either the adhesive tape or screws. Fit the Magnet to the moving part of the door/window
opposite the Detector. Ensure that the parallel gap between the Magnet and Detector is less than 10mm
and that the arrow on the Magnet is pointing towards and aligned with the mark on the Detector.
Mounting the PIR motion sensor:
Household pets should not be allowed into an area protected by a PIR detector! Do not locate the
detector facing a window facing direct
conservatories. Do not locate the detector where it is exposed to ventilators. Do not locate the detector
' Walk Test Waiting...' is displayed. Press the 'ARM' button
Zone 1
Zone 2
Dip Switches
Zone 3
PCB Position
Zone 4
Indicator
Zone 5
PCB Board
Zone 6
O
1 2
sunlight.
DIP 1 DIP 2
OFF OFF
OFF OFF
OFF ON
OFF ON
ON OFF
ON OFF
Open the sensor, take out the battery
connector, and place the battery! Check the
house code; same as PIR and Remote Dip 1-
8 from 1-12. Select the Zone you want: setting
Dip 9-11 according the overview at the PIR.
E
3
Mark the Zone number on the magnet.
PIR Detectors are not suitable for use in
DIP 3
OFF
ON
OFF
ON
OFF
ON
